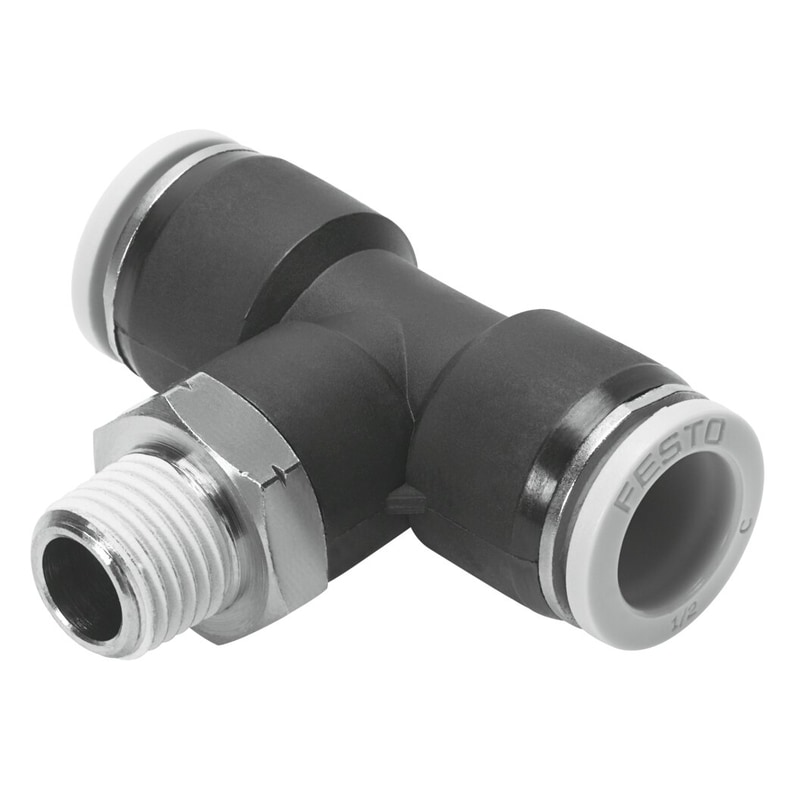

push-in T-fitting QBT-3/8-1/4-U 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=0,177 “, Type of seal on screw-in stud=coating, Assembly position=Any, Design structure=Push/pull principle
| Fitting Type | Male Branch Tee |
|---|---|
| Size | Standard |
| Nominal size | 0.177 “ |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-13.8 … 145 Psi |
| Temperature dependent operating pressure | ‘-13.8 … 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | 32 … 140 °F |
| Max. tightening torque | 16.226 ft-lbf |
| Product weight | 1.496 oz |
| connection 1Â | Male thread NPT3/8-18 |
| connection 2Â | 1/4″ outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | Nickel-plated brassPBT |
| Material of threaded seal | PTFE |
