QBT-1/8-5/16-U (Pack of 5)

$29.25

SKU: 533312
UNSPSC: 27131613
GTIN:
Sold in Pack of 5

SKU: 533312 Category: Tags: ,
Festo

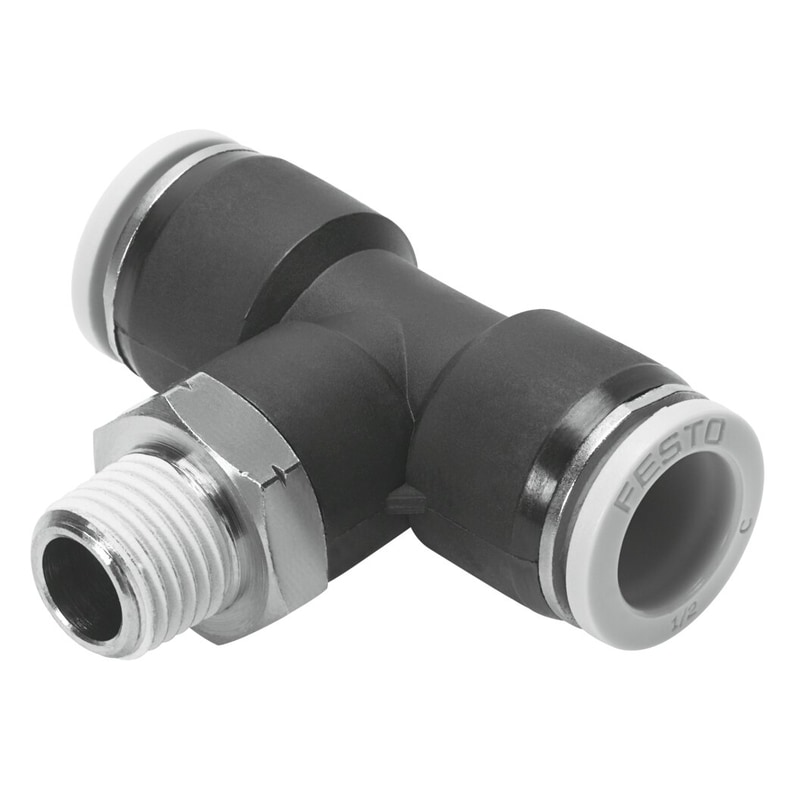

push-in T-fitting QBT-1/8-5/16-U 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=0,236 “, Type of seal on screw-in stud=coating, Assembly position=Any, Design structure=Push/pull principle

Fitting Type Male Branch Tee
Size  Standard
Nominal size  0.236 “
Type of seal on screw-in stud  coating
Assembly position  Any
Design structure  Push/pull principle
Operating pressure complete temperature range  ‘-13.8 … 145 Psi
Temperature dependent operating pressure  ‘-13.8 … 145 Psi
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium  Lubricated operation possible
Corrosion resistance classification CRC  1 – Low corrosion stress
Ambient temperature  32 … 140 °F
Max. tightening torque  5.163 ft-lbf
Product weight  0.79 oz
connection 1  Male thread NPT1/8-27
connection 2  5/16″ outside diameter, for tubing
Colour of release ring  Grey
Materials note  Contains PWIS substancesConforms to RoHS
Material housing  Nickel-plated brassPBT
Material of threaded seal  PTFE
Fitting Type

Male Branch Tee

Size

Standard

Nominal size

0.236 "

Type of seal on screw-in stud

coating

Assembly position

Any

Design structure

Push/pull principle

Operating pressure complete temperature range

-13.8 … 145 Psi

Temperature dependent operating pressure

-13.8 … 145 Psi

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]

Note on operating and pilot medium

Lubricated operation possible

Corrosion resistance classification CRC

1 – Low corrosion stress

Ambient temperature

32 … 140 °F

Max. tightening torque

5.163 ft-lbf

Product weight

0.79 oz

connection 1

Male thread NPT1/8-27

connection 2

5/16" outside diameter, for tubing

Colour of release ring

Grey

Materials note

Contains PWIS substancesConforms to RoHS

Material housing

Nickel-plated brassPBT

Material of threaded seal

PTFE
