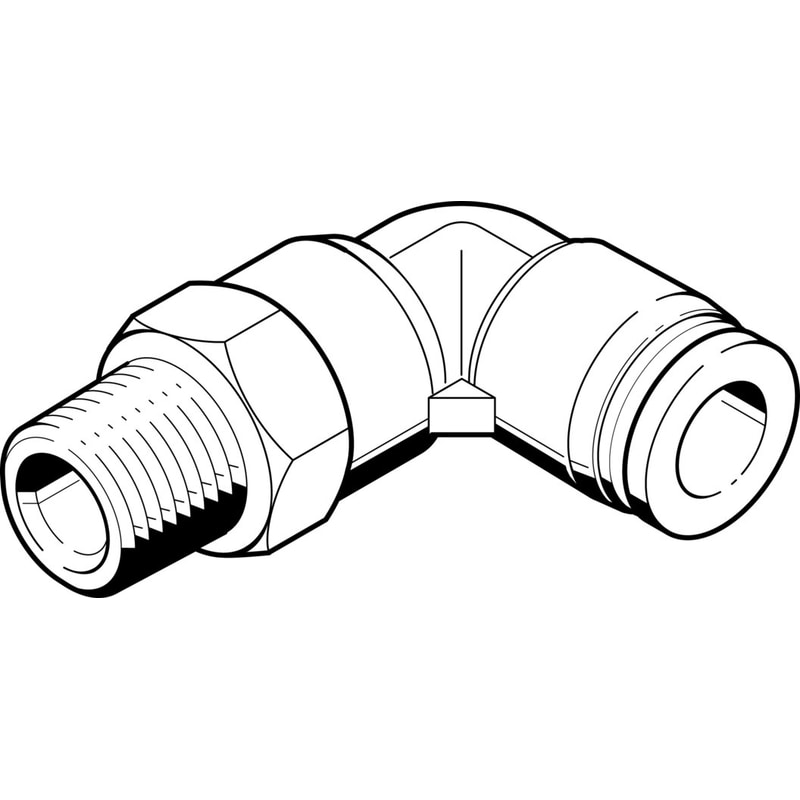

push-in L-fitting QBL-1/4-3/16-U-M 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=0,118 “, Type of seal on screw-in stud=coating, Operating pressure complete temperature range=0 – 145 Psi, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Fitting Type | Male Elbow |
|---|---|
| Size | Standard |
| Nominal size | 0.118 “ |
| Type of seal on screw-in stud | coating |
| Operating pressure complete temperature range | 0 … 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | 32 … 140 °F |
| Maritime classification | see certificate |
| Product weight | 0.557 oz |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material of threaded seal | NBR |
| Material release ring | POM |
| Material of tube retaining claw | High alloy steel, non-corrosive |
