Name: Soft-start valve MS6N-DL-3/8
Brand: Festo
SKU: 532025
Availability: InStock

soft-start valve MS6N-DL-3/8 Pneumatic, for gradual pressure build-up, direction of flow: from left to right. Exhaust-air function=throttleable, Type of actuation=pneumatic, Assembly position=Any, Manual override=None, Design structure=Piston seat

Exhaust-air function	throttleable
Type of actuation	pneumatic
Assembly position	Any
Manual override	None
Design structure	Piston seat
Type of reset	mechanical spring
Type of piloting	direct
Pilot air supply	external
Flow direction	non reversible
Valve function	43498
Operating pressure	4 … 18 bar
b value	0.48
C value	21.05 l/sbar

Weight	1.543677 lbs
Dimensions	8.070866 × 4.133858 × 3.149606 in
Exhaust air function	With flow control option
Actuation type	Pneumatic
Mounting position	Any
Manual override	None
Structural design	Piston seat
Reset method	Mechanical spring
Type of control	Direct
Pilot air supply port	External
Flow direction	Non-reversible

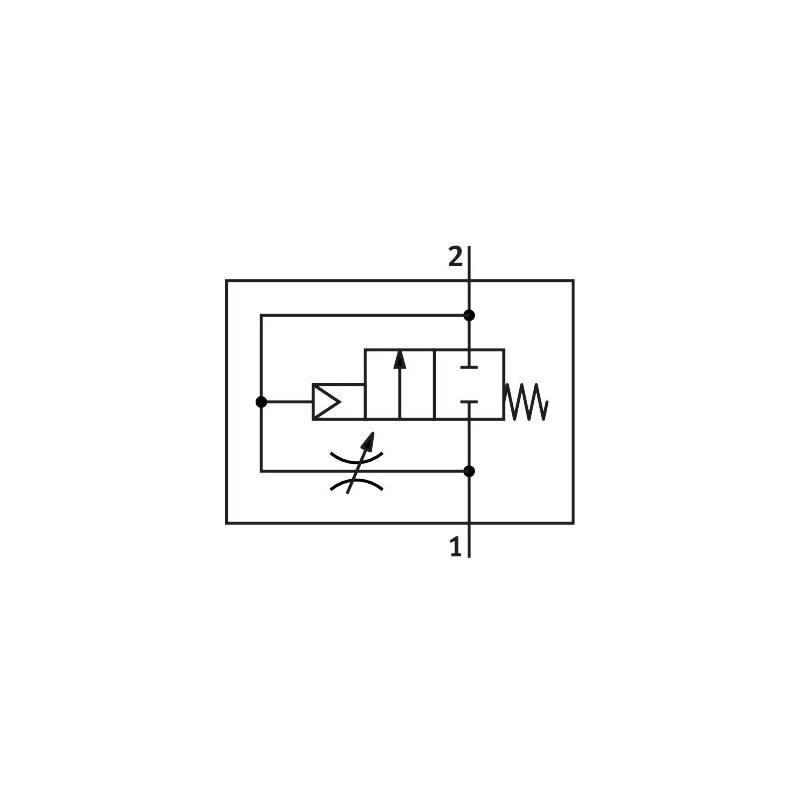

Symbol	00991513
Valve Function	2/2
Operating pressure	4 bar … 18 bar
b-value	0.48
C value	21.05 l/sbar
Normal nominal flow rate (normalized to DIN 1343)	5050 l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] \| Inert gas
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L
For use in the food industry	See supplementary material information
Temperature of medium	-10 °C … 60 °C
Ambient temperature	-10 °C … 60 °C
Product weight	650 g
Type of mounting	With accessories
Pneumatic connection 1	3/8 NPT
Pneumatic connection 2	3/8 NPT
Note on materials	RoHS-compliant
Seals material	NBR
Housing material	Die-cast aluminum
