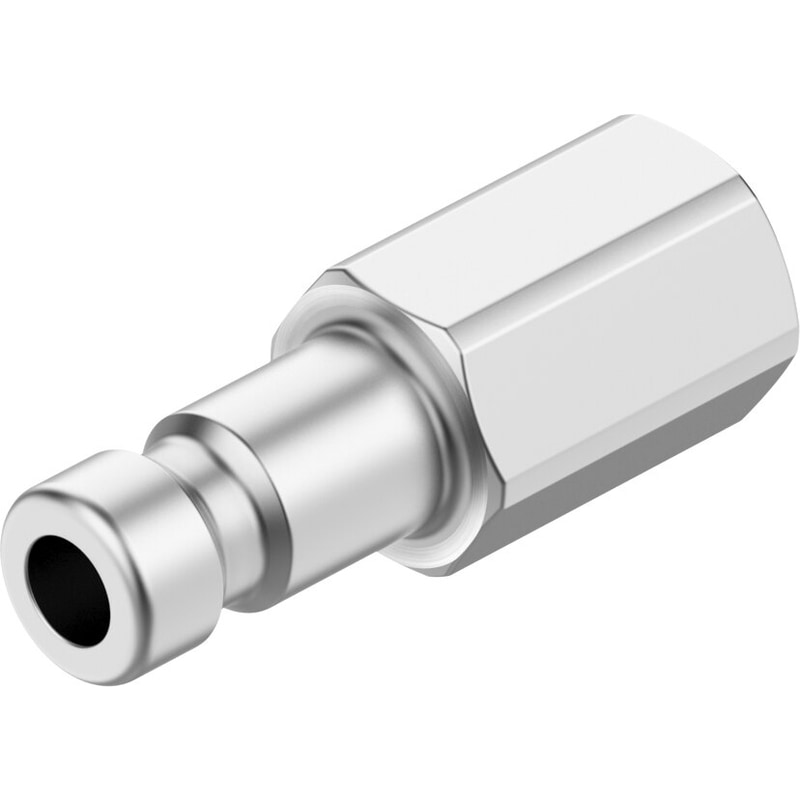

quick coupling plug KS2-M5-I For self-closing quick coupling connectors. Nominal size=2,7 mm, Operating pressure complete temperature range=-0,95 – 12 bar, Standard nominal flow rate=135 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
| Fitting Type | Coupling Plug |
|---|---|
| Nominal size | 2.7 mm |
| Operating pressure complete temperature range | ‘-0.95 … 12 bar |
| Standard nominal flow rate | 135 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-10 … 80 °C |
| Nominal tightening torque | 0.85 Nm |
| Tolerance for nominal tightening torque | ± 15 % |
| Product weight | 5 g |
| connection 1Â | Female thread M5 |
| Materials note | Conforms to RoHS |
