MS6N-LF-1/2-ERV
MS6N-LF-1/2-ERV - Image 2
MS6N-LF-1/2-ERV - Image 3

MS6N-LF-1/2-ERV

$80.59

SKU: 531514
UNSPSC: 40161505
GTIN:

Warehouse 1*: 0 in stock

Warehouse 2: Available

- +
SKU: 531514 Category: Tag:
MS6-LF-NPT_ENUS.PDF
Brand:

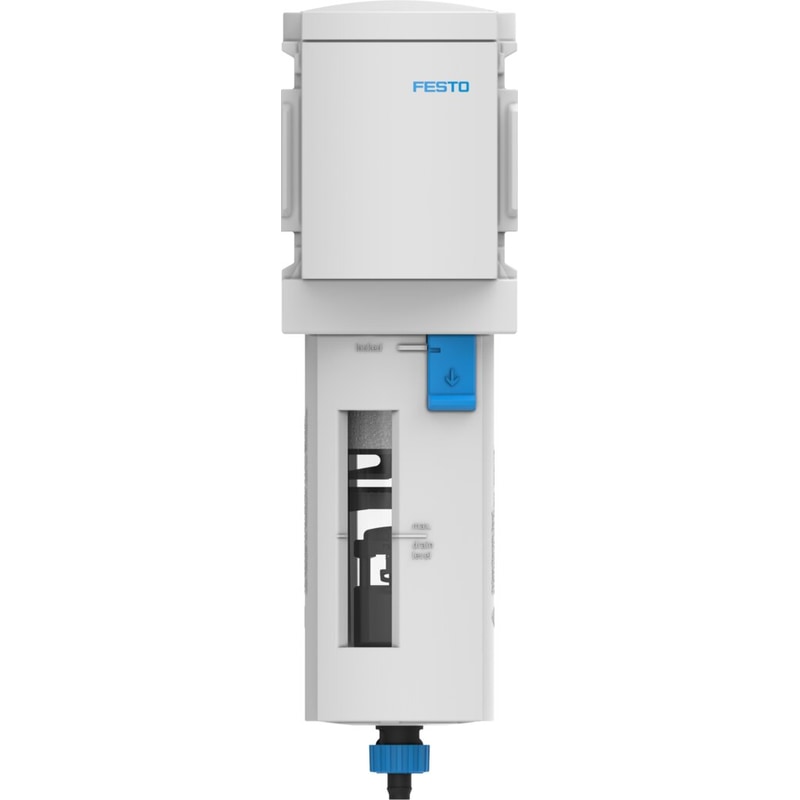

filter MS6N-LF-1/2-ERV 40 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size=6, Series=MS, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm, Condensate drain=fully automatic

Size  6
Series  MS
Assembly position  Vertical +/- 5°
Grade of filtration  40 µm
Condensate drain  fully automatic
Design structure  Sintered filter with centrifugal separator
Max. condensate volume  38 cm3
Bowl guard  Plastic guard
Operating pressure  2 … 12 bar
Standard nominal flow rate  4,100 l/min
Operating medium  Compressed air to ISO 8573-1:2010 [7:9:-]Inert gases
Corrosion resistance classification CRC  2 – Moderate corrosion stress
Storage temperature  ‘-10 … 60 °C
Weight 1.640394 lbs
Dimensions 9.448819 × 3.937008 × 3.149606 in
Size

6
Series

MS
Mounting position

Vertical +/- 5°
Grade of filtration

40 µm
Condensate drain

Fully automatic, Manual, non-detenting
Structural design

Sinter filter with centrifugal separator
Bowl guard

Plastic bowl guard
Degree of condensate separation

>75 %
Symbol

00991520
Operating pressure

2 bar … 12 bar
Normal nominal flow rate (normalized to DIN 1343)

4100 l/min
Operating medium

Compressed air as per ISO 8573-1:2010 [7:9:-], Inert gas
Corrosion resistance class (CRC)

2 – Moderate corrosion stress
LABS (PWIS) conformity

VDMA24364-B1/B2-L
Storage temperature

-10 °C … 60 °C
For use in the food industry

See supplementary material information
Air quality class at the output

Compressed air as per ISO 8573-1:2010 [7:8:4]
Temperature of medium

-10 °C … 60 °C
Ambient temperature

-10 °C … 60 °C
Pore size

<40 µm
Product weight

600 g
Type of mounting

With accessories
Pneumatic connection 1

1/2 NPT
Pneumatic connection 2

1/2 NPT
Note on materials

RoHS-compliant
Seals material

NBR
Compressed air filter material

PE
Housing material

Die-cast aluminum
Material of bowl

PC
Separating disc material

POM
