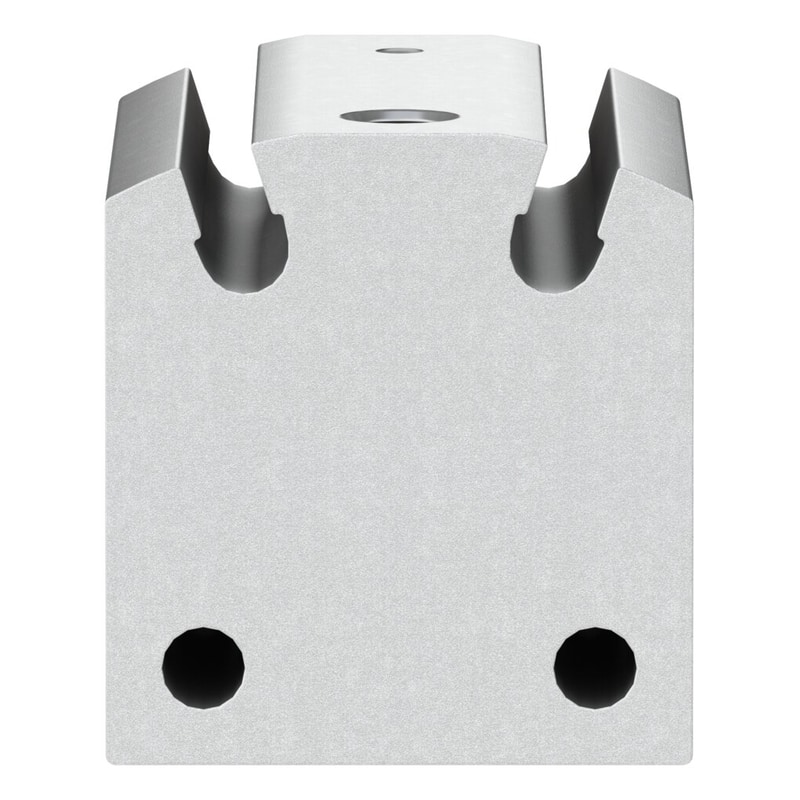

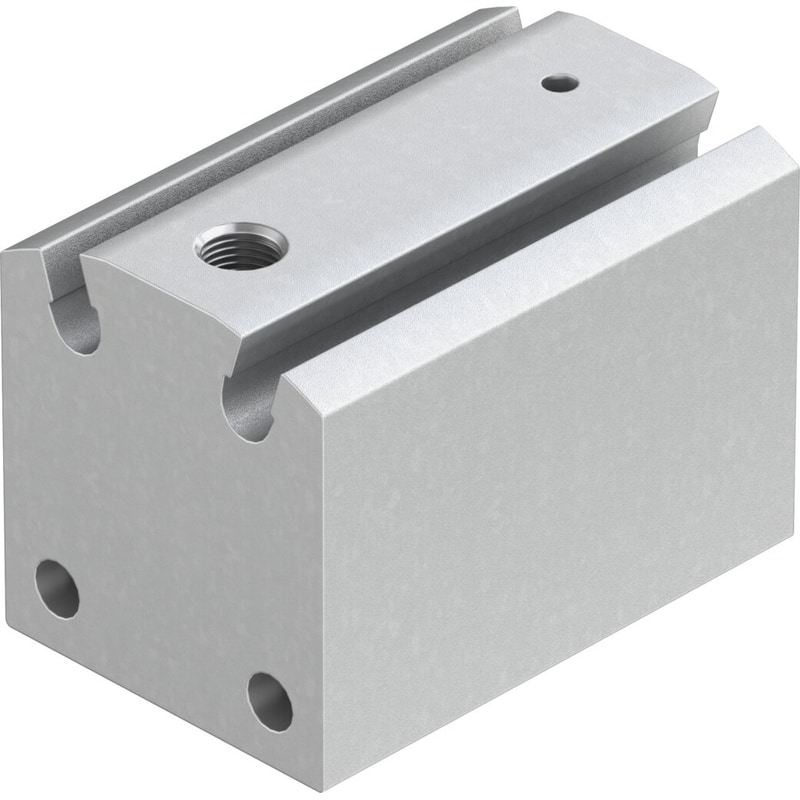

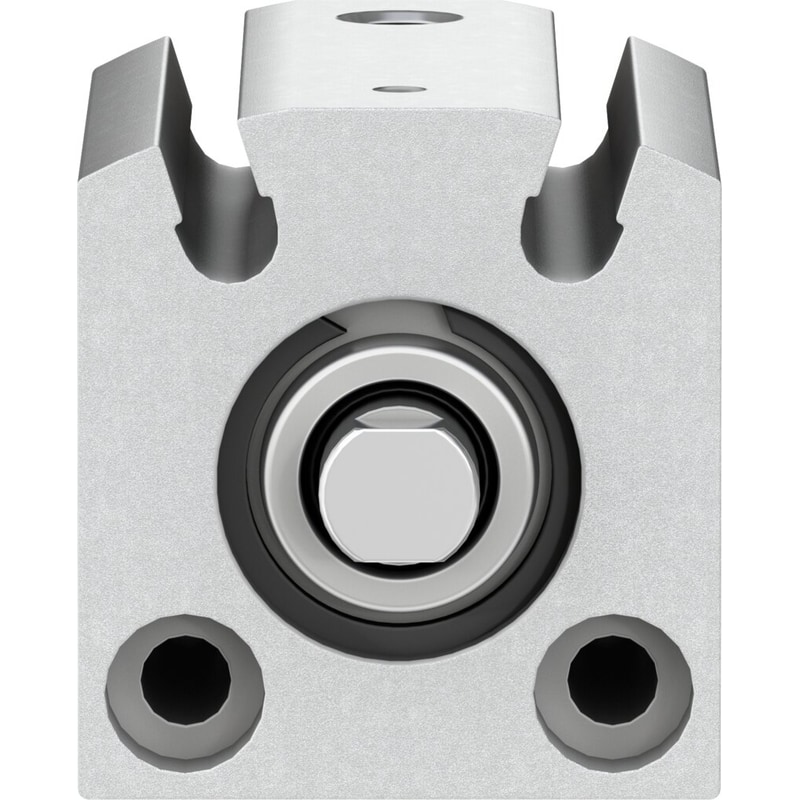

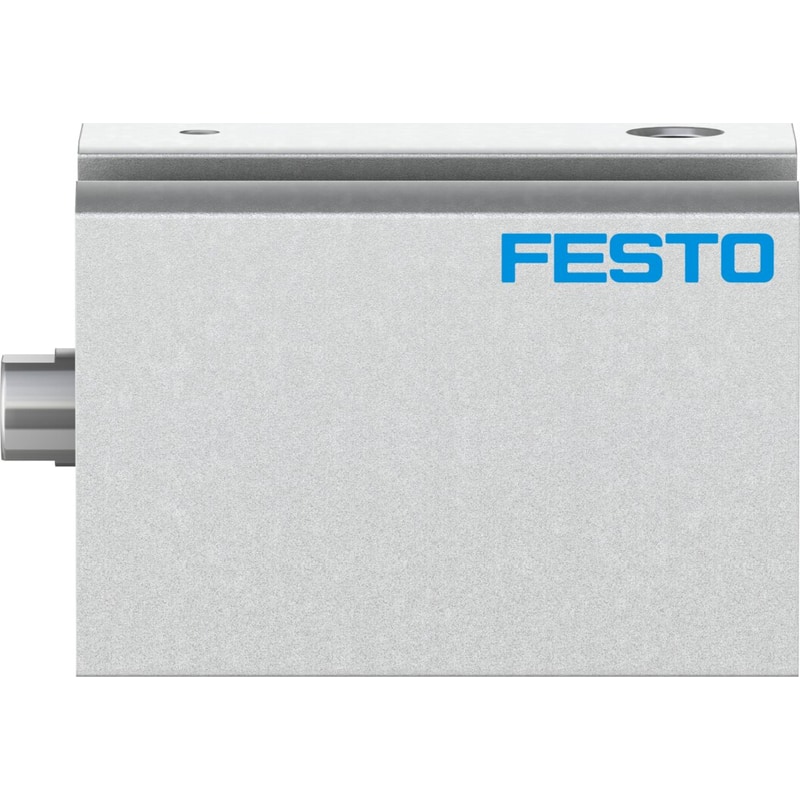

AEVC-12-5-P-A

$55.45

SKU: 530570
UNSPSC: 31251504
GTIN: 4052568085841

SKU: 530570 Category: Tag:
Festo

short-stroke cylinder AEVC-12-5-P-A Without thread on piston rod Stroke=5 mm, Piston diameter=12 mm, Spring return force, retracted=4 N, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any

Stroke 5 mm
Piston diameter 12 mm
Spring return force, retracted  4 N
Cushioning  P: Flexible cushioning rings/plates at both ends
Assembly position  Any
Mode of operation single-actingpushing action
Design structure  PistonPiston rod
Position detection  For proximity sensor
Operating pressure  1.5 … 10 bar
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium  Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC  1 – Low corrosion stress
Ambient temperature  ‘-20 … 80 °C
Stroke

5 mm

Piston diameter

12 mm

Spring return force, retracted

4 N

Cushioning

P: Flexible cushioning rings/plates at both ends

Assembly position

Any

Mode of operation

single-actingpushing action

Design structure

PistonPiston rod

Position detection

For proximity sensor

Operating pressure

1.5 … 10 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)

Corrosion resistance classification CRC

1 – Low corrosion stress

Ambient temperature

-20 … 80 °C
