MS6-DL

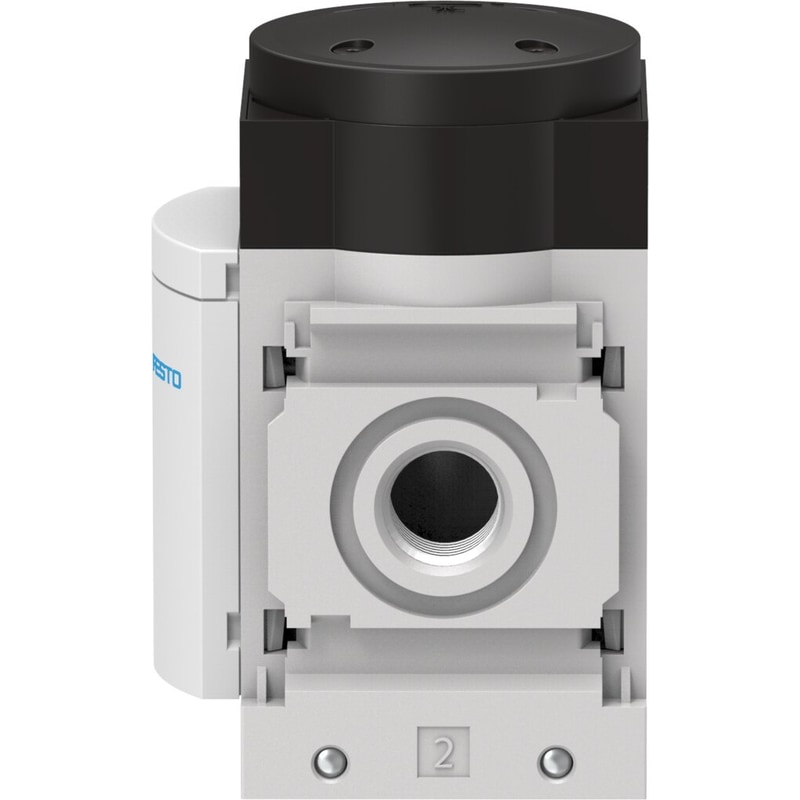

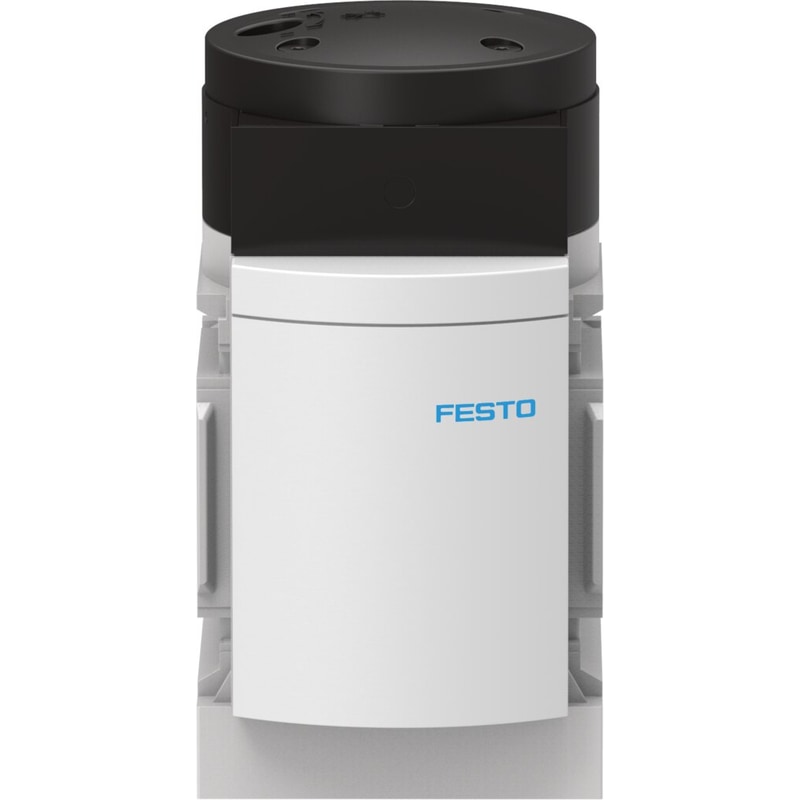

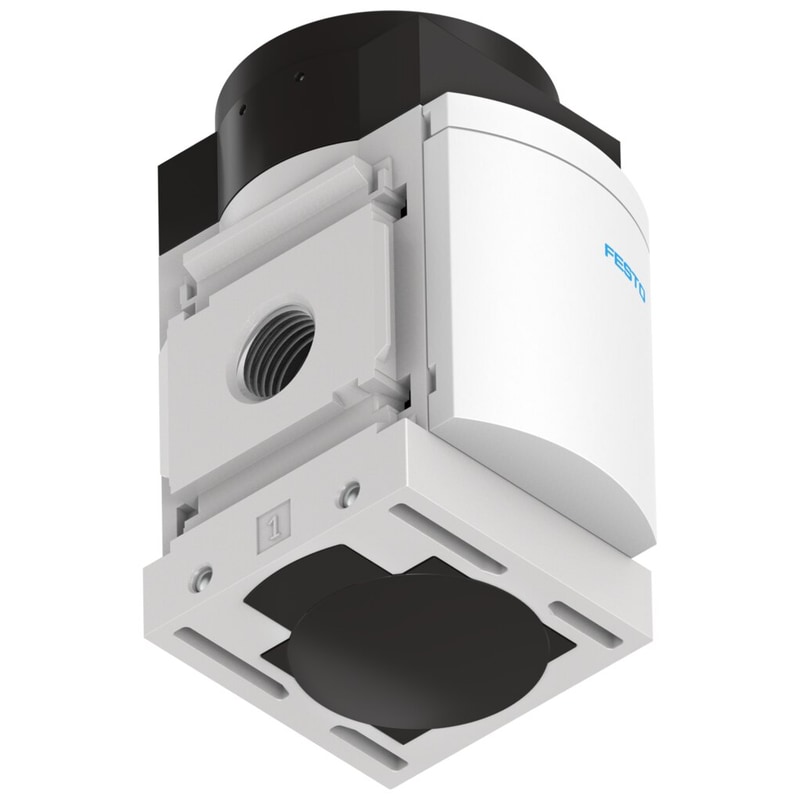

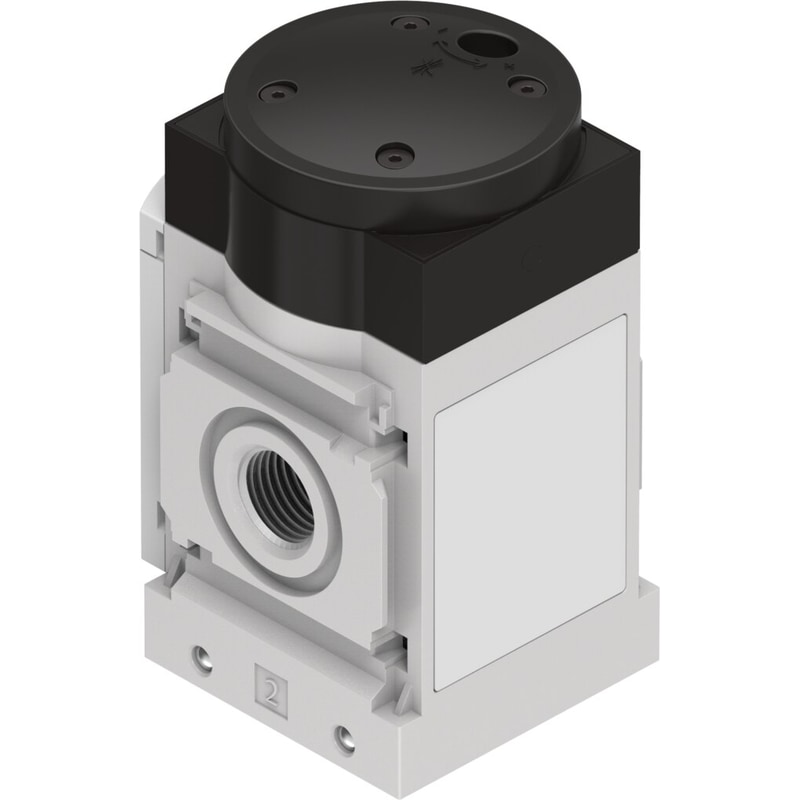

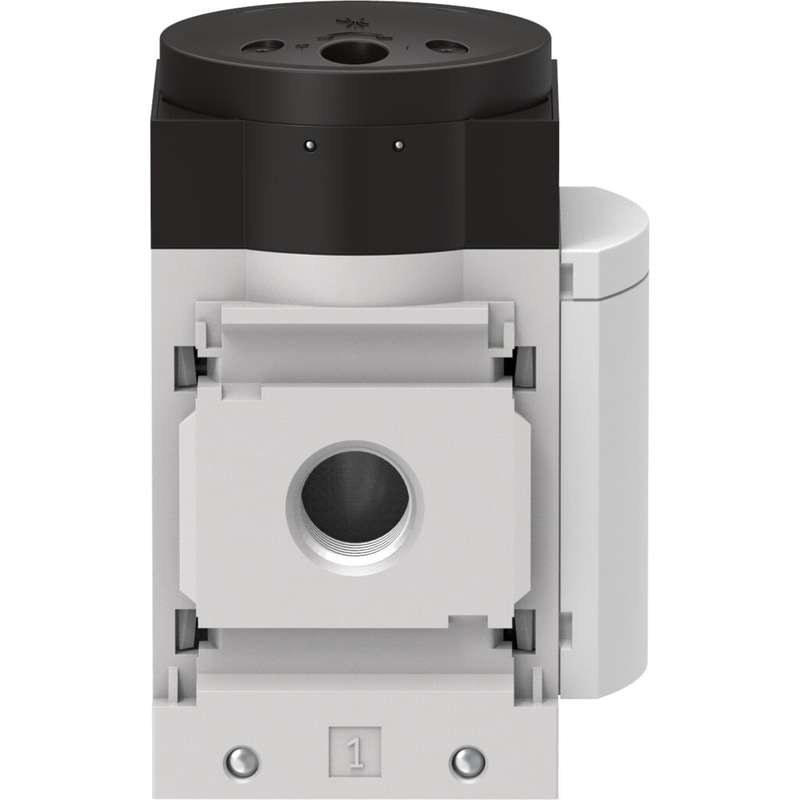

Soft-start valve MS6-DL-1/2

Name: Soft-start valve MS6-DL-1/2
Brand: Festo
SKU: 529817
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1)

$87.94

SKU: 529817
UNSPSC: 40141603
GTIN: 4052568005214

SKU: 529817 Category: MS6-DL Tag: Festo-Fast

MS-START-UP-EXHAUST-VALVES_ENUS.PDF

Brand: Festo

soft-start valve MS6-DL-1/2 Pneumatic, for gradual pressure build-up, direction of flow: from left to right. Exhaust-air function=throttleable, Type of actuation=pneumatic, Assembly position=Any, Manual override=None, Design structure=Piston seat

Exhaust-air function	throttleable
Type of actuation	pneumatic
Assembly position	Any
Manual override	None
Design structure	Piston seat
Type of reset	mechanical spring
Type of piloting	direct
Pilot air supply	external
Flow direction	non reversible
Valve function	43498
Operating pressure	4 … 18 bar
b value	0.39
C value	28.97 l/sbar

Weight	1.462767 lbs
Dimensions	5.905512 × 4.527559 × 3.937008 in
Exhaust air function	With flow control option
Actuation type	Pneumatic
Mounting position	Any
Manual override	None
Structural design	Piston seat
Reset method	Mechanical spring
Type of control	Direct
Pilot air supply port	External
Flow direction	Non-reversible

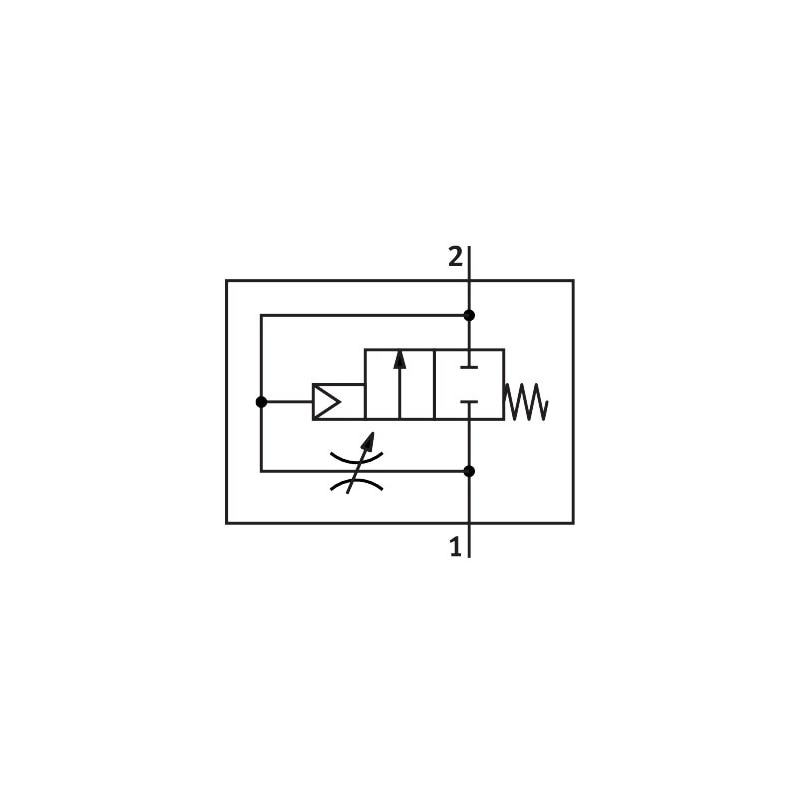

Symbol	00991513
Valve Function	2/2
Operating pressure	4 bar … 18 bar
b-value	0.39
C value	28.97 l/sbar
Normal nominal flow rate (normalized to DIN 1343)	6450 l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] \| Inert gas
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
For use in the food industry	See supplementary material information
Temperature of medium	-10 °C … 60 °C
Ambient temperature	-10 °C … 60 °C
Product weight	650 g
Type of mounting	With accessories
Pneumatic connection 1	G1/2
Pneumatic connection 2	G1/2
Note on materials	RoHS-compliant
Seals material	NBR
Housing material	Die-cast aluminum
