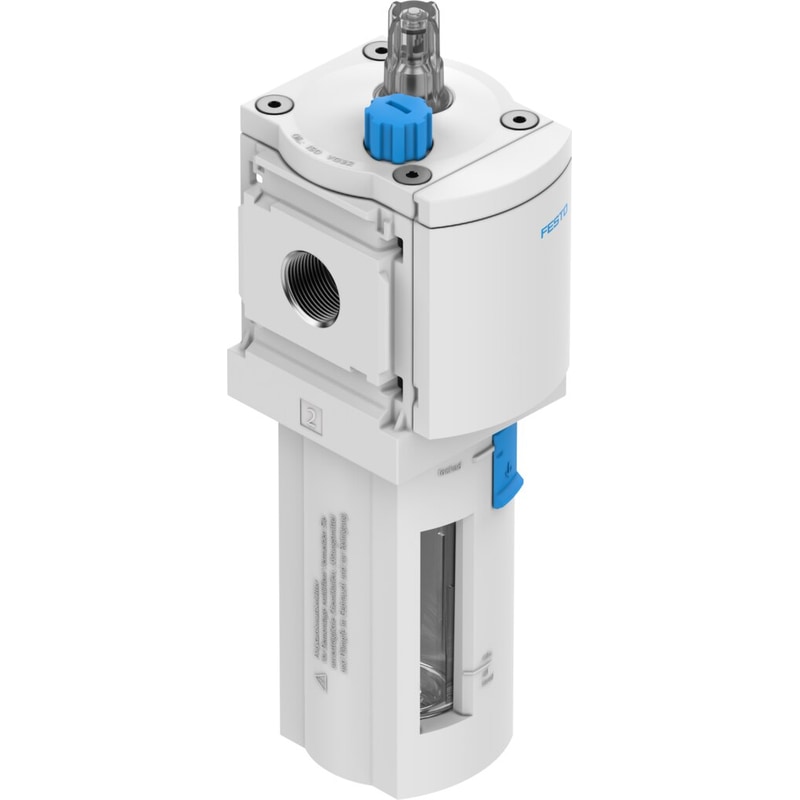

Air line lubricator MS6-LOE-1/2-R-Z

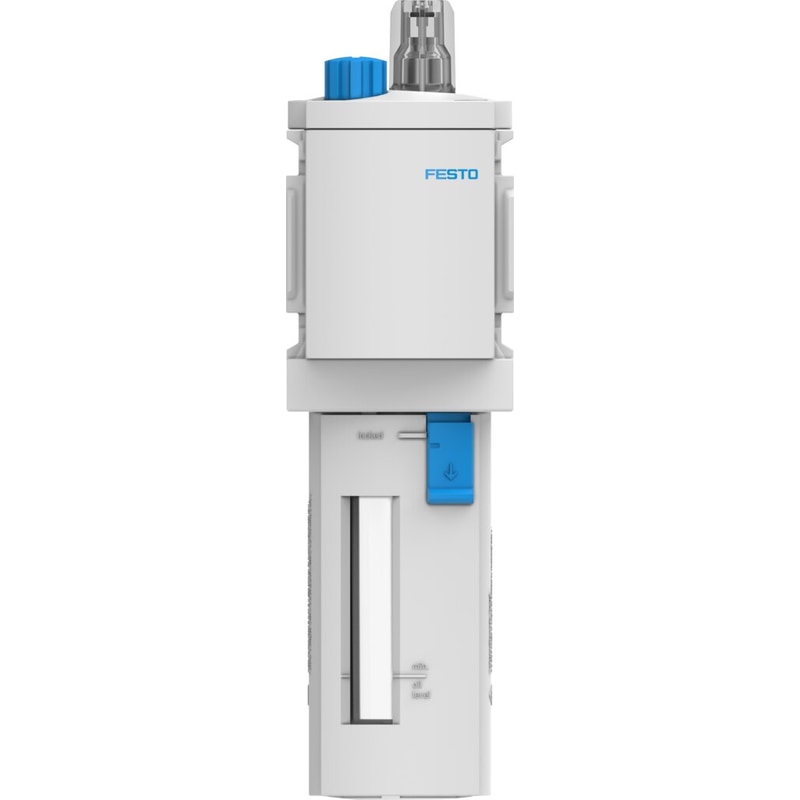

Air line lubricator MS6-LOE-1/2-R-Z - Image 2
Air line lubricator MS6-LOE-1/2-R-Z - Image 3

Air line lubricator MS6-LOE-1/2-R-Z

$62.56

SKU: 529776
UNSPSC: 27131604
GTIN: 4052568085421

Warehouse 1*: 0 in stock

Warehouse 2: Call for Availability

- +
SKU: 529776 Category: Tag:
MS-LOE_ENUS.PDF
Brand:

lubricator MS6-LOE-1/2-R-Z Plastic bowl with plastic bowl guard, direction of flow: from right to left. Size=6, Series=MS, Assembly position=Vertical +/- 5°, Design structure=proportional standard mist lubricator, Max. oil capacity=75 cm3

Size  6
Series  MS
Assembly position  Vertical +/- 5°
Design structure  proportional standard mist lubricator
Max. oil capacity  75 cm3
Bowl guard  Plastic guard
Operating pressure  1 … 16 bar
Minimum flow rate for lubricator function  50 l/min
Standard nominal flow rate  7,200 l/min
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases
Note on operating and pilot medium  Lubricated operation possible
Corrosion resistance classification CRC  2 – Moderate corrosion stress
Storage temperature  ‘-10 … 60 °C
Weight 1.510166 lbs
Dimensions 9.448819 × 3.937008 × 2.952756 in
Size

6
Series

MS
Mounting position

Vertical +/- 5°
Structural design

Proportional standard oil mist lubricator
Max. oil capacity

75 cm³
Bowl guard

Plastic bowl guard
Symbol

00991532
Operating pressure

1 bar … 16 bar
Minimum flow rate for lubricator function

50 l/min
Normal nominal flow rate (normalized to DIN 1343)

7200 l/min
Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas
Information on operating and pilot media

Operation with oil lubrication possible
Corrosion resistance class (CRC)

2 – Moderate corrosion stress
LABS (PWIS) conformity

VDMA24364-B1/B2-L
Storage temperature

-10 °C … 60 °C
For use in the food industry

See supplementary material information
Temperature of medium

-10 °C … 60 °C
Oil viscosity

ISO VG 32
Ambient temperature

-10 °C … 60 °C
Product weight

600 g
Type of mounting

With accessories
Pneumatic connection 1

G1/2
Pneumatic connection 2

G1/2
Note on materials

RoHS-compliant
Housing material

Die-cast aluminum
Material of bowl

PC
