MS6-LF

MS6-LF-1/2-ERM

Name: MS6-LF-1/2-ERM
Brand: Festo
SKU: 529615
Availability: InStock

$49.92

SKU: 529615
UNSPSC: 40161505
GTIN: 4052568085353

SKU: 529615 Category: MS6-LF Tag: Festo-Fast

MS-FILTERS_ENUS.PDF

Brand: Festo

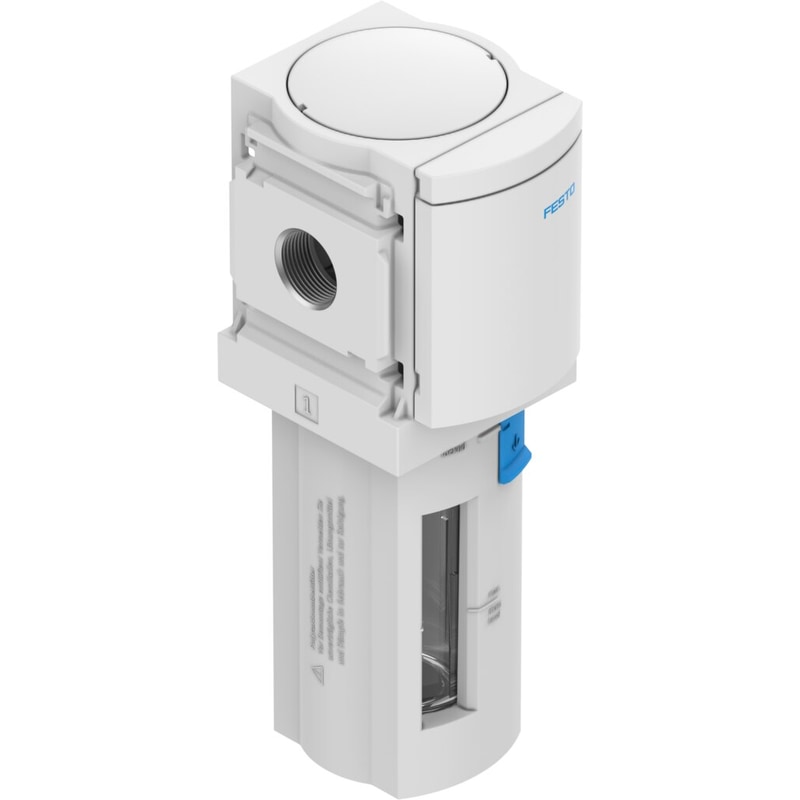

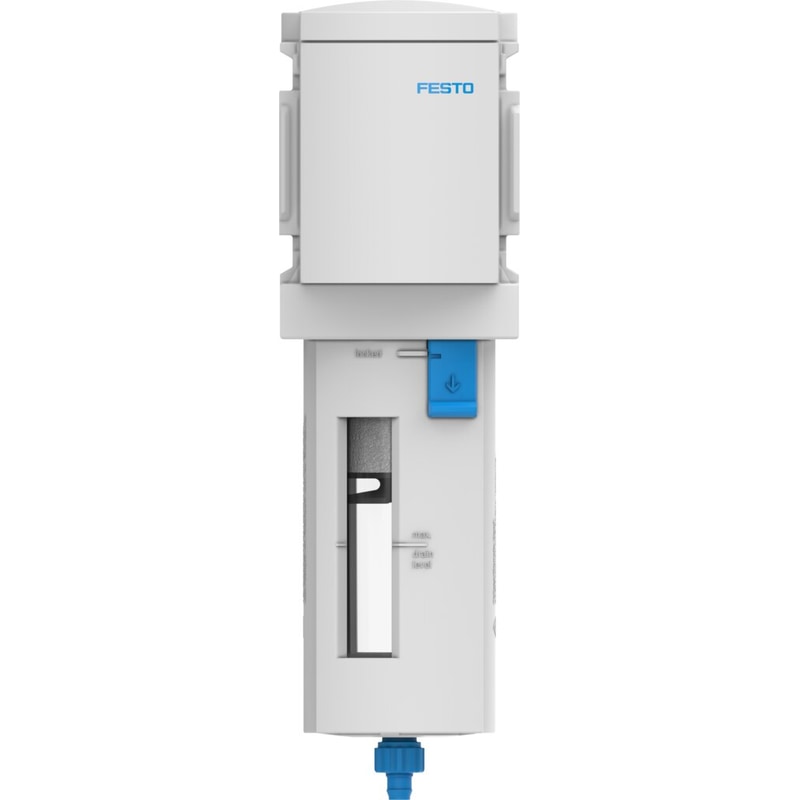

filter MS6-LF-1/2-ERM 40 µm filter, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size=6, Series=MS, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm, Condensate drain=manual rotary

Size	6
Series	MS
Assembly position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	manual rotary
Design structure	Sintered filter with centrifugal separator
Max. condensate volume	38 cm3
Bowl guard	Plastic guard
Operating pressure	0 … 20 bar
Standard nominal flow rate	4,100 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases
Corrosion resistance classification CRC	2 – Moderate corrosion stress
Storage temperature	‘-10 … 60 °C

Weight	1.590547 lbs
Dimensions	9.448819 × 3.070866 × 4.094488 in
Size	6
Series	MS
Mounting position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	Manually rotating
Structural design	Sinter filter with centrifugal separator
Bowl guard	Plastic bowl guard
Degree of condensate separation	>75 %
Symbol	00991519
Operating pressure	0 bar … 20 bar
Normal nominal flow rate (normalized to DIN 1343)	4100 l/min
Operating medium	Inert gas
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-10 °C … 60 °C
For use in the food industry	See supplementary material information
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [7:8:4]
Temperature of medium	-10 °C … 60 °C
Ambient temperature	-10 °C … 60 °C
Pore size	<40 µm
Product weight	600 g
Type of mounting	With accessories
Pneumatic connection 1	G1/2
Pneumatic connection 2	G1/2
Note on materials	RoHS-compliant
Seals material	NBR
Compressed air filter material	PE
Housing material	Die-cast aluminum
Material of bowl	PC
Separating disc material	POM
