Electrical connection 1, connection technology | M23x1 |
---|---|
Electrical connection 1, connection type | Hybrid plug |
Concentricity, coaxiality, axial runout according to DIN SPEC 42955 | N |
Electrical connection for input 1, connection pattern | 00995913 |
Detent torque | < 1.0% of peak torque |
Mounting position | Any |
Rotor position sensor for manufacturer designation | ECI 1118 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Information on max. installation height | with 1,000 m and longer only with derating of -1.0% per 100 m |
Note on degree of protection | IP40 for motor shaft without rotary shaft seal IP65 for motor shaft with rotary shaft seal IP67 for motor housing, incl. connection technology |
Contamination level | 2 |
Note on ambient temperature | Up to 80 °C with derating of -1.5% per degree Celsius |
Measuring flange | 250 x 250 x 15 mm, steel |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Balancing quality | G 2.5 |
Motor type as per EN 60034-7 | IM B5 IM V1 IM V3 |
Certificate issuing authority | UL E342973 |
Electrical connection 1, number of pins/wires | 15 |
Max. winding temperature | 155 °C |
Brake airflow | 0.37 A |
Max. brake no-load speed | 10000 1/min |
Max. installation height | 4000 m |
Rotor position encoder for DC operating voltage | 5 V |
Brake coil inductivity | 1000 mH |
Brake coil resistance | 48 Ohm |
Brake current consumption | 0.5 A |
Max. mechanical speed | 14000 1/min |
Brake stopping current | 0.37 A |
Number of pole pairs | 5 |
Storage lifetime, under nominal conditions | 20000 h |
Brake closing time | ≤ 15 ms |
Max. brake friction work | 8200 J |
Brake separation time | ≤ 55 ms |
Electric time constant | 6.4 ms |
DC brake response delay | ≤ 3 ms |
Cross inductivity Lq (phase) | 23.8 mH |
Winding longitudinal inductivity Ld (phase) | 19.4 mH |
Rotor position encoder for DC operating voltage range | 3.6 V … 14 V |
Standstill torque constant | 1.17 Nm/A |
Rotor position encoder for absolutely detectable revolutions | 1 |
Rotor position encoder system accuracy angle measurement | -120 arcsec … 120 arcsec |
Thermal resistance | 0.78 K/W |
Rotor position encoder for positional values per revolution | 262144 |
Thermal time constant | 45 min |
Type code | EMMT-AS |
Rotor position sensor | Absolute encoder, single-turn |
Rotor position sensor interface | EnDat® 22 |
Rotor position sensor measuring principle | Inductive |
Temperature monitoring | Digital motor temperature transmission via EnDat® 2.2 |
Max. rotational speed | 5650 1/min |
Nominal rotary speed | 3000 1/min |
Brake DC operating voltage | 24 V |
Continuous stall current | 2.6 A |
Brake power consumption | 12 W |
Motor constants | 1 Nm/A |
Nominal operating voltage DC | 565 V |
Motor nominal power | 690 W |
Motor nominal current | 2.2 A |
Rotor position sensor resolution | 18 bit |
Phase-phase winding resistance | 7.43 Ohm |
Winding inductance phase-phase | 31.8 mH |
Type of winding switch | Star inside |
Peak current | 9 A |
Voltage constant, phase-to-phase | 70.7 mVmin |
Rating class according to EN 60034-1 | S1 |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive |
Corrosion resistance class (CRC) | 0 – No corrosion stress |
Storage temperature | -20 °C … 70 °C |
Relative air humidity | 0 – 90 % |
Degree of protection | IP40 |
Ambient temperature | -15 °C … 40 °C |
Thermal class according to EN 60034-1 | F |
Certification | RCM compliance mark c UL us – Recognized (OL) |
Total output inertia moment | 2.07 kgcm² |
Brake holding torque | 4.5 Nm |
Brake mass moment of inertia | 0.249 kgcm² |
Nominal torque | 2.2 Nm |
Peak torque | 6.4 Nm |
Stall torque | 2.6 Nm |
Permissible axial shaft load | 120 N |
Permissible radial shaft load | 620 N |
MTTF, subcomponent | 190 years, rotor position sensor |
MTTFd, subcomponent | 380 years, rotor position sensor |
Switching cycles, holding brake | 10 million idle actuations (without friction work!) |
Product weight | 3360 g |
Interface code, motor out | 80P |
Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
Conforms to standard | IEC 60034 |

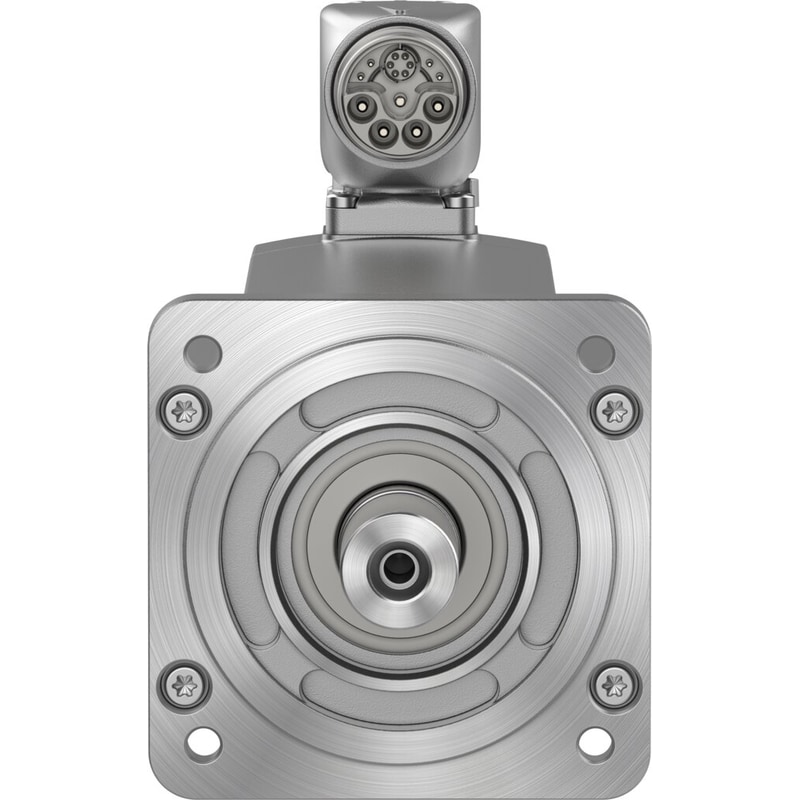

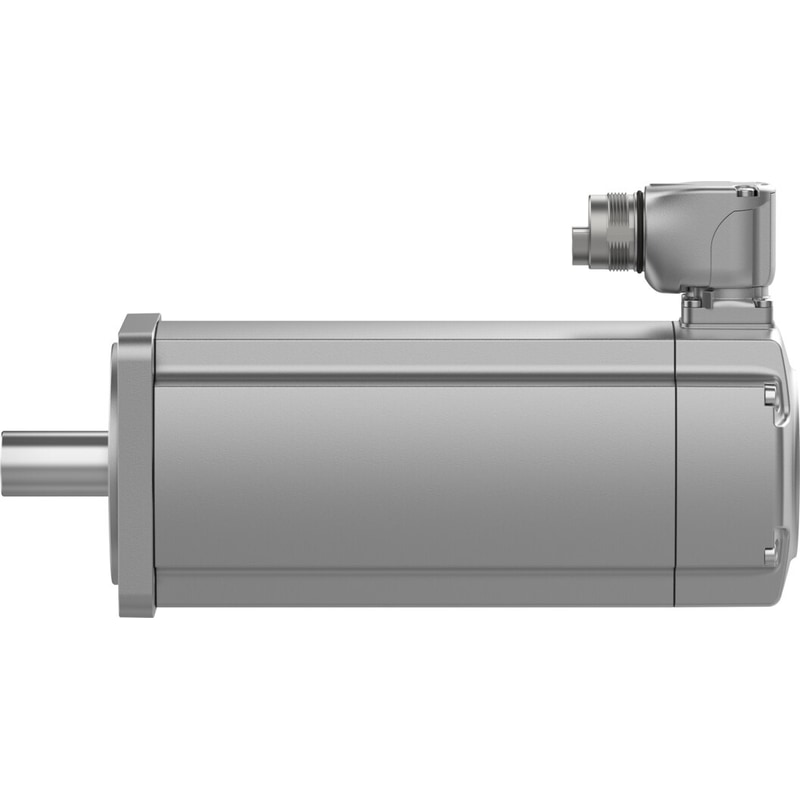

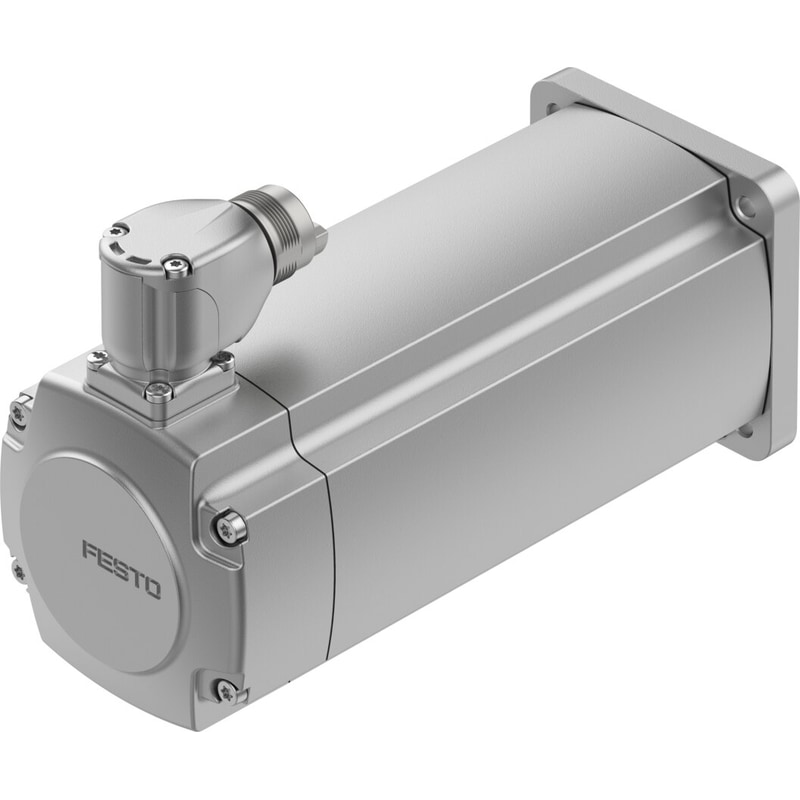

EMMT-AS-80-M-HS-RSB
$1,644.65
GTIN: 4052568460402
