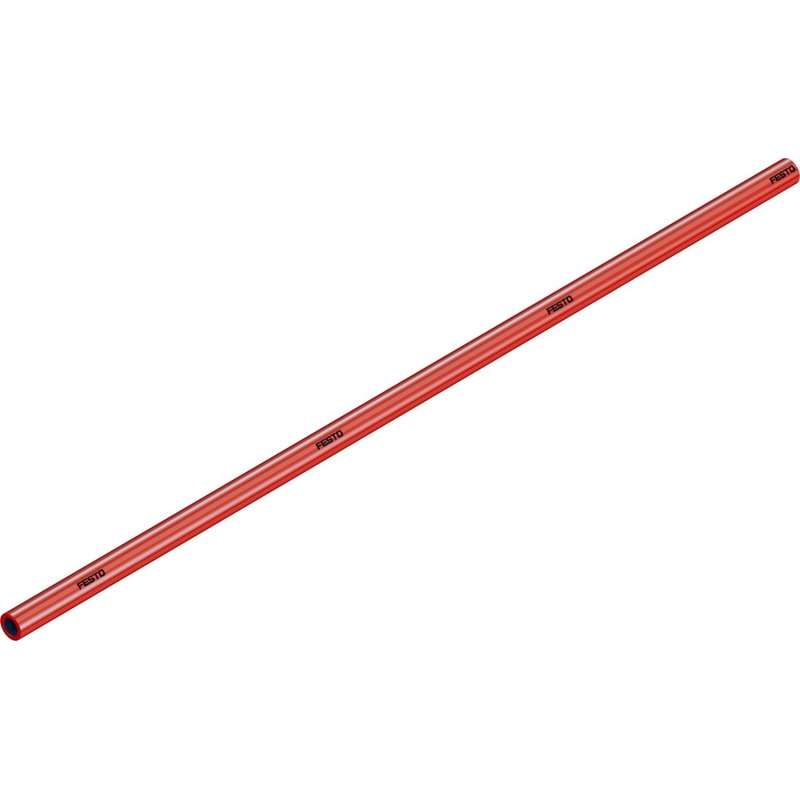

PUN-V0-6X1-RT Plastic tubing (Pack of 50)

$325.50

SKU: 525450 Category: Tags: ,
Festo
Pneumatic tubing test conditions Suitability for energy chains: >5 million cycles as per FN 942021
Tubing characteristics Suitable for energy chains in applications with high cycle rates
Outside diameter 6 mm
Bending radius relevant for flow rate 26.5 mm
Inside diameter 4 mm
Min. bending radius 12 mm
Type code PUN-V0
Temperature-dependent operating pressure -0.95 bar … 10 bar
Operating medium Water as per manufacturer’s declaration at www.festo.comCompressed air as per ISO 8573-1:2010 [7:-:-]
Material fire test UL94 V-2 (0.75mm)UL94 V-0 (3mm)
Ambient temperature -35 °C … 60 °C
Certification German Technical Control Board (TÃœV)
Product weight by length 0.02 kg/m
Pneumatic connection For barbed fitting, inside diameter 4 mmFor barbed fitting, inside diameter 4 mm, with union nutFor plug connection outside diameter 6 mm
Color Red
Information on color Deviates from the standard color due to flame protection
Shore hardness D 54 +/-3
Note on materials Free of copper and PTFERoHS-compliant
Material of pneumatic tubing TPE-U(PU)
