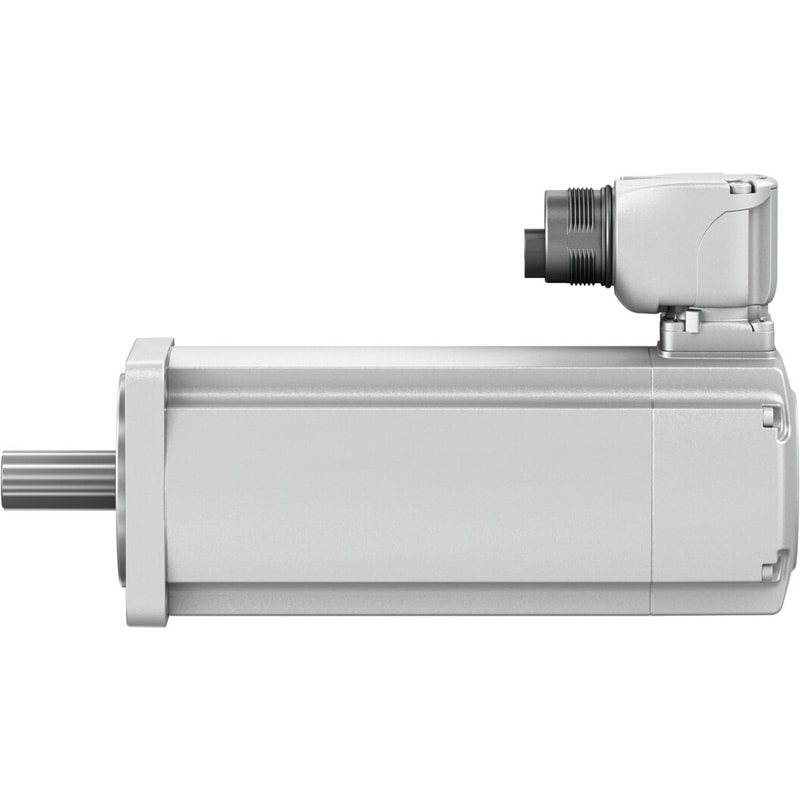

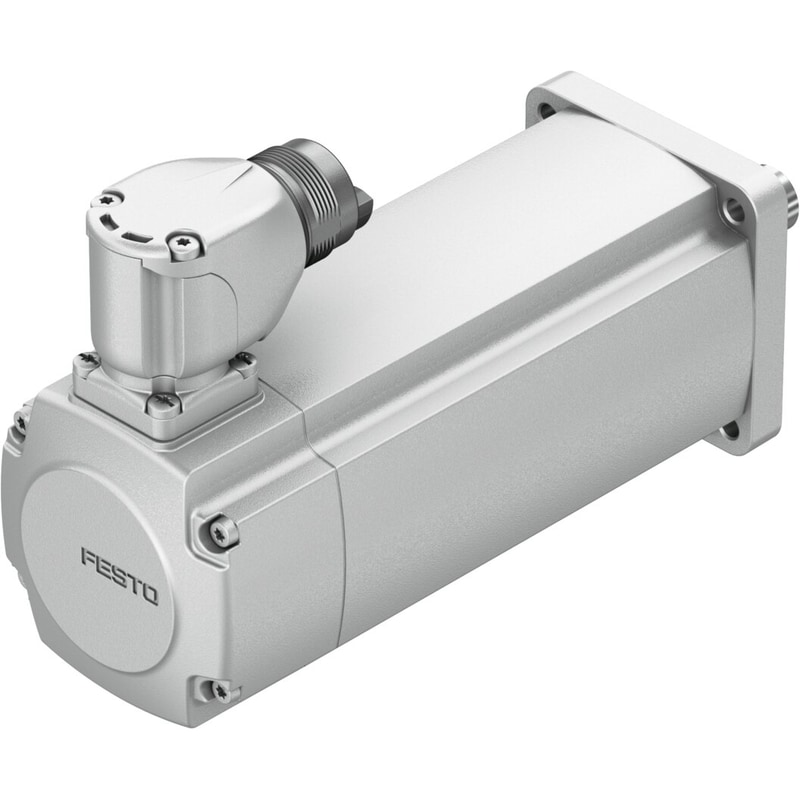

The servo motor EMMT-AS for demanding and dynamic applications is characterized by very good controllability and path accuracy for positioning tasks and the space-saving single-cable solution significantly reduces installation effort.

SKU: 5242218 Category: Tag:
Electrical connection 1, connection technology M23x1
Electrical connection 1, connection type Hybrid plug
Concentricity, coaxiality, axial runout according to DIN SPEC 42955 N
Electrical connection for input 1, connection pattern 995913
Detent torque < 1.0% of peak torque
Rotor position sensor for manufacturer designation ECI 1118
Mounting position Any
Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Information on max. installation height with 1,000 m and longer only with derating of -1.0% per 100 m
Contamination level 2
Note on degree of protection IP40 for motor shaft without rotary shaft sealIP67 for motor housing, incl. connection technologyIP65 for motor shaft with rotary shaft seal
Note on ambient temperature Up to 80 °C with derating of -1.5% per degree Celsius
Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Measuring flange 250 x 250 x 15 mm, steel
Balancing quality G 2.5
Motor type as per EN 60034-7 IM B5IM V1IM V3
Certificate issuing authority UL E342973
Electrical connection 1, number of pins/wires 15
Max. winding temperature 155 °C
Brake airflow 0.33 A
Max. brake no-load speed 10000 1/min
Max. installation height 4000 m
Brake coil inductivity 700 mH
Brake coil resistance 52.4 Ohm
Brake current consumption 0.46 A
Max. mechanical speed 16000 1/min
Brake stopping current 0.33 A
Number of pole pairs 5
Storage lifetime, under nominal conditions 20000 h
Brake closing time 10 ms
Max. brake friction work 5600 J
Brake separation time ≤ 35 ms
Electric time constant 3 ms
DC brake response delay ≤ 2 ms
Cross inductivity Lq (phase) 5 mH
Winding longitudinal inductivity Ld (phase) 4.2 mH
Rotor position encoder for DC operating voltage range 3.6 V … 14 V
Standstill torque constant 0.52 Nm/A
Rotor position encoder for absolutely detectable revolutions 1
Rotor position encoder system accuracy angle measurement -120 arcsec … 120 arcsec
Thermal resistance 1.2 K/W
Rotor position encoder for positional values per revolution 262144
Thermal time constant 44 min
Type code EMMT-AS
Rotor position sensor Absolute encoder, single-turn
Rotor position sensor interface EnDat® 22
Rotor position sensor measuring principle Inductive
Temperature monitoring Digital motor temperature transmission via EnDat® 2.2
Max. rotational speed 11900 1/min
Nominal rotary speed 3000 1/min
Brake DC operating voltage 24 V
Continuous stall current 3.5 A
Brake power consumption 11 W
Motor constants 0.44 Nm/A
Nominal operating voltage DC 565 V
Motor nominal power 410 W
Motor nominal current 0.125
Rotor position sensor resolution 18 bit
Phase-phase winding resistance 2.68 Ohm
Winding inductance phase-phase 7 mH
Type of winding switch Star inside
Peak current 18.3 A
Voltage constant, phase-to-phase 31.2 mVmin
Rating class according to EN 60034-1 S1
CE marking (see declaration of conformity) As per EU RoHS directiveAs per EU low voltage directiveAs per EU EMC directive
Corrosion resistance class (CRC) 0 – No corrosion stress
Storage temperature -20 °C … 70 °C
Relative air humidity 0 – 90 %
Degree of protection IP40
Ambient temperature -15 °C … 40 °C
Thermal class according to EN 60034-1 F
Certification c UL us – Recognized (OL)RCM compliance mark
Total output inertia moment 0.49 kgcm²
Brake holding torque 2.5 Nm
Brake mass moment of inertia 0.074 kgcm²
Nominal torque 1.3 Nm
Peak torque 5.6 Nm
Stall torque 1.56 Nm
Permissible axial shaft load 70 N
Permissible radial shaft load 350 N
MTTF, subcomponent 190 years, rotor position sensor
MTTFd, subcomponent 380 years, rotor position sensor
Switching cycles, holding brake 10 million idle actuations (without friction work!)
Product weight 2230 g
Interface code, motor out 60P
Note on materials RoHS-compliantContains paint-wetting impairment substances
Conforms to standard IEC 60034
