Electrical connection 1, connection technology | M23x1 |
---|---|
Electrical connection 1, connection type | Hybrid plug |
Concentricity, coaxiality, axial runout according to DIN SPEC 42955 | N |
Electrical connection for input 1, connection pattern | 995913 |
Detent torque | < 1.0% of peak torque |
Rotor position sensor for manufacturer designation | EQI 1131 |
Mounting position | Any |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Information on max. installation height | with 1,000 m and longer only with derating of -1.0% per 100 m |
Contamination level | 2 |
Note on degree of protection | IP40 for motor shaft without rotary shaft sealIP67 for motor housing, incl. connection technologyIP65 for motor shaft with rotary shaft seal |
Note on ambient temperature | Up to 80 °C with derating of -1.5% per degree Celsius |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Measuring flange | 250 x 250 x 15 mm, steel |
Balancing quality | G 2.5 |
Motor type as per EN 60034-7 | IM B5IM V3IM V1 |
Certificate issuing authority | UL E342973 |
Electrical connection 1, number of pins/wires | 15 |
Max. winding temperature | 155 °C |
Max. installation height | 4000 m |
Rotor position encoder for DC operating voltage | 5 V |
Max. mechanical speed | 16000 1/min |
Number of pole pairs | 5 |
Electric time constant | 3 ms |
Cross inductivity Lq (phase) | 5 mH |
Winding longitudinal inductivity Ld (phase) | 4.2 mH |
Rotor position encoder for DC operating voltage range | 3.6 V … 14 V |
Standstill torque constant | 0.52 Nm/A |
Rotor position encoder for absolutely detectable revolutions | 4096 |
Rotor position encoder system accuracy angle measurement | -120 arcsec … 120 arcsec |
Thermal resistance | 1 K/W |
Rotor position encoder for positional values per revolution | 524288 |
Thermal time constant | 43 min |
Type code | EMMT-AS |
Rotor position sensor | Absolute encoder, multi-turn |
Rotor position sensor interface | EnDat® 22 |
Rotor position sensor measuring principle | Inductive |
Temperature monitoring | Digital motor temperature transmission via EnDat® 2.2 |
Max. rotational speed | 11900 1/min |
Nominal rotary speed | 3000 1/min |
Continuous stall current | 3.8 A |
Motor constants | 0.44 Nm/A |
Nominal operating voltage DC | 565 V |
Motor nominal power | 440 W |
Motor nominal current | 3.2 A |
Rotor position sensor resolution | 19 bit |
Phase-phase winding resistance | 2.68 Ohm |
Winding inductance phase-phase | 7 mH |
Type of winding switch | Star inside |
Peak current | 18.3 A |
Voltage constant, phase-to-phase | 31.2 mVmin |
Rating class according to EN 60034-1 | S1 |
CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU low voltage directiveAs per EU RoHS directive |
Corrosion resistance class (CRC) | 0 – No corrosion stress |
Storage temperature | -20 °C … 70 °C |
Relative air humidity | 0 – 90 % |
Degree of protection | IP40 |
Ambient temperature | -15 °C … 40 °C |
Thermal class according to EN 60034-1 | F |
Certification | RCM compliance markc UL us – Recognized (OL) |
Total output inertia moment | 0.403 kgcm² |
Nominal torque | 1.4 Nm |
Peak torque | 5.6 Nm |
Stall torque | 1.66 Nm |
Permissible axial shaft load | 70 N |
Permissible radial shaft load | 350 N |
MTTF, subcomponent | 190 years, rotor position sensor |
MTTFd, subcomponent | 380 years, rotor position sensor |
Product weight | 1910 g |
Interface code, motor out | 60P |
Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
Conforms to standard | IEC 60034 |

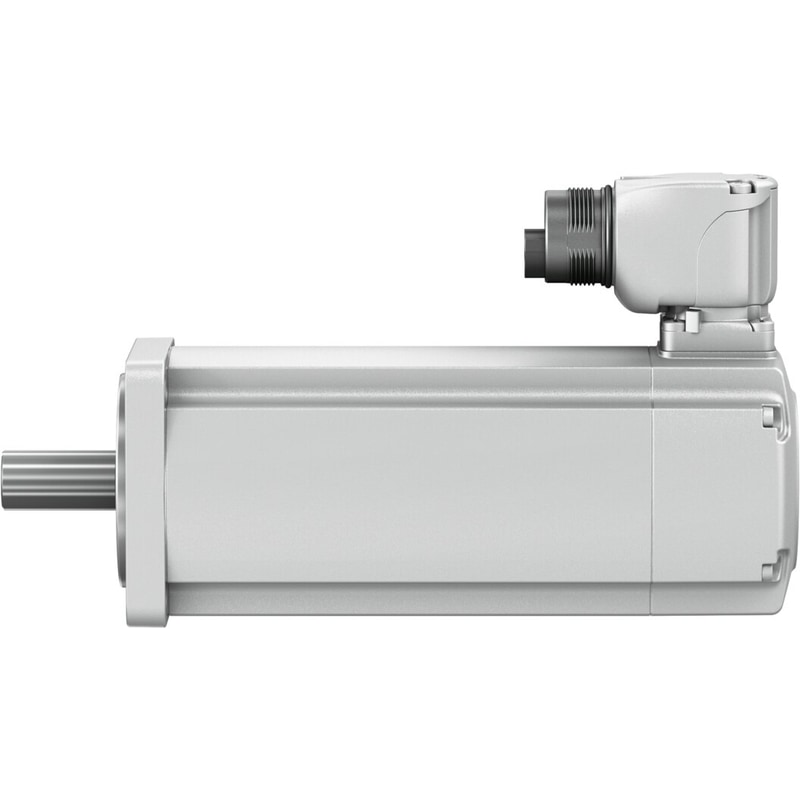

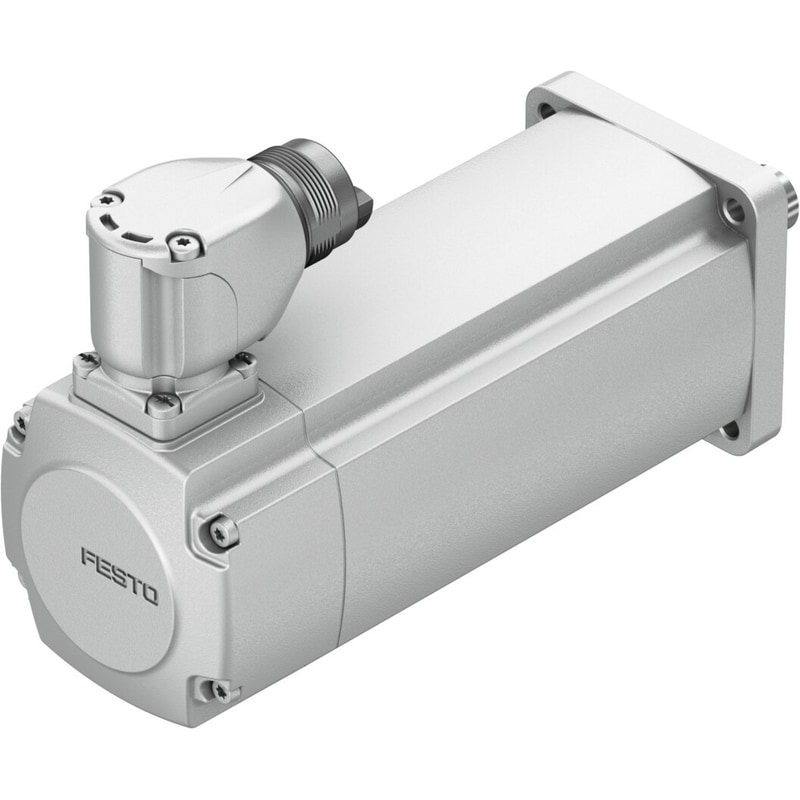

EMMT-AS-60-L-HS-RM
$1,379.36
The servo motor EMMT-AS for demanding and dynamic applications is characterized by very good controllability and path accuracy for positioning tasks and the space-saving single-cable solution significantly reduces installation effort.
