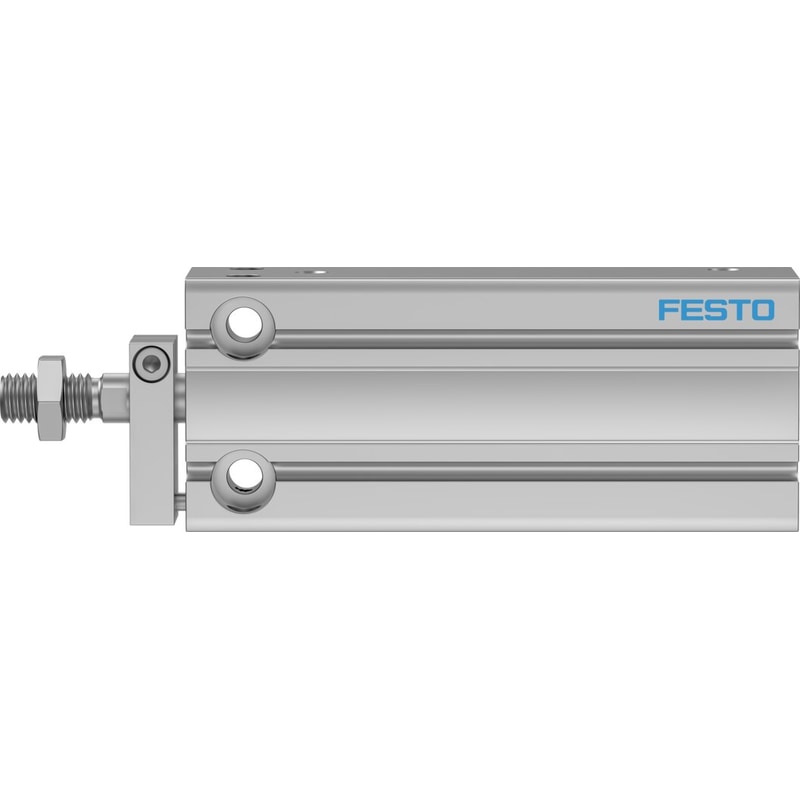

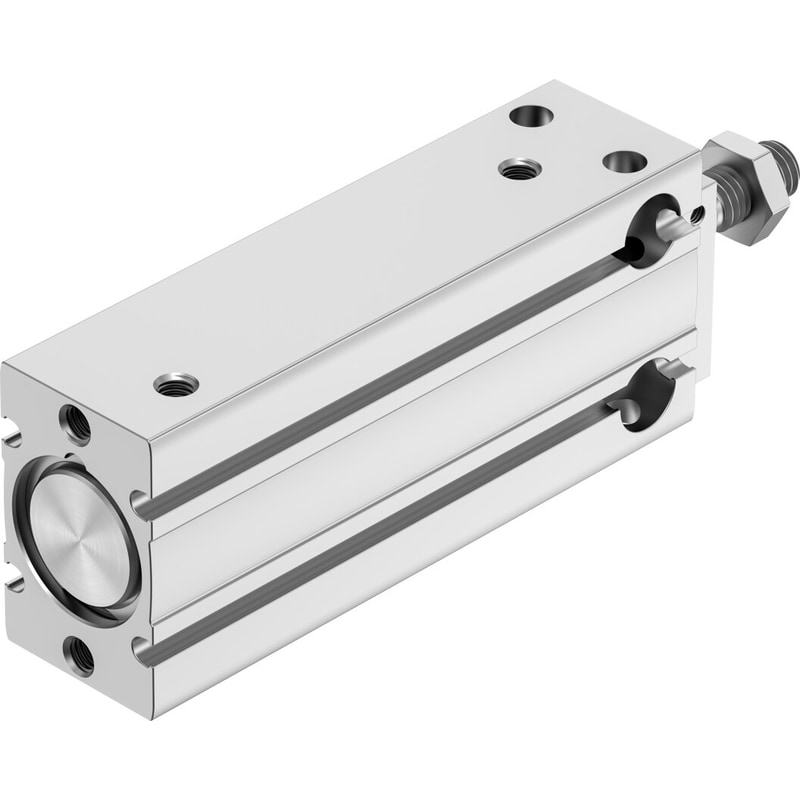

DPDM-Q-20-50-PA

$116.74

SKU: 4840820 Category: Tag:
Festo

compact cylinder
DPDM-Q-20-50-PA
Part number: 4840820

Stroke  50 mm
Piston diameter  20 mm
Cushioning  P: Flexible cushioning rings/plates at both ends
Assembly position  Any
Mode of operation  double-acting
Design structure  PistonPiston rodProfile barrel
Position detection  For proximity sensor
Variants  Single-ended piston rod
Protection against torque/guide  Guide rod with yoke
Operating pressure  1.5 … 8 bar
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium  Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC  2 – Moderate corrosion stress
Stroke

50 mm

Piston diameter

20 mm

Cushioning

P: Flexible cushioning rings/plates at both ends

Assembly position

Any

Mode of operation

double-acting

Design structure

PistonPiston rodProfile barrel

Position detection

For proximity sensor

Variants

Single-ended piston rod

Protection against torque/guide

Guide rod with yoke

Operating pressure

1.5 … 8 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)

Corrosion resistance classification CRC

2 – Moderate corrosion stress
