Name: DPDM-20-5-PA
Brand: Festo
SKU: 4840799
Availability: InStock

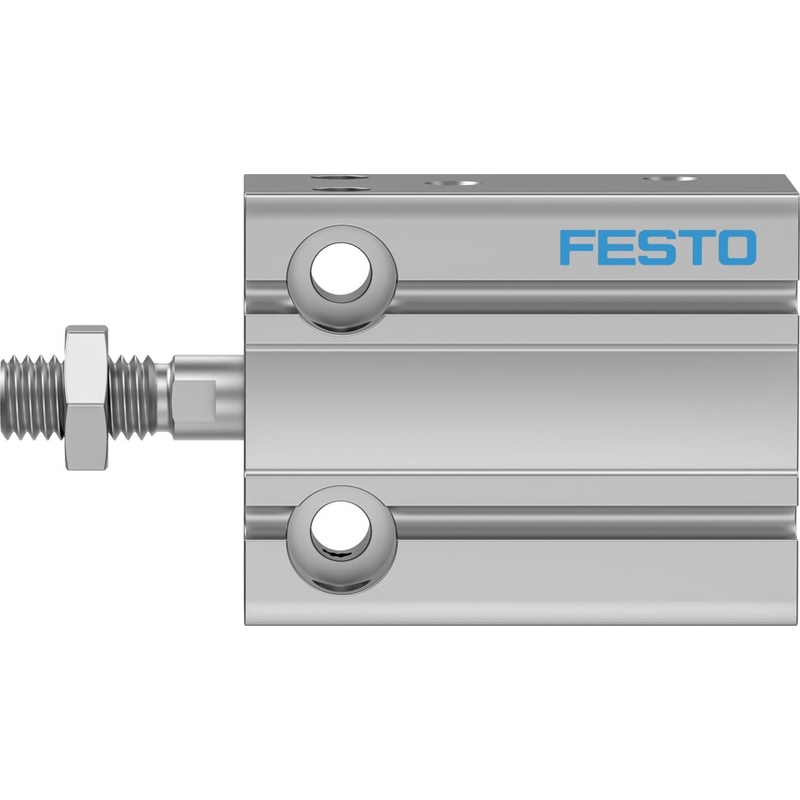

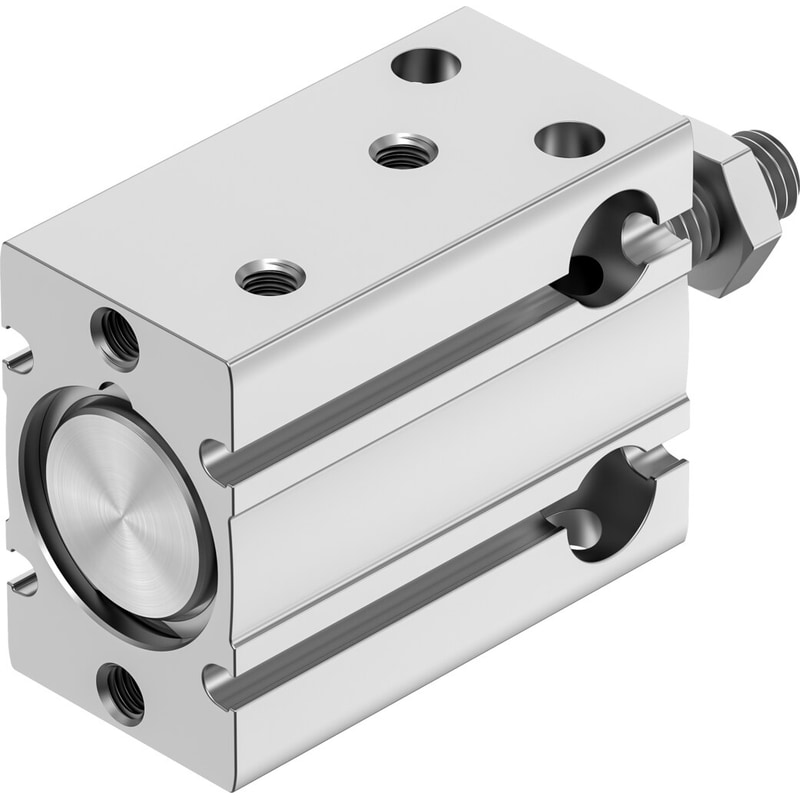

compact cylinder
DPDM-20-5-PA
Part number: 4840799

Stroke	5 mm
Piston diameter	20 mm
Cushioning	P: Flexible cushioning rings/plates at both ends
Assembly position	Any
Mode of operation	double-acting
Design structure	PistonPiston rodProfile barrel
Position detection	For proximity sensor
Variants	Single-ended piston rod
Operating pressure	1 … 8 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	2 – Moderate corrosion stress
Ambient temperature	‘-10 … 80 °C

Weight	0.298991 lbs
Dimensions	2.952756 × 1.574803 × 1.181102 in
Mode of operation	double-acting
Piston diameter	20 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	188 N
Stroke	5 mm
Cushioning	Elastic cushioning rings/plates at both ends
