DPDM-Q-16-25-PA
DPDM-Q-16-25-PA - Image 2
DPDM-Q-16-25-PA - Image 3
DPDM-Q-16-25-PA - Image 4

DPDM-Q-16-25-PA

$131.46

Warehouse 1*: 0 in stock

Warehouse 2: Call for Availability

- +
SKU: 4834264 Category: Tag:
DPDM_ENUS.PDF
Brand:

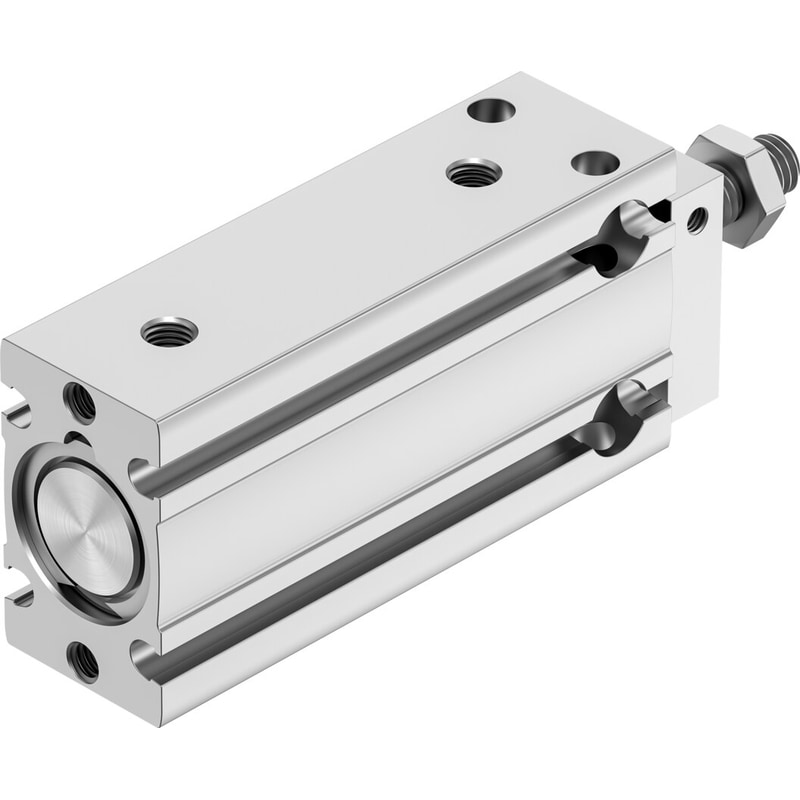

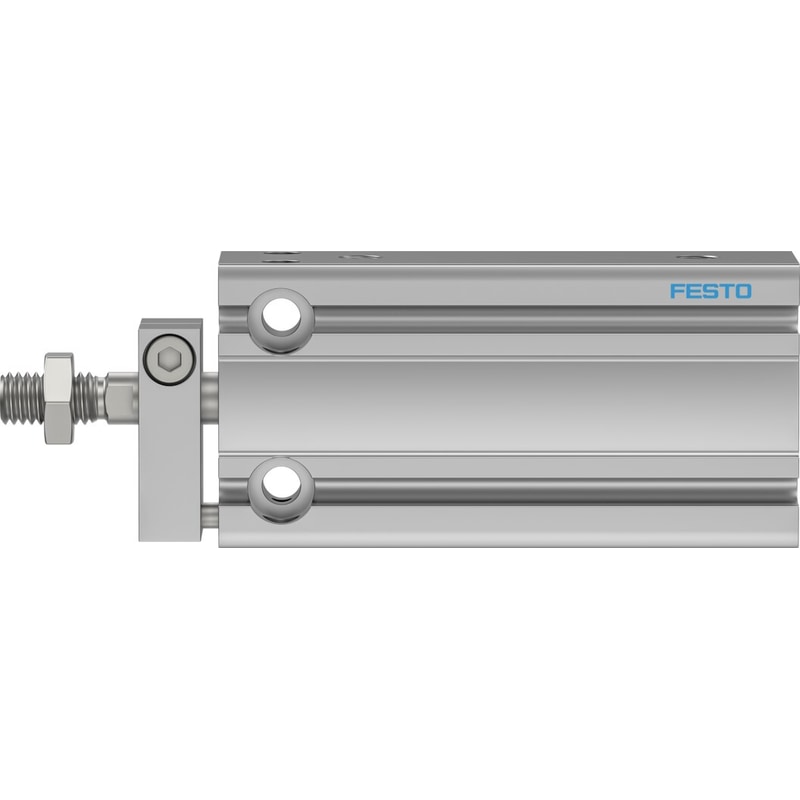

compact cylinder
DPDM-Q-16-25-PA
Part number: 4834264

Stroke  25 mm
Piston diameter  16 mm
Cushioning  P: Flexible cushioning rings/plates at both ends
Assembly position  Any
Mode of operation  double-acting
Design structure  PistonPiston rodProfile barrel
Position detection  For proximity sensor
Variants  Single-ended piston rod
Protection against torque/guide  Guide rod with yoke
Operating pressure  1.5 … 8 bar
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium  Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC  2 – Moderate corrosion stress
Weight 0.233712 lbs
Dimensions 3.543307 × 1.259843 × 0.787402 in
Mode of operation

double-acting
Piston diameter

16 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke

121 N
Stroke

25 mm
Cushioning

Elastic cushioning rings/plates at both ends
