| Size | Midi |
|---|---|
| Type code | LFR |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | Manually rotating |
| Design | Filter regulator without pressure gauge |
| Max. condensate volume | 42 ml |
| Bowl guard | Integrated as metal bowl guard |

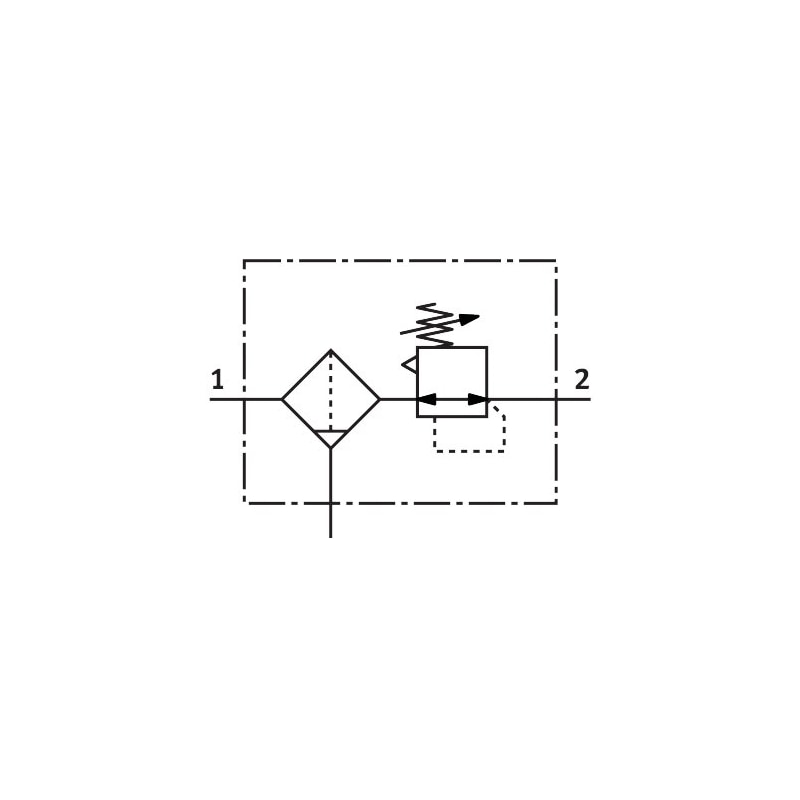

| Symbol | 991586 |
| Pressure gauge | G1/4 prepared |
| Operating pressure | 1 bar … 20 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 2600 l/min |
| ATEX category gas | II 2G |
| Type of ignition protection for gas | Ex h IIC T6 Gb X |
| ATEX category for dust | II 2D |
| Type of (ignition) protection for dust | Ex h IIIC T85°C Db X |
| Explosive ambient temperature | -20°C <= Ta <= +80°C |
| Explosion prevention and protection | Zone 21 (ATEX)Zone 22 (ATEX)Zone 1 (ATEX)Zone 2 (ATEX) |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [-:9:-] |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| Corrosion resistance class (CRC) | 3 – High corrosion stress |
| Storage temperature | -20 °C … 80 °C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:4]Inert gas |
| Temperature of medium | -20 °C … 80 °C |
| Ambient temperature | -20 °C … 80 °C |
| Product weight | 1400 g |
| Type of mounting | Line installationWith accessoriesOptionally: |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | Wrought aluminum alloy |

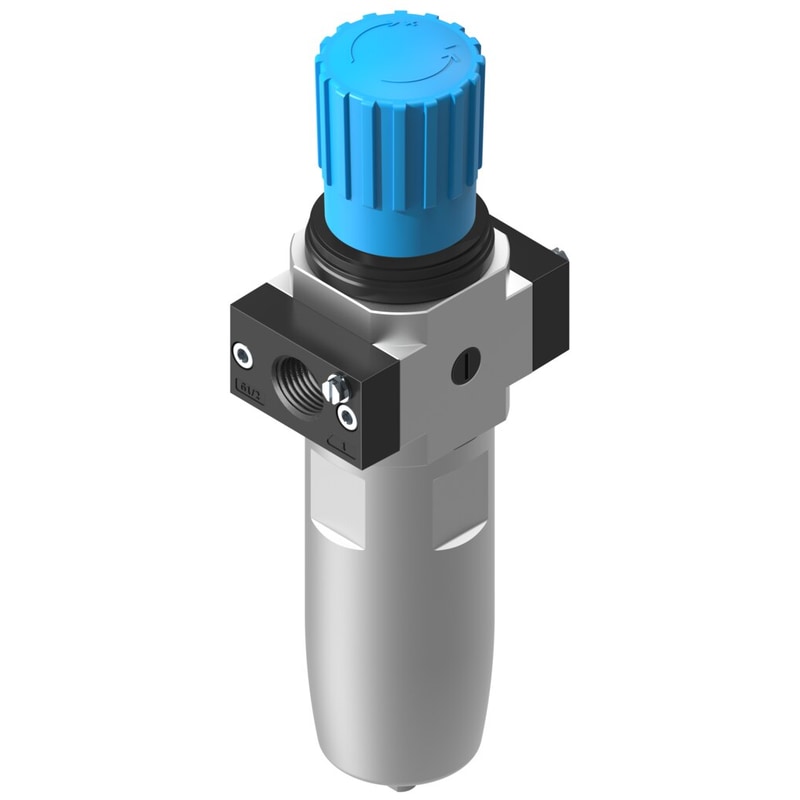

LFR-1/2-D-5M-O-MIDI-T18-EX4
$209.28
