valve VOFC-L-M52-M-FG14-F19A Valve function=5/2 monostable, Type of actuation=electrical, Width=40 mm, Standard nominal flow rate=1030 l/min, Operating pressure=2,5 – 8 bar

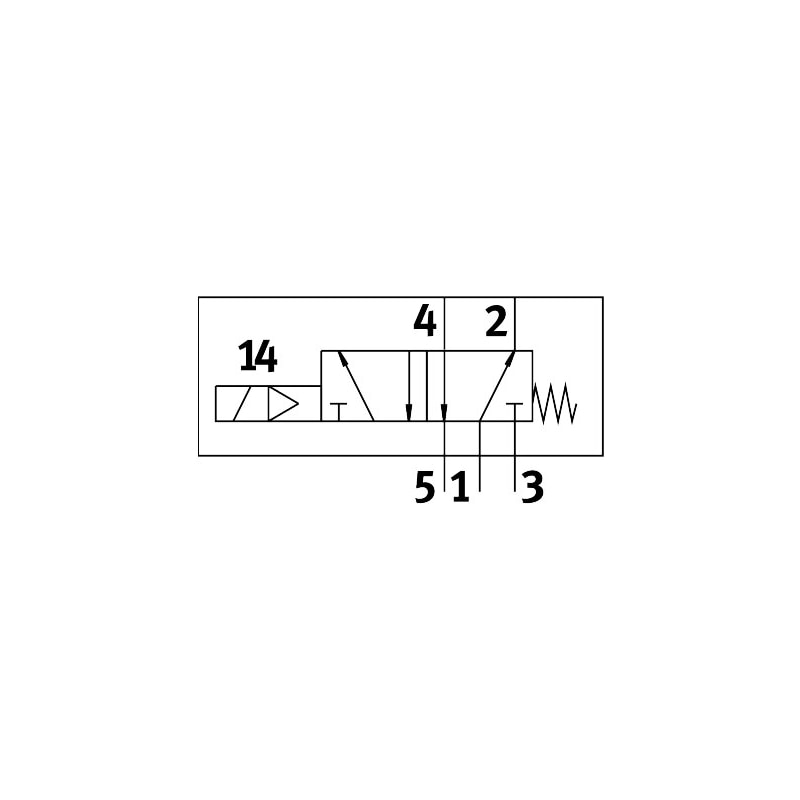

Valve function | 5/2 monostable |
---|---|
Type of actuation | electrical |
Width | 40 mm |
Standard nominal flow rate | 1,030 l/min |
Operating pressure | 2.5 … 8 bar |
Design structure | Piston slide |
Type of reset | mechanical spring |
Protection class | IP65 |
Nominal size | 6 mm |
Sealing principle | soft |
Assembly position | Any |
Manual override | None |
Type of piloting | Piloted |
