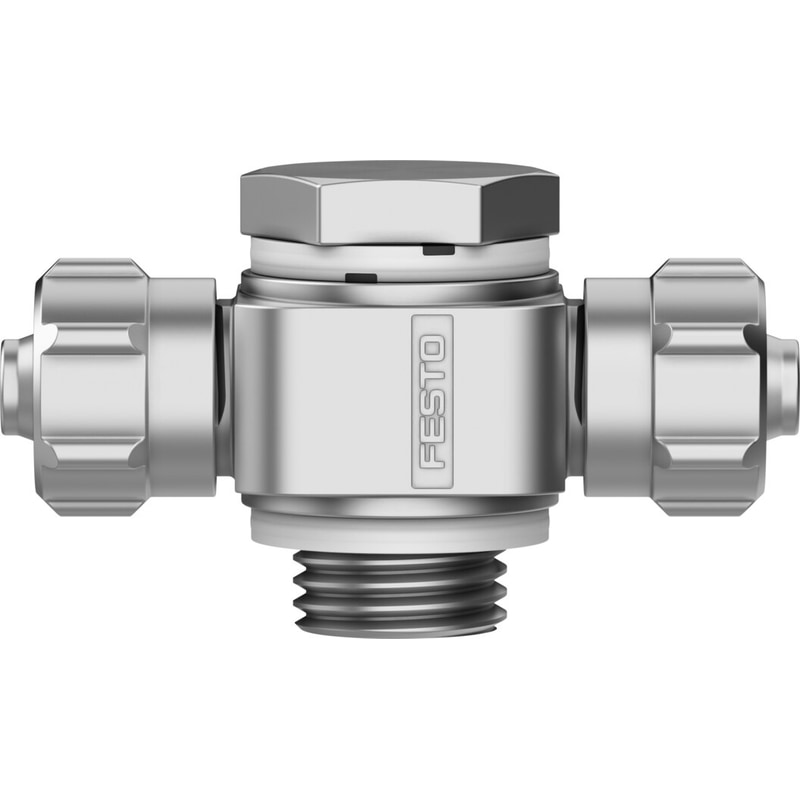

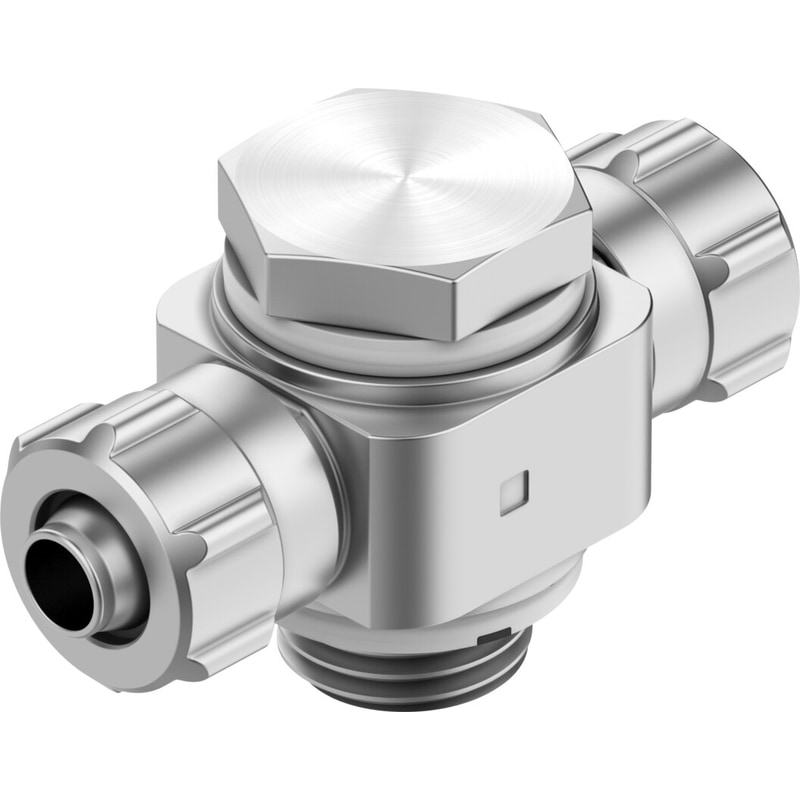

Name: TCK-1/8-PK-4 T quick connector
Brand: Festo
SKU: 4485
Availability: InStock

quick T-connector TCK-1/8-PK-4 Swivelling with 2 sealing rings. Nominal size=2,9 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Pneumatic connection, port 1=Male thread G1/8, Pneumatic connection, port 2=for barbed connector internal diameter 4 mm with nut

Fitting Type	n/a
Nominal size	2.9 mm
Type of seal on screw-in stud	Sealing ring
Assembly position	Any
connection 1	Male thread G1/8
connection 2	for barbed connector internal diameter 4 mm with nut
Materials note	Conforms to RoHS
Material housing	Aluminium

Weight	0.064959 lbs
Dimensions	5.511811 × 3.937008 × 0.787402 in
Pneumatic connection, port 1	Male thread G1/8
Pneumatic connection, port 2	For tubing outside diameter of 6 mm – For barbed fitting inside diameter of 4 mm with nut
Ambient temperature	-10?C – 60?C
Material housing	Die-cast zinc
