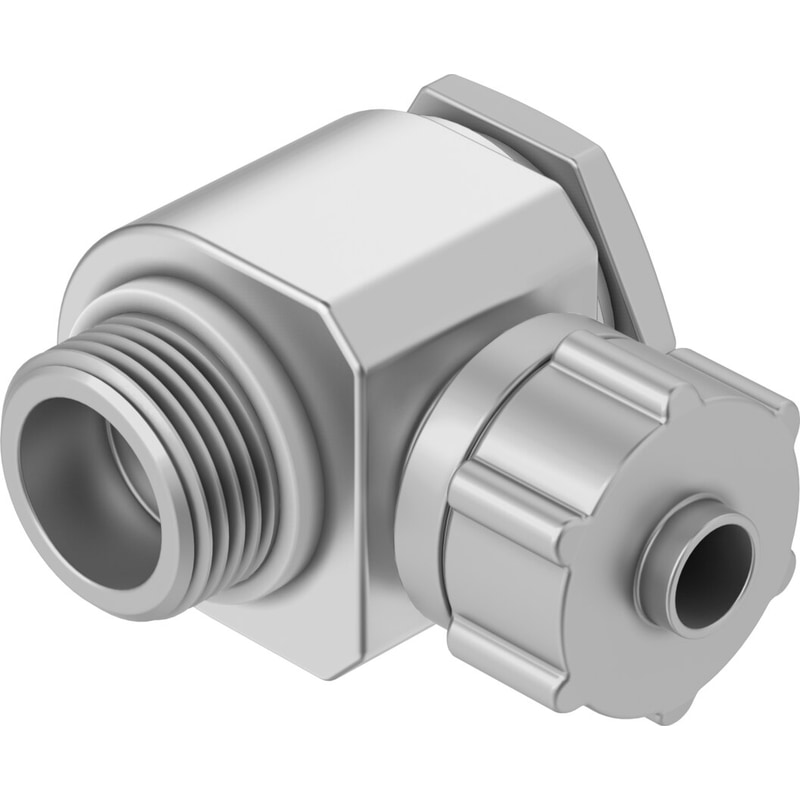

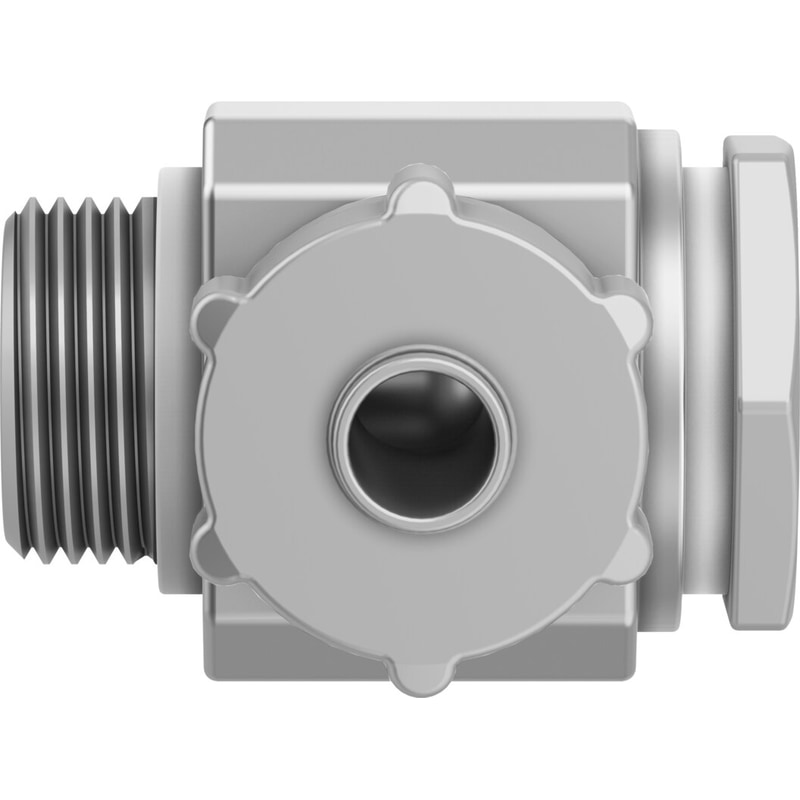

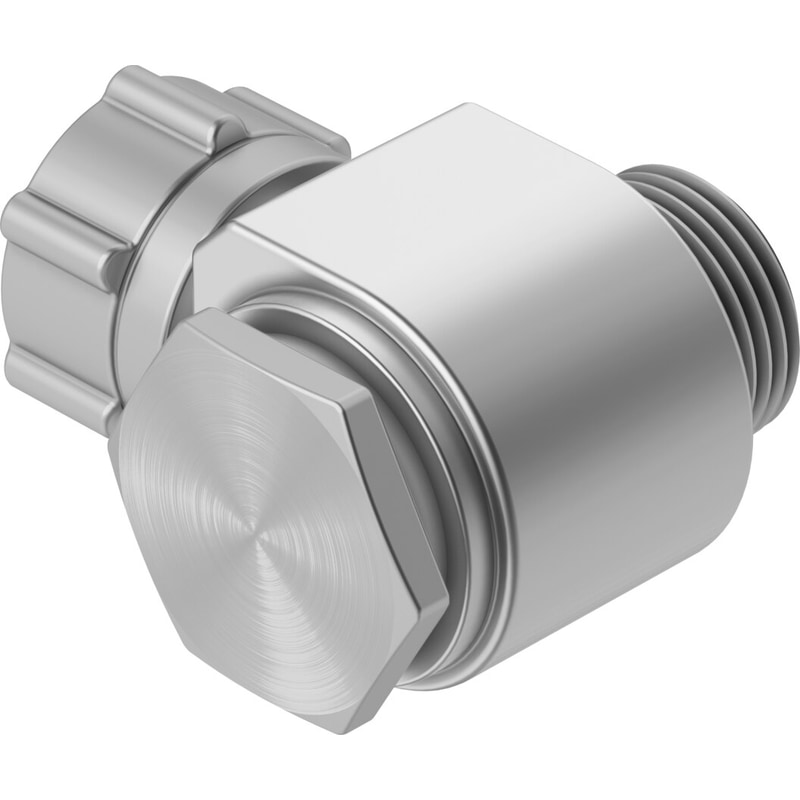

LCK-3/8-PK-9 Elbow quick connector - Image 2

LCK-3/8-PK-9 Elbow quick connector

Name: LCK-3/8-PK-9 Elbow quick connector
Brand: Festo
SKU: 4474
Availability: InStock

$24.47

Price per unit

Sold in packs of 10

SKU: 4474 Category: CK Tags: 2021u, fitting50, Pack of 10

CK_ENUS.PDF

Brand: Festo

elbow quick connector LCK-3/8-PK-9 Swivelling with 2 sealing rings. Nominal size=8 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Pneumatic connection, port 1=Male thread G3/8, Pneumatic connection, port 2=for barbed connector internal diameter 9 mm with nut

Fitting Type	Miniature Barb Elbow
Nominal size	8 mm
Type of seal on screw-in stud	Sealing ring
Assembly position	Any
connection 1	Male thread G3/8
connection 2	for barbed connector internal diameter 9 mm with nut
Materials note	Free of copper and PTFEConforms to RoHS
Material housing	Zinc die-casting

Weight	0.152119 lbs
Dimensions	1.338583 × 1.338583 × 0.748031 in
Pneumatic connection, port 1	Male thread G3/8
Pneumatic connection, port 2	For barbed fitting inside diameter of 9 mm with nut
Ambient temperature	-10?C – 60?C
