| Valve function | 3/2, open/closed, monostable |
|---|---|
| Lap | Zero overlap |
| Cover material | PA-reinforced |
| Max. force on actuator | 200 N |
| Max. transverse load on actuator | 200 N |
| Actuation type | Manual |
| Width | 20 mm |
| Standard nominal flow rate | 870 l/min |
| Pneumatic working port | NPT1/4-18 |
| Operating pressure | -0.95 bar … 10 bar |
| Design | Plate seat |
| Reset method | Mechanical spring |
| Nominal width | 6 mm |
| Type code | VHEF |
| Exhaust air function | With flow control option |
| Application note | Operate by hand only |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of control | Direct |
| Flow direction | Reversible |
| Symbol | 995893 |
| Max. switching frequency | 0.5 Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Actuating torque | 0.6 Nm |
| Product weight | 230 g |
| Type of mounting | With through-holeFront panel mountingOptionally: |
| Pneumatic connection 1 | NPT1/4-18 |
| Pneumatic connection 2 | NPT1/4-18 |
| Pneumatic connection 3 | NPT1/4-18 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Wrought aluminum alloyAnodized |
| Lever material | PA-reinforced |
VHEF

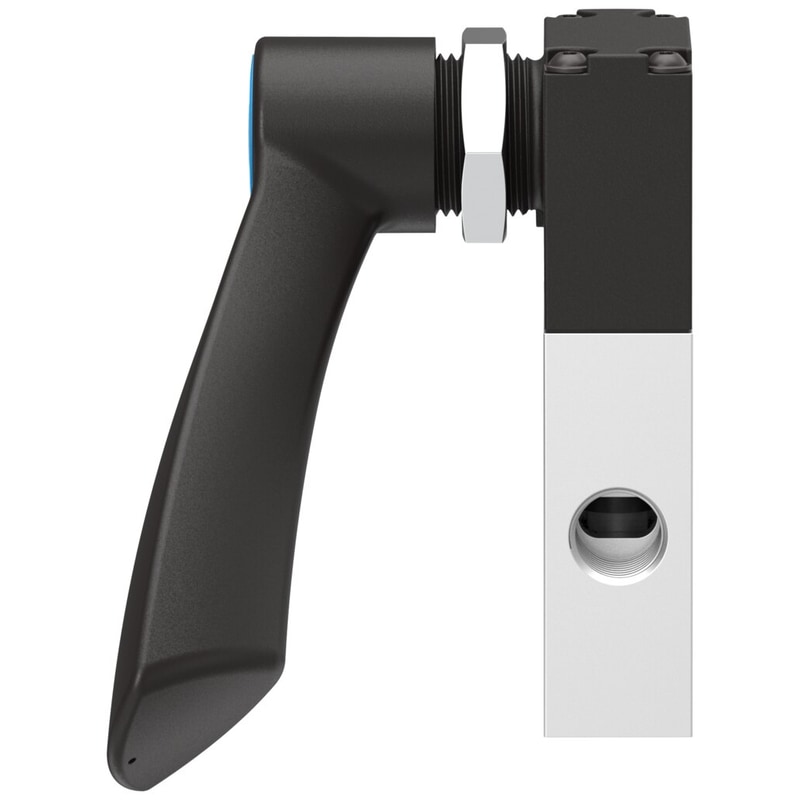

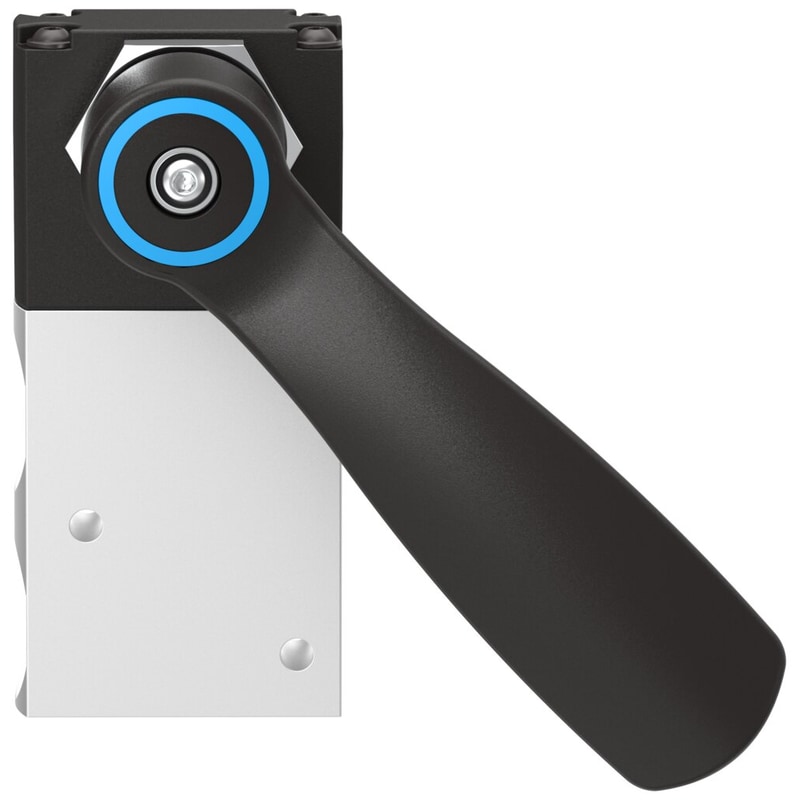

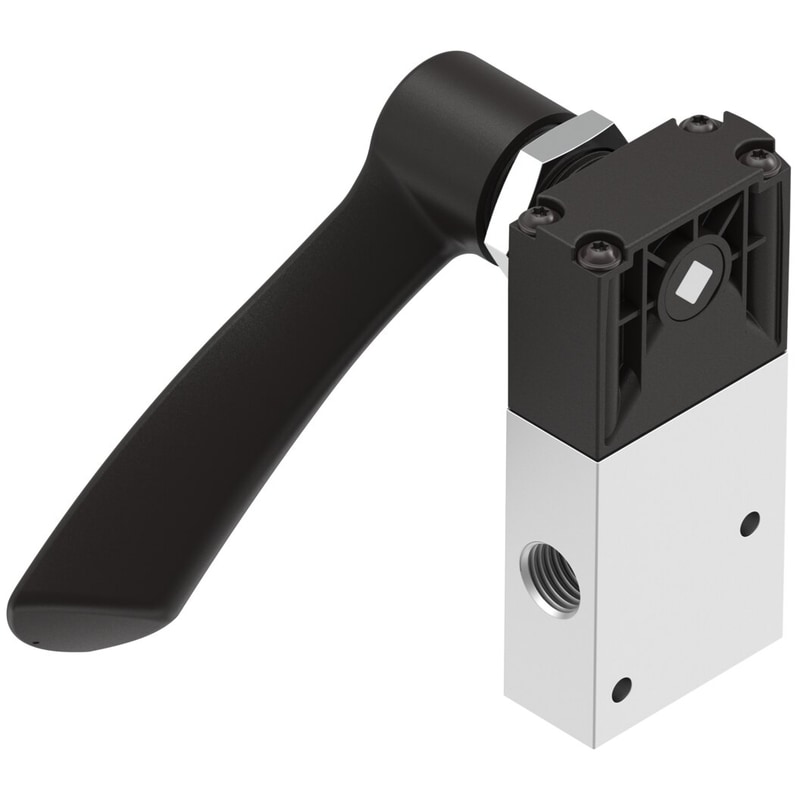

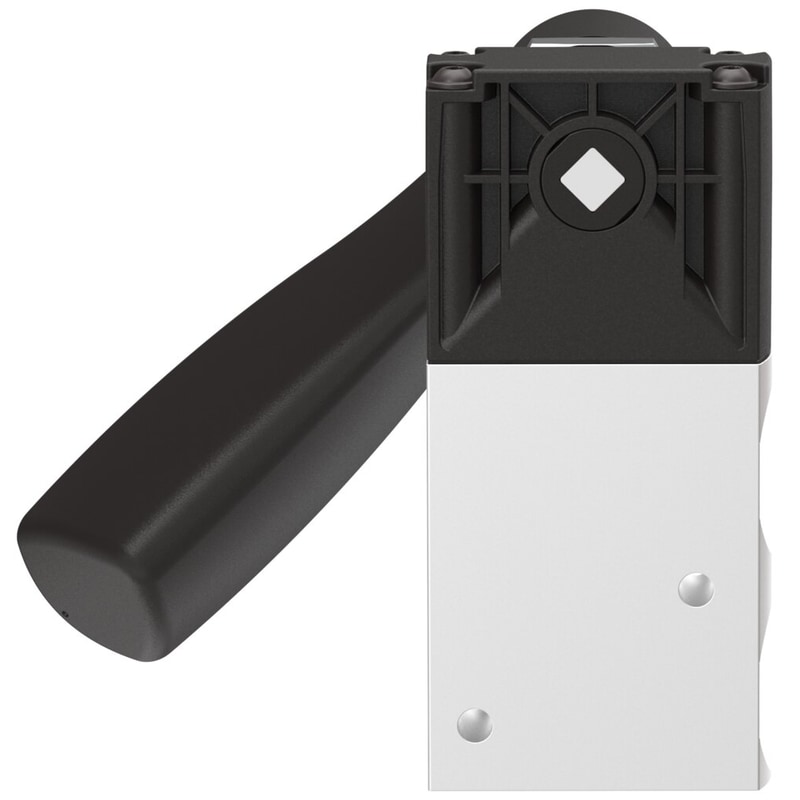

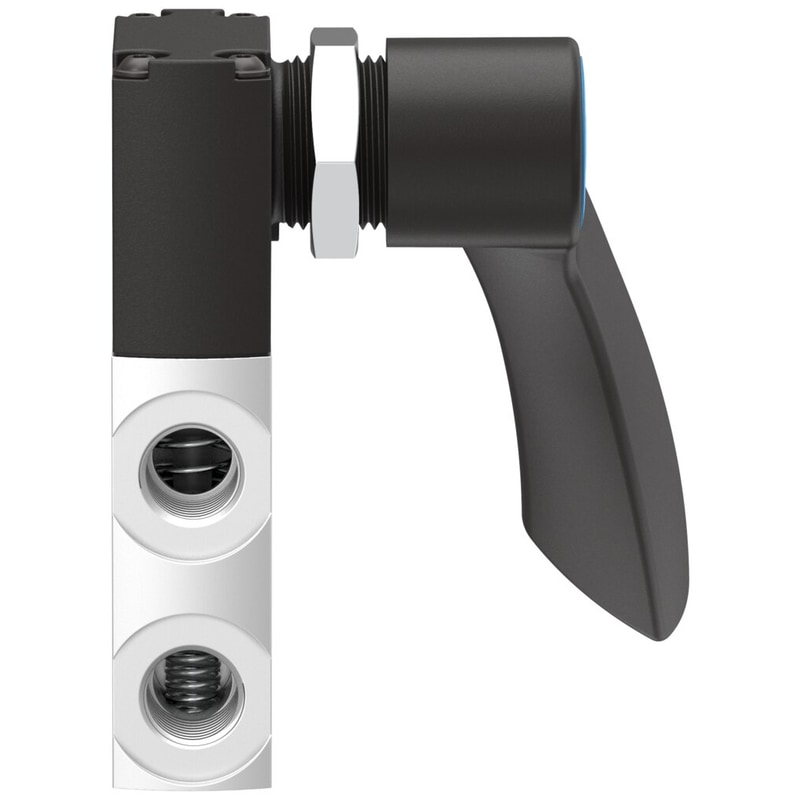

VHEF-HST-M32-M-N14
$210.14
Directly controlled, manually actuated valve. Available as a hand lever, selector switch, or finger lever.
