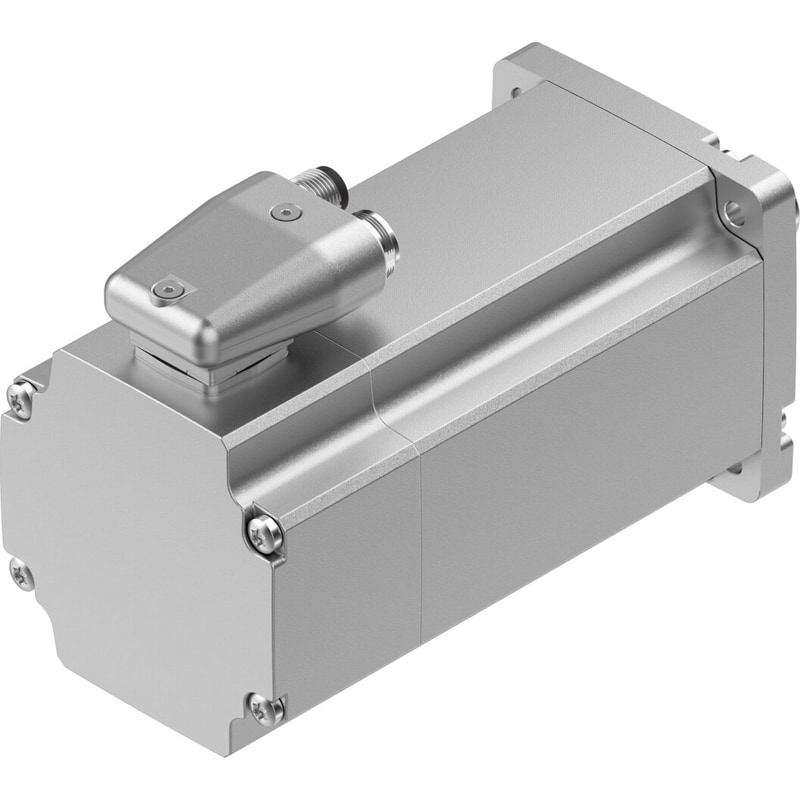

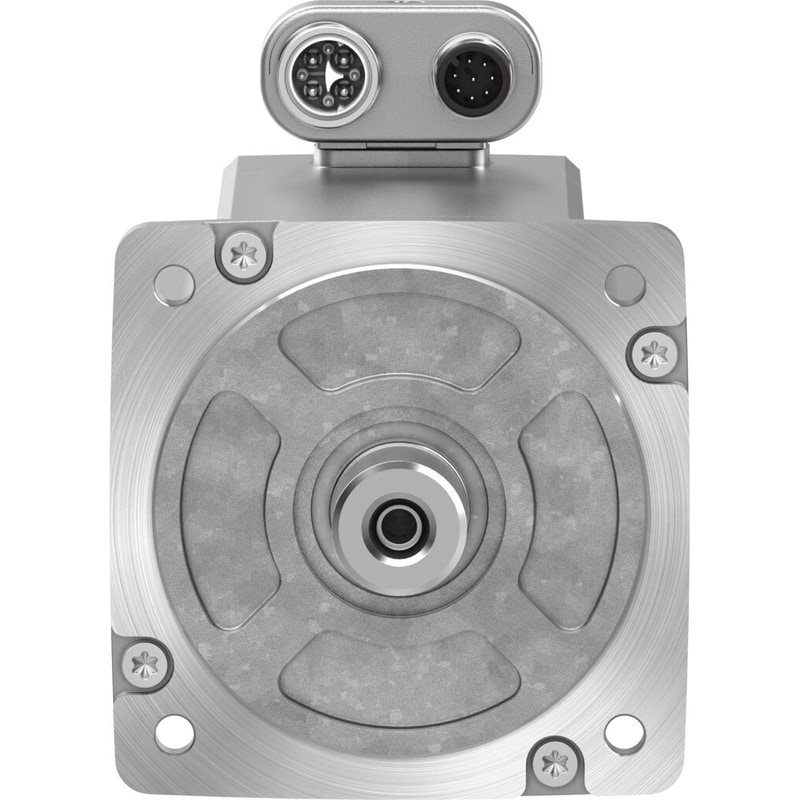

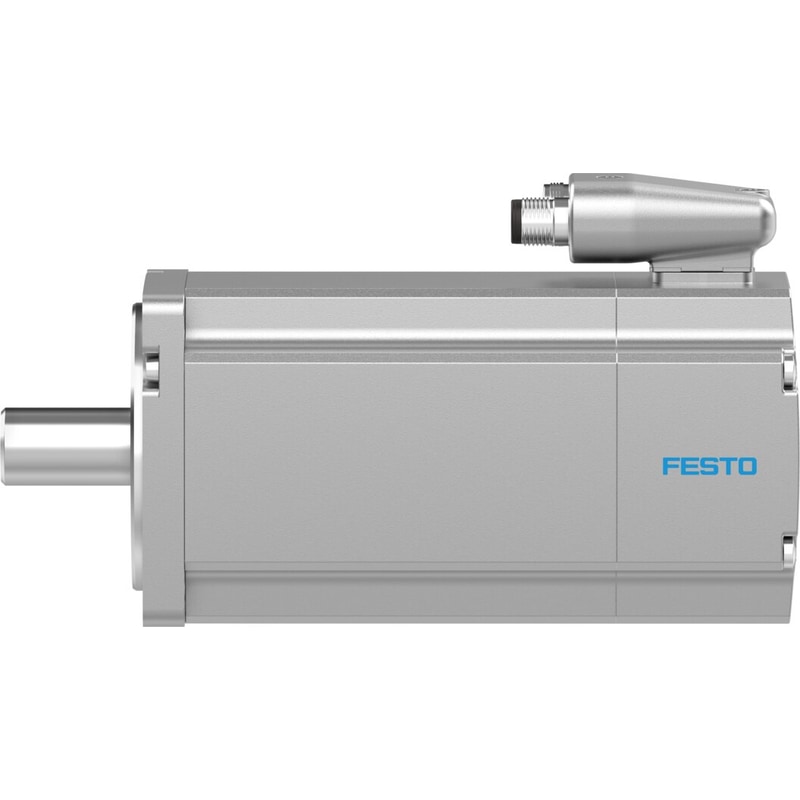

Reliable and powerful AC synchronous servo motor with optimized connection technology for dynamic applications.

SKU: 4267586 Category: Tag:
Number of pole pairs 3
Type code EMME-AS
Rotor position sensor Safety encoder, absolute multi-turn
Rotor position sensor interface RS422 TTL A/B channels + zero index
Rotor position sensor measuring principle Optical
Safety Integrity Level (SIL), subcomponent SILCL 2, rotor position sensorSIL 2, rotor position sensor
Performance Level (PL), subcomponent Category 3, performance level d, rotor position sensor
PFHd, subcomponent 1.3 x 10E-8, rotor position sensor
Duration of use Tm, subcomponent 20 years, rotor position sensor
Max. rotational speed 4192 1/min
Nominal rotary speed 3000 1/min
Continuous stall current 1.8 A
Insulation protection class F
Motor constants 1.438 Nm/A
Nominal operating voltage DC 565 V
Motor nominal power 720 W
DC nominal voltage 565 V
Motor nominal current 1.6 A
Typical rotor position sensor resolution 15 bit
Rotor position encoder, typical angular accuracy 20 arcmin
Rotor position encoder, sinusoidal/cosinusoidal periods per revolution 128
Phase-phase winding resistance 14.2 Ohm
Winding inductance phase-phase 30 mH
Peak current 7.2 A
Voltage constant, phase-to-phase 95.3 mVmin
Rating class according to EN 60034-1 S1
CE marking (see declaration of conformity) As per EU EMC directiveAs per EU low voltage directive
Corrosion resistance class (CRC) 0 – No corrosion stress
Storage temperature -20 °C … 70 °C
Relative air humidity 0 – 90 %
Degree of protection IP21
Ambient temperature -10 °C … 40 °C
Certification RCM compliance markc UL us – Recognized (OL)
Total output inertia moment 1.4 kgcm²
Nominal torque 2.3 Nm
Peak torque 11.2 Nm
Stall torque 2.8 Nm
Permissible axial shaft load 70 N
Permissible radial shaft load 350 N
MTTFd, subcomponent 874 years, rotor position sensor
Product weight 3050 g
Electrical connection technology Plug
Note on materials Contains paint-wetting impairment substancesRoHS-compliant
Conforms to standard IEC 60034
Featherkey shaft design A 6 x 6 x 22DIN 6885
