| Number of pole pairs | 3 |
|---|---|
| Type code | EMME-AS |
| Rotor position sensor | Safety encoder, absolute multi-turn |
| Rotor position sensor interface | RS422 TTL A/B channels + zero index |
| Rotor position sensor measuring principle | Optical |
| Safety Integrity Level (SIL), subcomponent | SILCL 2, rotor position sensorSIL 2, rotor position sensor |
| Performance Level (PL), subcomponent | Category 3, performance level d, rotor position sensor |
| PFHd, subcomponent | 1.3 x 10E-8, rotor position sensor |
| Duration of use Tm, subcomponent | 20 years, rotor position sensor |
| Max. rotational speed | 5131 1/min |
| Nominal rotary speed | 3000 1/min |
| Continuous stall current | 0.9 A |
| Insulation protection class | F |
| Motor constants | 0.75 Nm/A |
| Nominal operating voltage DC | 360 V |
| Motor nominal power | 190 W |
| DC nominal voltage | 360 V |
| Motor nominal current | 0.8 A |
| Typical rotor position sensor resolution | 15 bit |
| Rotor position encoder, typical angular accuracy | 20 arcmin |
| Rotor position encoder, sinusoidal/cosinusoidal periods per revolution | 128 |
| Phase-phase winding resistance | 26.4 Ohm |
| Winding inductance phase-phase | 31.9 mH |
| Peak current | 3.6 A |
| Voltage constant, phase-to-phase | 49.6 mVmin |
| Rating class according to EN 60034-1 | S1 |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU low voltage directive |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Storage temperature | -20 °C … 70 °C |
| Relative air humidity | 0 – 90 % |
| Degree of protection | IP21 |
| Ambient temperature | -10 °C … 40 °C |
| Certification | RCM compliance markc UL us – Recognized (OL) |
| Total output inertia moment | 0.22 kgcm² |
| Nominal torque | 0.6 Nm |
| Peak torque | 2.8 Nm |
| Stall torque | 0.7 Nm |
| Permissible axial shaft load | 50 N |
| Permissible radial shaft load | 250 N |
| MTTFd, subcomponent | 874 years, rotor position sensor |
| Product weight | 1300 g |
| Electrical connection technology | Plug |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Conforms to standard | IEC 60034 |

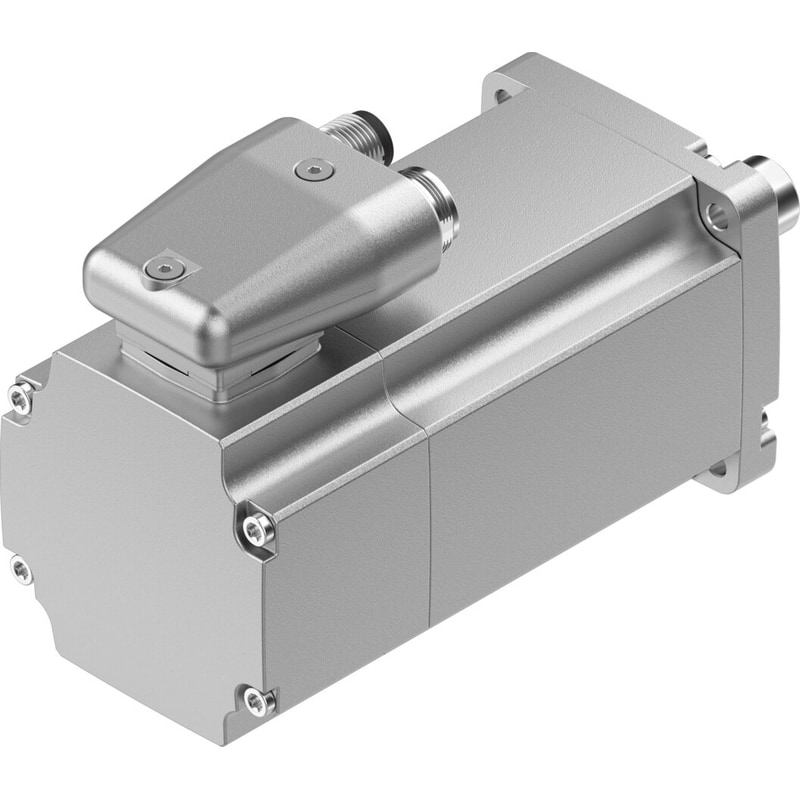

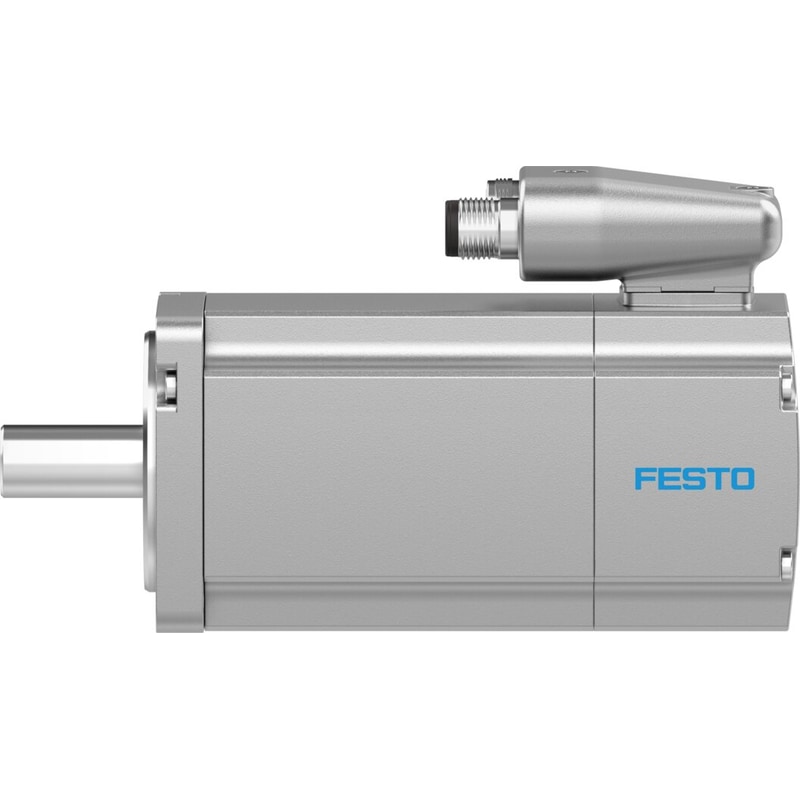

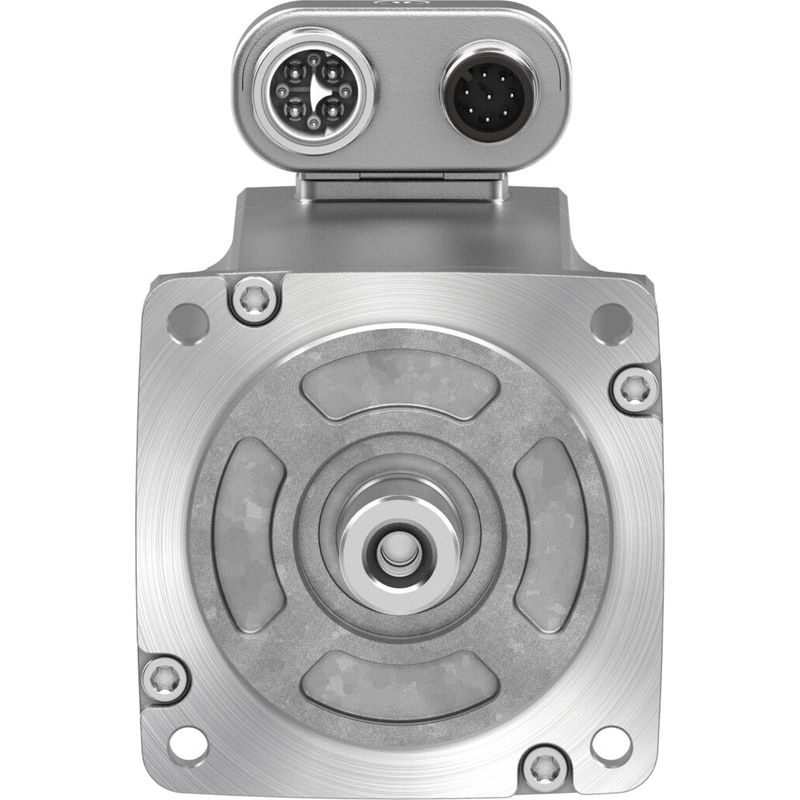

EMME-AS-60-S-LS-AMX
$2,047.83
Reliable and powerful AC synchronous servo motor with optimized connection technology for dynamic applications.
