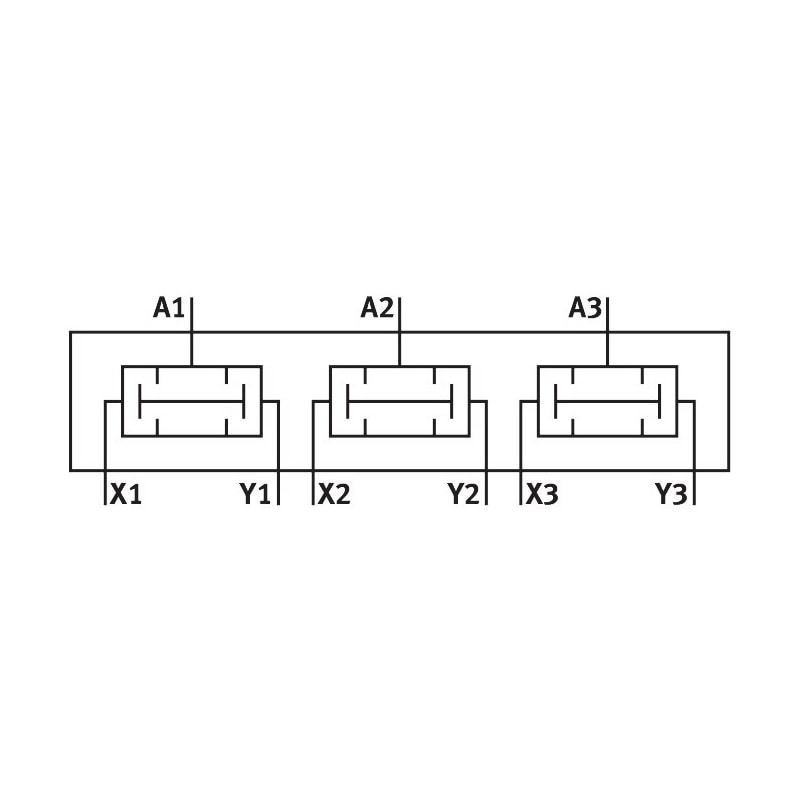

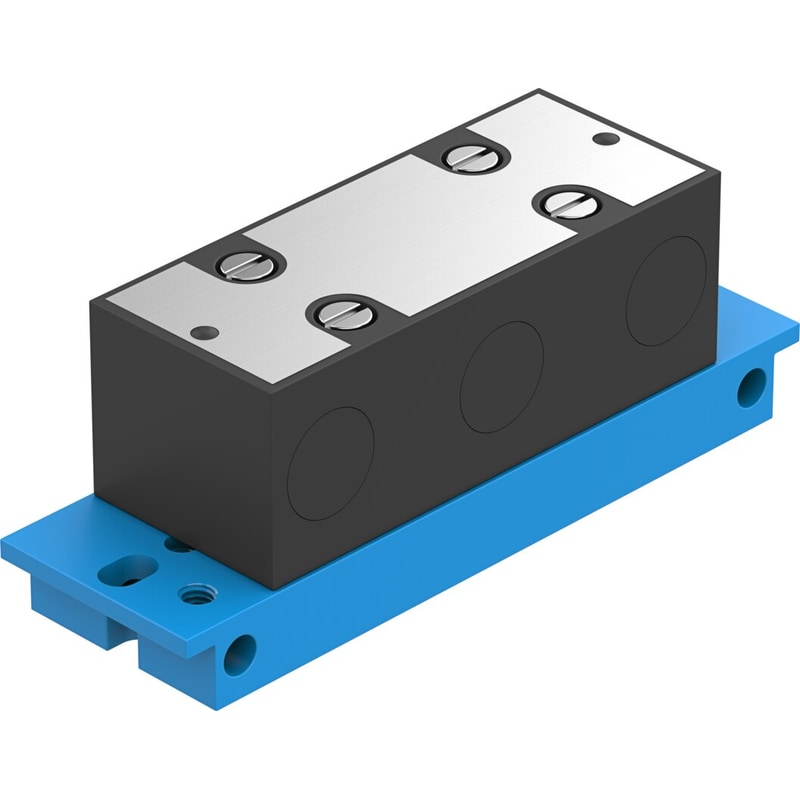

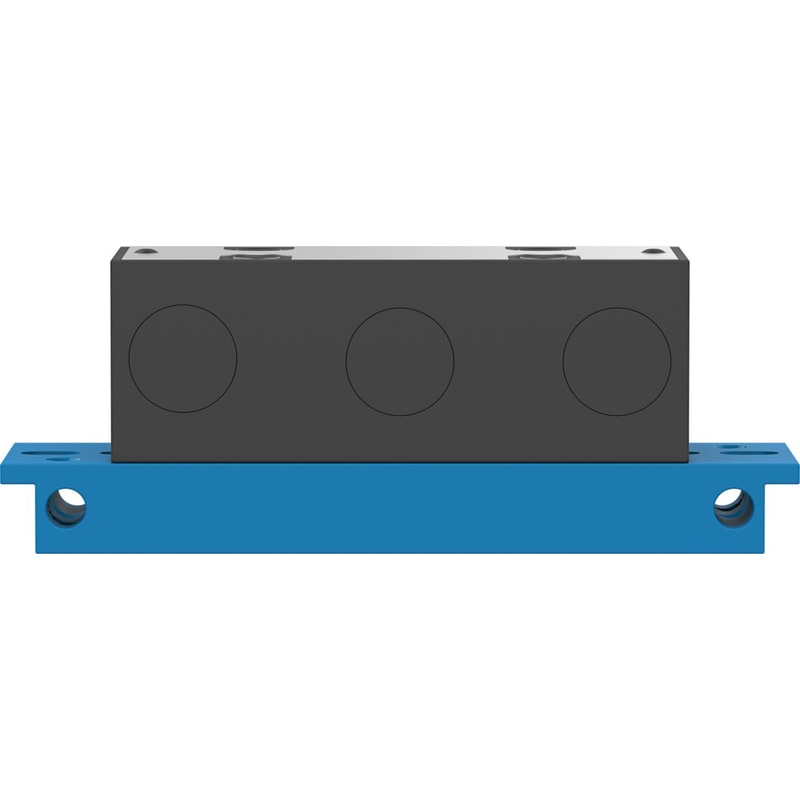

AND block ZK-PK-3-6/3 Valve function=AND function, Pneumatic connection, port 1=PK-3, Pneumatic connection, port 2=PK-3, Mounting type=Front panel installation, Standard nominal flow rate=100 l/min
| Valve function | AND function |
|---|---|
| Pneumatic connection, port 1Â | PK-3 |
| Pneumatic connection, port 2Â | PK-3 |
| Mounting type | Front panel installation |
| Standard nominal flow rate | 100 l/min |
| Operating pressure | 1.6 … 8 bar |
| Ambient temperature | ‘-10 … 60 °C |
| Material housing | POM |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Nominal size | 2.5 mm |
| Assembly position | Any |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | ‘-10 … 60 °C |
