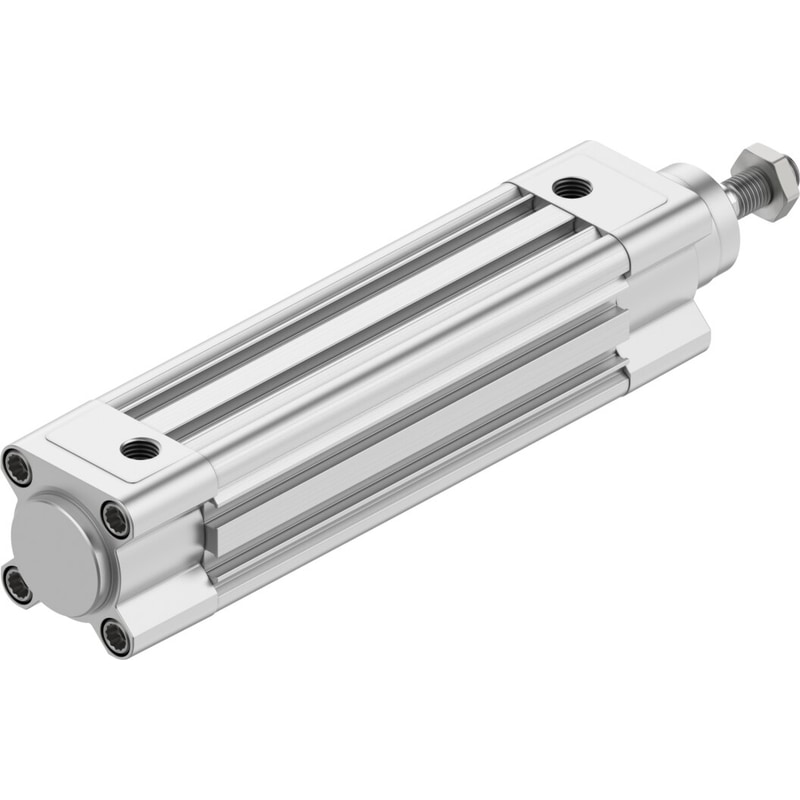

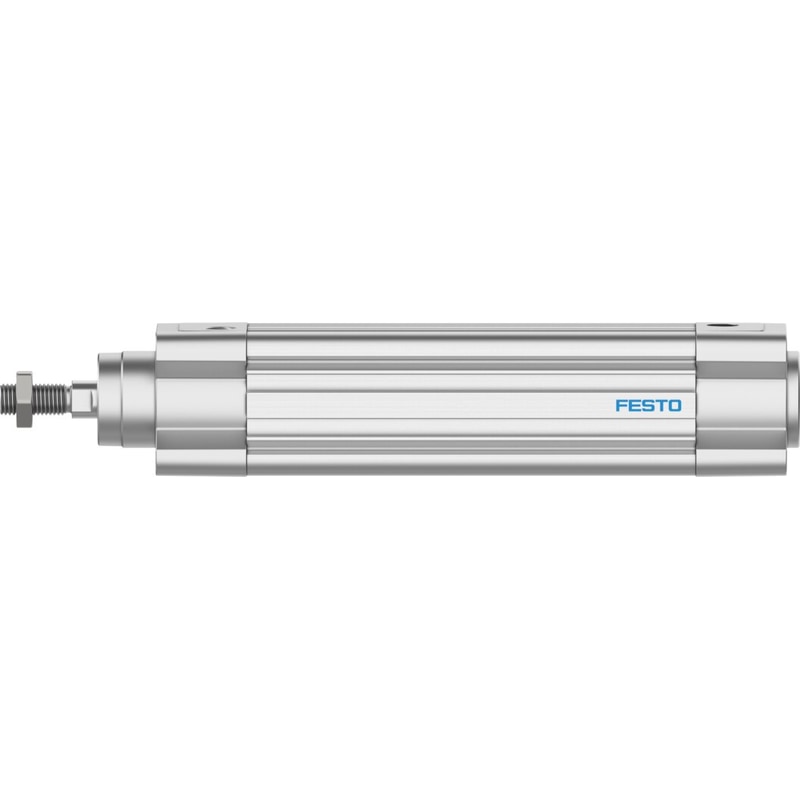

ISO cylinder DSBC-32-100-D3-PPSA-N3 with self-adjusting pneumatic end position cushioning Stroke=100 mm, Piston diameter=32 mm, Piston rod thread=M10x1,25, Cushioning=PPS: Self-adjusting pneumatic end-position cushioning, Assembly position=Any
Stroke | 100 mm |
---|---|
Piston diameter | 32 mm |
Piston rod thread | M10x1,25 |
Cushioning | PPS: Self-adjusting pneumatic end-position cushioning |
Assembly position | Any |
Conforms to standard | ISO 15552 |
Piston-rod end | Male thread |
Design structure | PistonPiston rodProfile barrel |
Position detection | For proximity sensor |
Variants | Single-ended piston rod |
Operating pressure | 0.6 … 12 bar |
Mode of operation | double-acting |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
