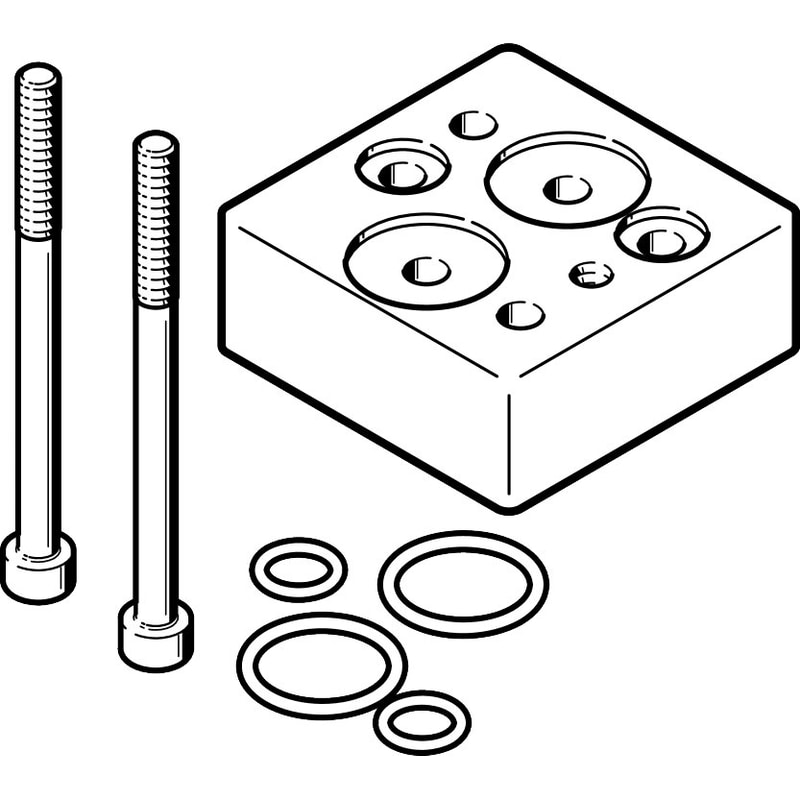

mounting plate VAME-S7-P-N-V14-A Assembly position=Any, Operating pressure=0 – 10 bar, Operating pressure [psi]=0 – 145 psi, Operating medium=Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC=4 – Very high corrosion stress
| Assembly position | Any |
|---|---|
| Operating pressure | 0 … 10 bar |
| Operating pressure [psi]Â | 0 … 145 psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Corrosion resistance classification CRCÂ | 4 – Very high corrosion stress |
| Protection class | IP65 |
| Mounting type | with through hole |
| Pneumatic connection, port 1Â | M5NAMUR port pattern |
| Pneumatic connection, port 2Â | Flange 1/4NAMUR port pattern |
| Pneumatic connection, port 3Â | G1/4 |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material seals | NBR |
| Material plate | Aluminium (Ematal coated) |
