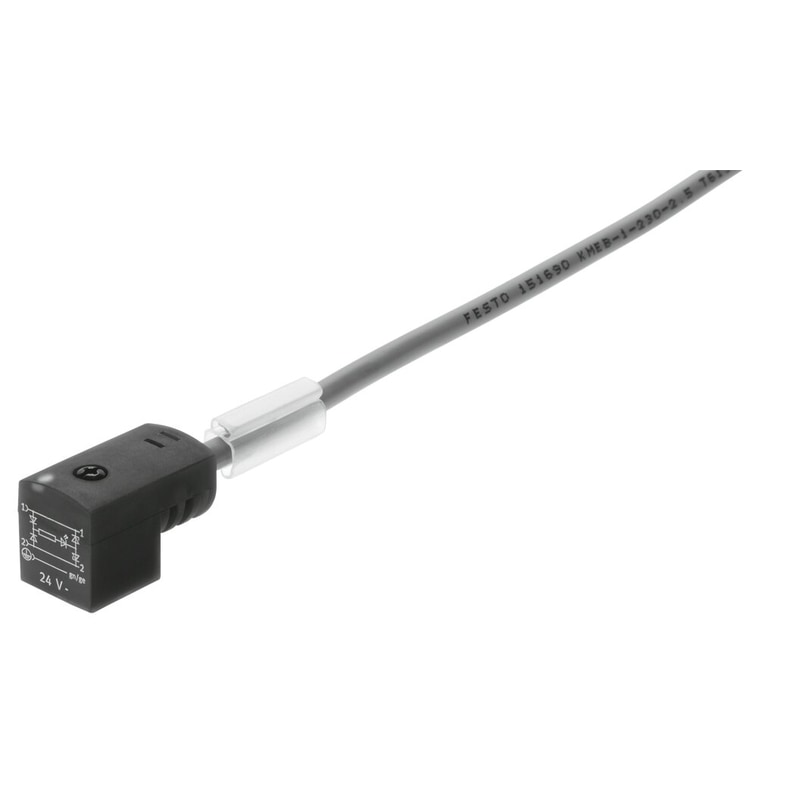

| Type code | KME |
|---|---|
| Switching position indication | LED |
| Type of mounting | On air solenoid valve with M3 central screw |
| Product weight | 135 g |
| Electrical connection 1 | Angled socket, rectangular design, 3-pin, form C |
| Electrical connection 2 | Open end, 2-wire |
| Nominal operating voltage DC | 24 V |
| Current rating at 40°C | 0.166666666666667 |
| Protective earth connection | Not available |
| Cable length | 2.5 m |
| Cable characteristic | for static applications |
| Min. cable bending radius | 52 mm |
| Cable diameter | 5.2 mm |
| Cable diameter tolerance | ± 0.1 mm |
| Cable design | 2 x 0.75 mm² |
| Degree of protection | IP67as per IEC 60529 |
| Ambient temperature | -20 °C … 80 °C |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Material of cable sheath | PVC |
| Housing material | TPE-U(PU) |
| Seals material | NBR |
| Material of pin contacts | Bronze |
| Mounting position | Any |
| Weight | 0.282104 lbs |
|---|---|
| Dimensions | 5.905512 × 5.905512 × 0.393701 in |
| Electrical connection 1 | 3-pin, Angled socket, square design, type C |
| Electrical connection 2 | 2-wire, Open end |
| Cable length | 2.5 m |
