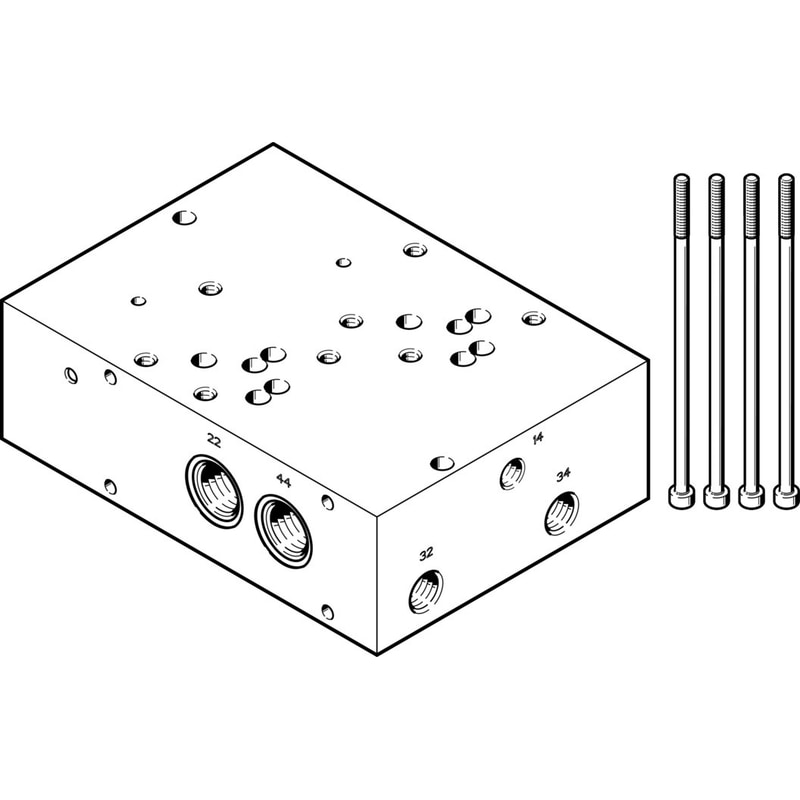

sub-base VABP-S1-2V1G-G38-2 Width=54 mm, Function port 32=G1/8, Function port 34=G1/4, Pneumatic port 22=(* Sub-base, * G3/8), Pneumatic port 44=(* Sub-base, * G3/8)
| Width | 54 mm |
|---|---|
| Function port 32Â | G1/4 |
| Function port 34Â | G1/4 |
| Pneumatic port 22Â | Sub-baseG3/8 |
| Pneumatic port 44Â | Sub-baseG3/8 |
| Assembly position | Any |
| Operating pressure | 0 … 16 bar |
| Standard nominal flow rate | 2,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [6:4:4] |
| Corrosion resistance classification CRCÂ | 0 – No corrosion stress |
| Medium temperature | 0 … 50 °C |
| Ambient temperature | 0 … 50 °C |
| Product weight | 1,950 g |
