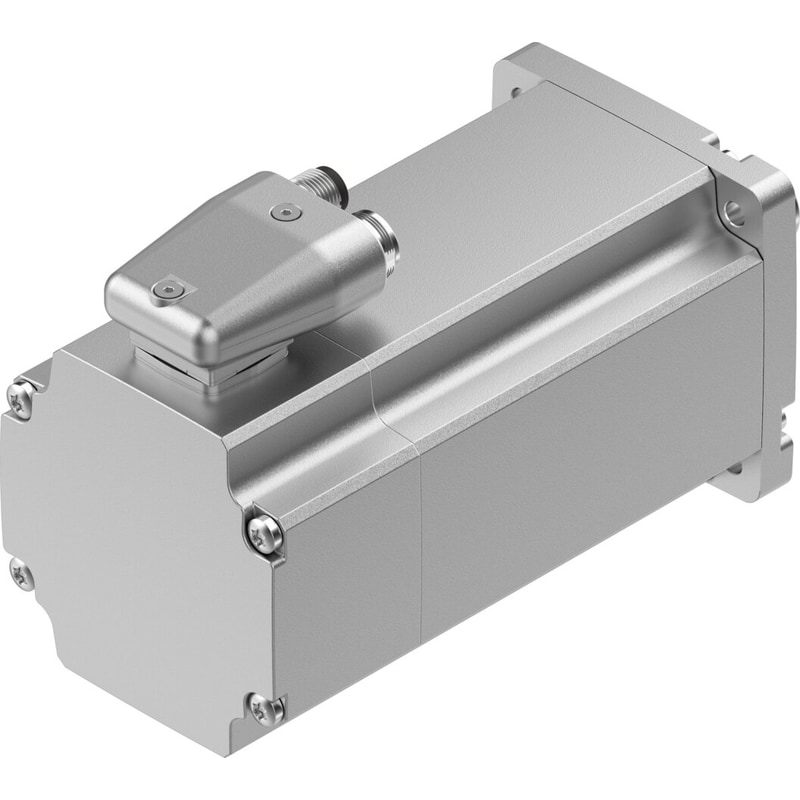

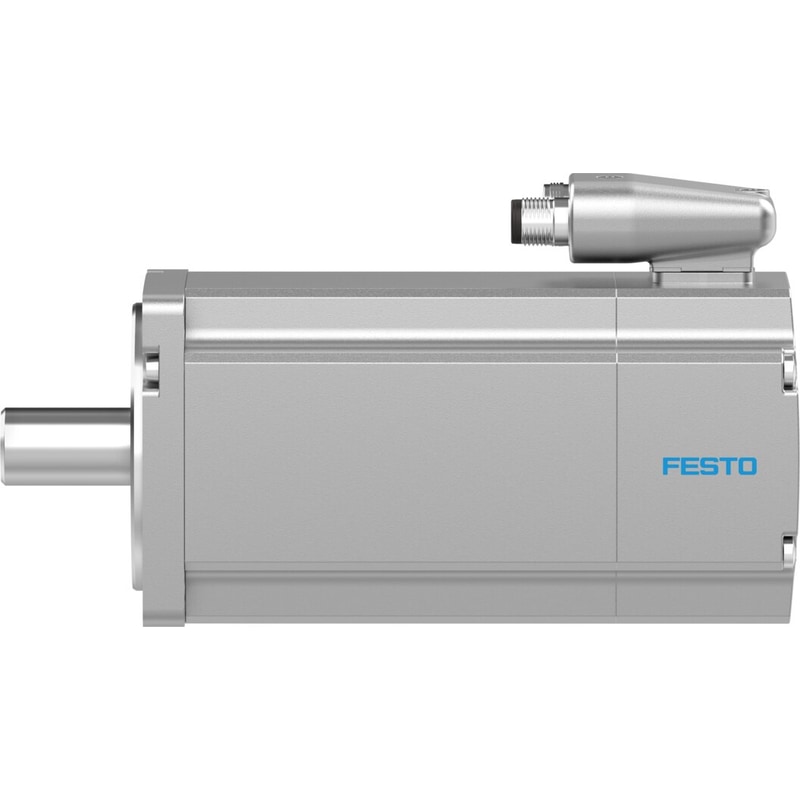

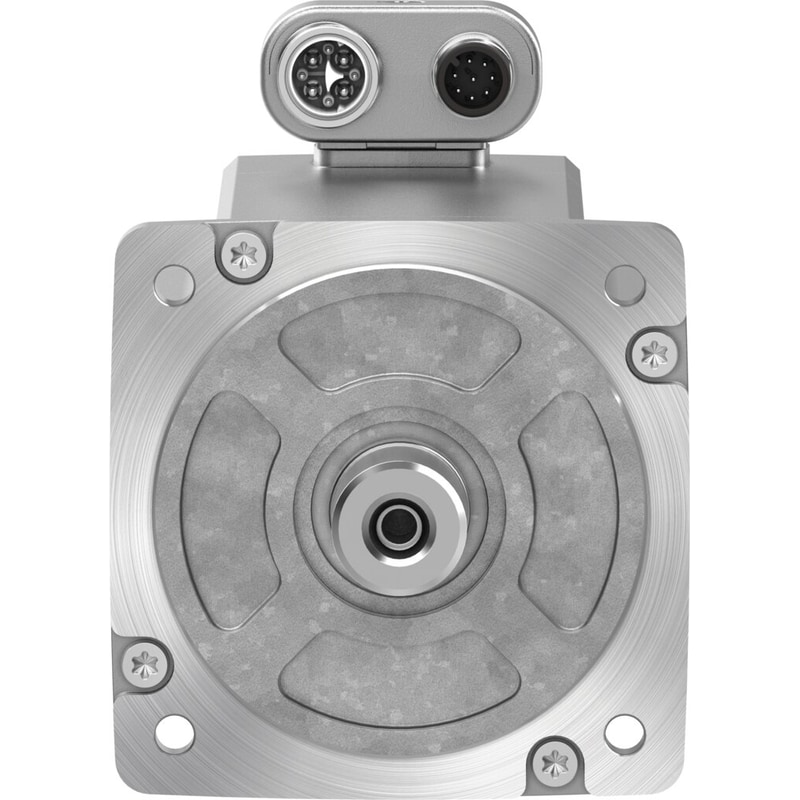

EMME-AS-80-S-HS-AM

$1,255.50

Reliable and powerful AC synchronous servo motor with optimized connection technology for dynamic applications.

SKU: 2093137 Category: Tag:
Festo
Number of pole pairs 3
Type code EMME-AS
Rotor position sensor Absolute encoder, multi-turn
Rotor position sensor interface RS422 TTL A/B channels + zero index
Rotor position sensor measuring principle Capacitive
Max. rotational speed 4192 1/min
Nominal rotary speed 3000 1/min
Continuous stall current 1.8 A
Insulation protection class F
Motor constants 1.438 Nm/A
Nominal operating voltage DC 565 V
Motor nominal power 720 W
DC nominal voltage 565 V
Motor nominal current 1.6 A
Typical rotor position sensor resolution 12 bit
Rotor position encoder, typical angular accuracy 20 arcmin
Rotor position encoder, sinusoidal/cosinusoidal periods per revolution 16
Phase-phase winding resistance 14.2 Ohm
Winding inductance phase-phase 30 mH
Type of winding switch Star inside
Peak current 7.2 A
Voltage constant, phase-to-phase 95.3 mVmin
Rating class according to EN 60034-1 S1
Corrosion resistance class (CRC) 0 – No corrosion stress
Storage temperature -20 °C … 70 °C
Relative air humidity 0 – 90 %
Degree of protection IP21
Ambient temperature -10 °C … 40 °C
Certification c UL us – Recognized (OL)RCM compliance mark
Total output inertia moment 1.4 kgcm²
Nominal torque 2.3 Nm
Peak torque 11.2 Nm
Stall torque 2.8 Nm
Permissible axial shaft load 70 N
Permissible radial shaft load 350 N
MTTFd, subcomponent 271 years, rotor position sensor
Product weight 3050 g
Electrical connection technology Plug
Note on materials RoHS-compliantContains paint-wetting impairment substances
Conforms to standard IEC 60034
