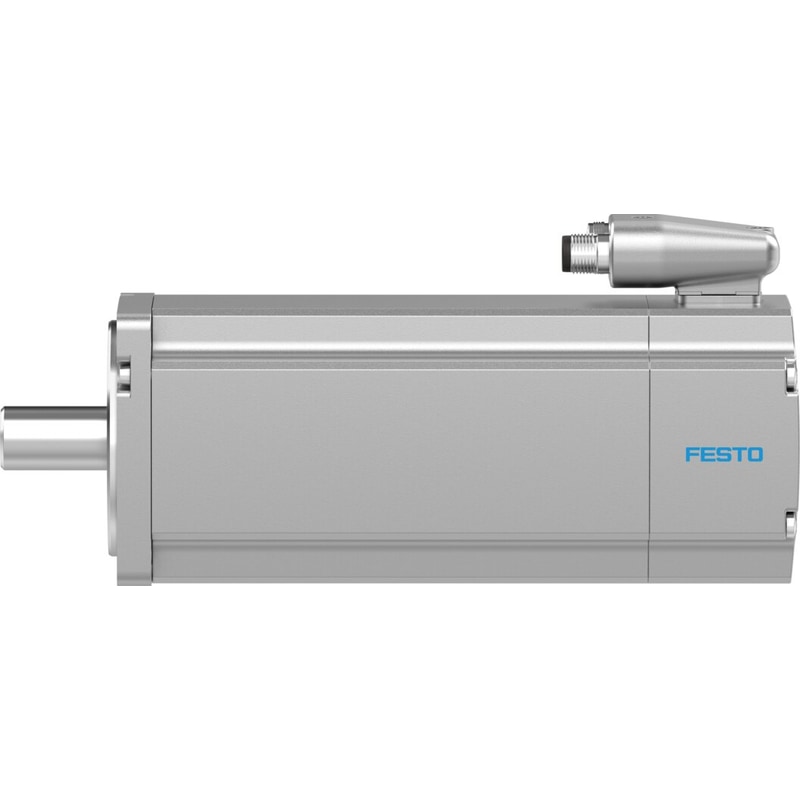

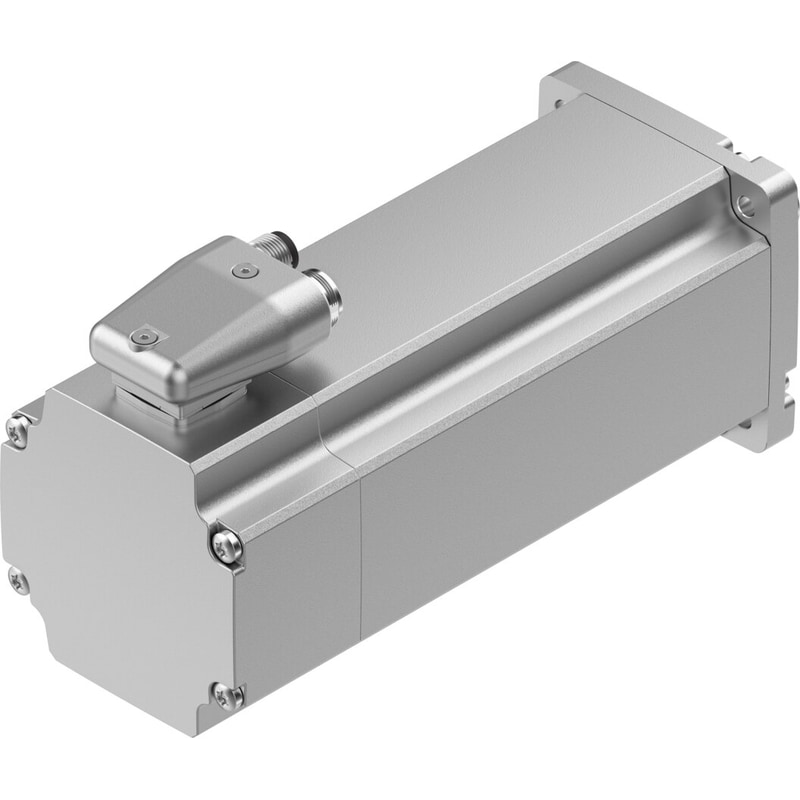

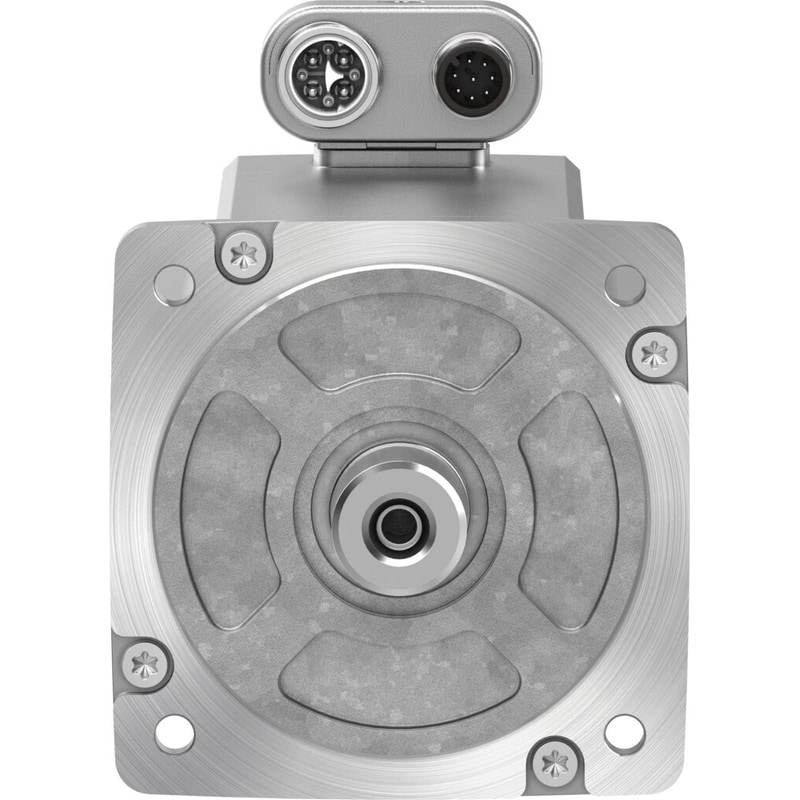

Reliable and powerful AC synchronous servo motor with optimized connection technology for dynamic applications.

SKU: 2093106 Category: Tag:
Number of pole pairs 3
Type code EMME-AS
Rotor position sensor Absolute encoder, single-turn
Rotor position sensor interface RS422 TTL A/B channels + zero index
Rotor position sensor measuring principle Capacitive
Max. rotational speed 4690 1/min
Nominal rotary speed 3000 1/min
Brake DC operating voltage 24 V
Continuous stall current 3.1 A
Insulation protection class F
Brake power consumption 12 W
Motor constants 0.923 Nm/A
Nominal operating voltage DC 360 V
Motor nominal power 750 W
DC nominal voltage 360 V
Motor nominal current 2.6 A
Typical rotor position sensor resolution 12 bit
Rotor position encoder, typical angular accuracy 20 arcmin
Rotor position encoder, sinusoidal/cosinusoidal periods per revolution 16
Phase-phase winding resistance 4.6 Ohm
Winding inductance phase-phase 9.46 mH
Type of winding switch Star inside
Peak current 12.4 A
Rating class according to EN 60034-1 S1
CE marking (see declaration of conformity) As per EU low voltage directiveAs per EU EMC directive
Corrosion resistance class (CRC) 0 – No corrosion stress
Storage temperature -20 °C … 70 °C
Relative air humidity 0 – 90 %
Degree of protection IP21
Ambient temperature -10 °C … 40 °C
Certification c UL us – Recognized (OL)RCM compliance mark
Total output inertia moment 1.68 kgcm²
Brake holding torque 4.5 Nm
Brake mass moment of inertia 0.222 kgcm²
Nominal torque 2.4 Nm
Peak torque 11.2 Nm
Stall torque 2.8 Nm
Permissible axial shaft load 70 N
Permissible radial shaft load 350 N
MTTF, subcomponent 797 years, holding brake
MTTFd, subcomponent 340 years, rotor position sensor
Switching cycles, holding brake 5 million idle actuations (without friction work!)
Product weight 3700 g
Electrical connection technology Plug
Note on materials RoHS-compliantContains paint-wetting impairment substances
Conforms to standard IEC 60034
