| Number of pole pairs | 2 |
|---|---|
| Type code | EMME-AS |
| Rotor position sensor | Absolute encoder, single-turn |
| Rotor position sensor interface | RS422 TTL A/B channels + zero index |
| Rotor position sensor measuring principle | Capacitive |
| Max. rotational speed | 10000 1/min |
| Nominal rotary speed | 9000 1/min |
| Continuous stall current | 1.6 A |
| Insulation protection class | F |
| Motor constants | 0.175 Nm/A |
| Nominal operating voltage DC | 360 V |
| Motor nominal power | 200 W |
| DC nominal voltage | 360 V |
| Motor nominal current | 1.2 A |
| Typical rotor position sensor resolution | 12 bit |
| Rotor position encoder, typical angular accuracy | 20 arcmin |
| Rotor position encoder, sinusoidal/cosinusoidal periods per revolution | 16 |
| Phase-phase winding resistance | 8.6 Ohm |
| Winding inductance phase-phase | 4.51 mH |
| Type of winding switch | Star inside |
| Peak current | 6.4 A |
| Voltage constant, phase-to-phase | 13.2 mVmin |
| Rating class according to EN 60034-1 | S1 |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Storage temperature | -20 °C … 70 °C |
| Relative air humidity | 0 – 90 % |
| Degree of protection | IP21 |
| Ambient temperature | -10 °C … 40 °C |
| Certification | c UL us – Recognized (OL)RCM compliance mark |
| Total output inertia moment | 0.054 kgcm² |
| Nominal torque | 0.21 Nm |
| Peak torque | 1.4 Nm |
| Stall torque | 0.35 Nm |
| Permissible axial shaft load | 12 N |
| Permissible radial shaft load | 115 N |
| MTTFd, subcomponent | 340 years, rotor position sensor |
| Product weight | 700 g |
| Electrical connection technology | Plug |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Conforms to standard | IEC 60034 |
EMME-AS

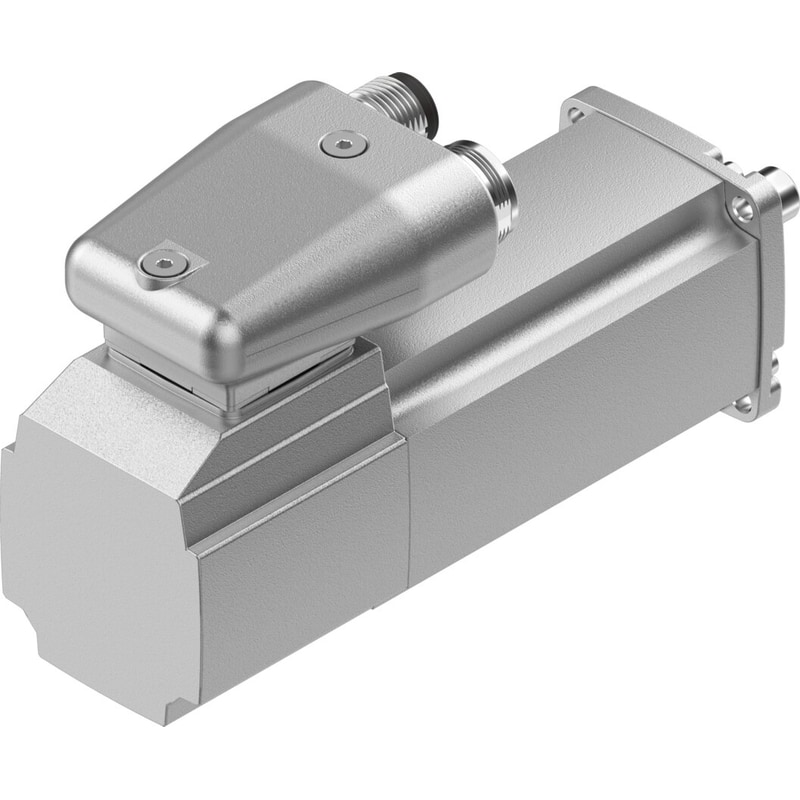

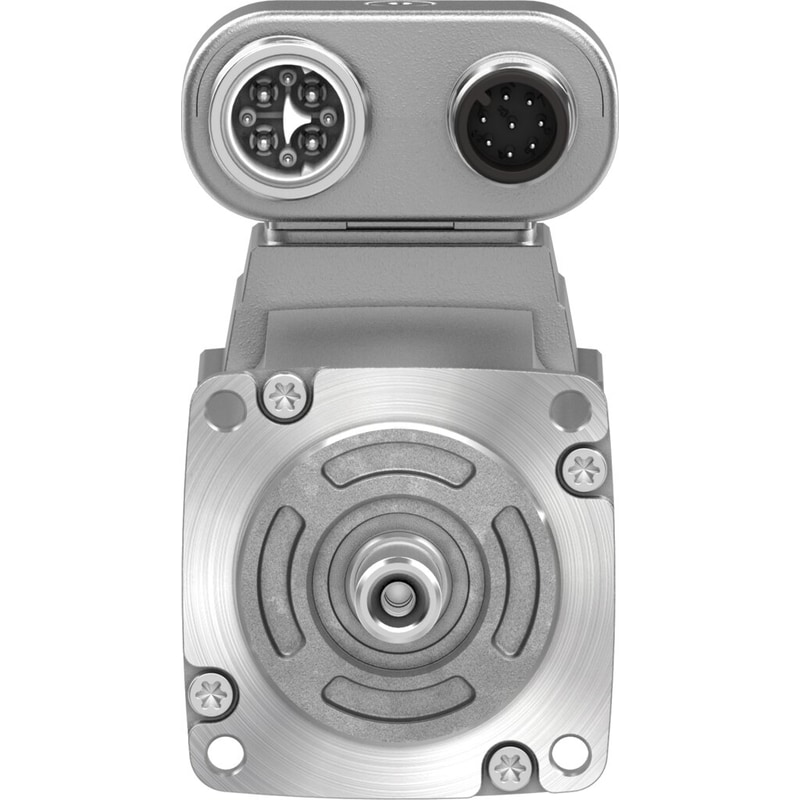

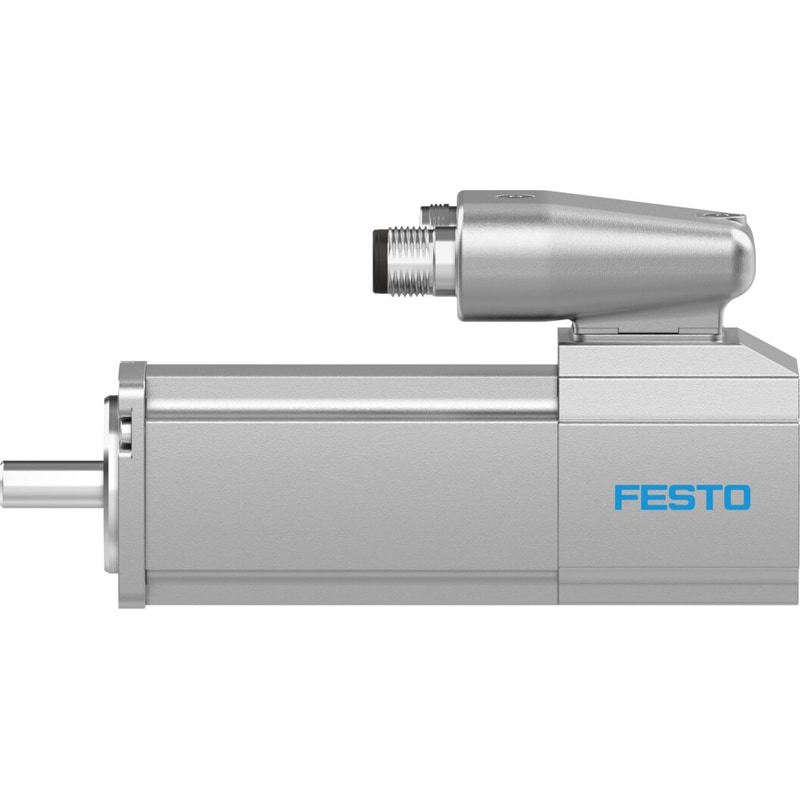

EMME-AS-40-M-LV-AS
$1,150.02
Reliable and powerful AC synchronous servo motor with optimized connection technology for dynamic applications.
| Weight | 2.20815 lbs |
|---|---|
| Dimensions | 9.84252 × 6.692913 × 4.330709 in |
| Total mass moment of inertia of output | 0.054 kgcm? |
| Nominal torque | 0.21 Nm |
| Nominal rotary speed | 9000 1/min |
