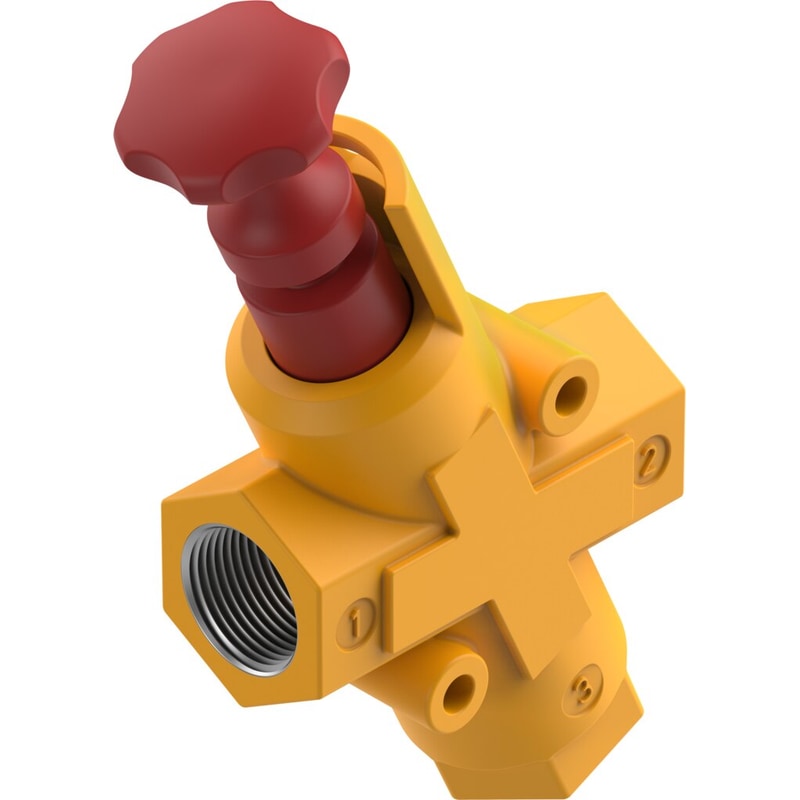

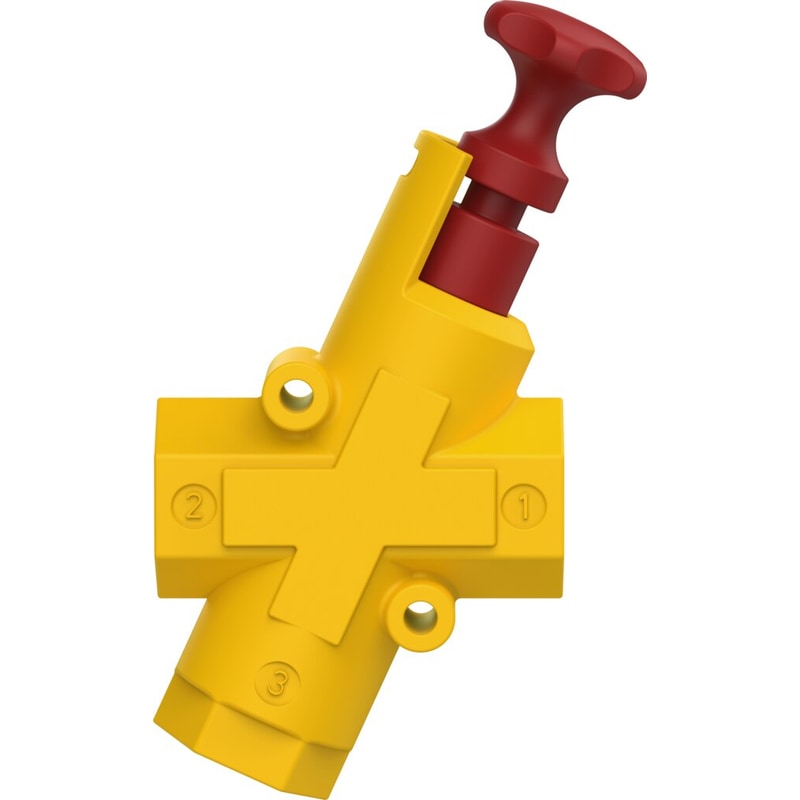

shut-off valve HE-G1-LO Design structure=Piston slide, Type of actuation=manual, Sealing principle=soft, Exhaust-air function=not throttleable, Manual override=None
| Design structure | Piston slide |
|---|---|
| Type of actuation | manual |
| Sealing principle | soft |
| Exhaust-air function | not throttleable |
| Manual override | None |
| Valve function | 3/2 bistable |
| Operating pressure | 1 … 10 bar |
| C value | 38.47 l/sbar |
| b value | 0.47 |
| Standard nominal flow rate | 10,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Corrosion resistance classification CRC | 3 – High corrosion stress |
| Medium temperature | ‘-10 … 60 °C |
