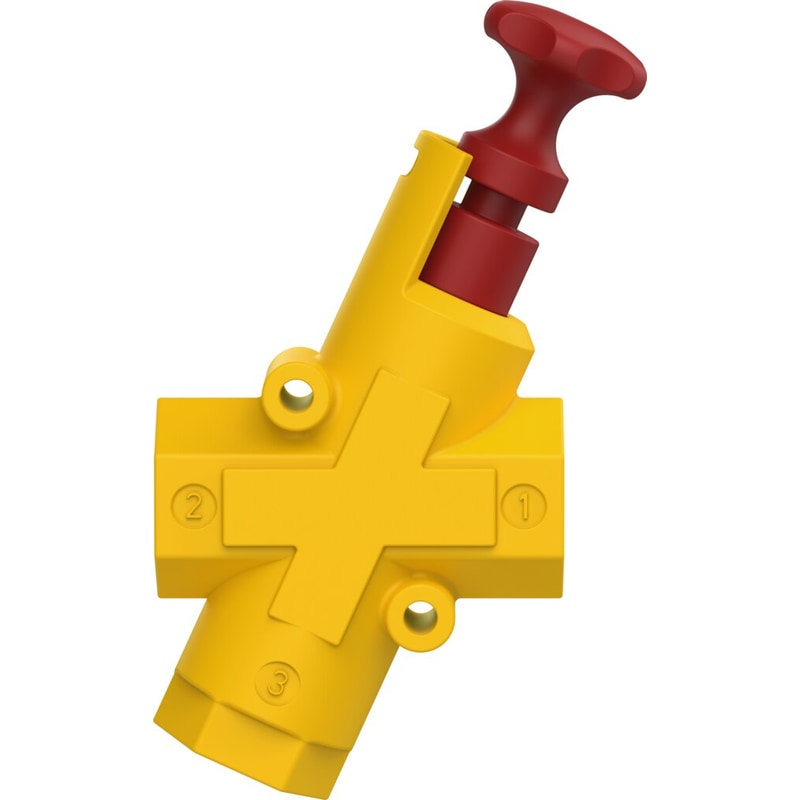

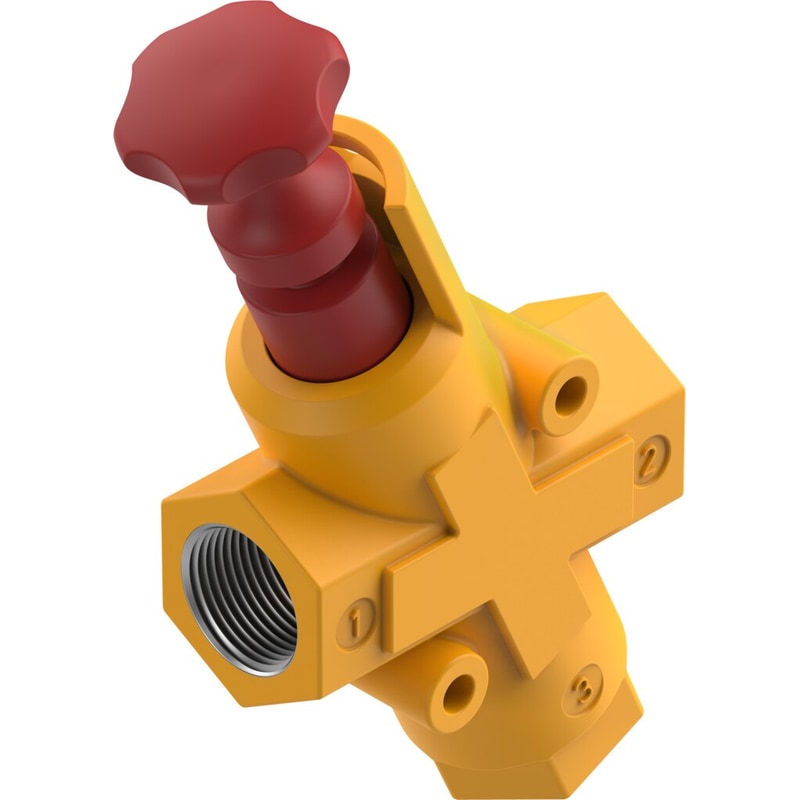

Name: Shut-off valve HE-N1-LO
Brand: Festo
SKU: 197132
Availability: InStock

shut-off valve HE-N1-LO Sealing principle=soft, Exhaust-air function=not throttleable, Type of piloting=direct, Operating pressure=1 – 10 bar, C value=38,47 l/sbar

Sealing principle	soft
Exhaust-air function	not throttleable
Type of piloting	direct
Operating pressure	1 … 10 bar
C value	38.47 l/sbar
b value	0.47
Standard nominal flow rate	10,000 l/min
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Corrosion resistance classification CRC	3 – High corrosion stress
Medium temperature	‘-10 … 60 °C
Ambient temperature	‘-10 … 60 °C
Mounting type	Threaded
Assembly position	Any

Weight	3.509076 lbs
Dimensions	9.84252 × 1.968504 × 3.937008 in
Sealing principle	Soft
Exhaust air function	Without flow control option
Type of control	Direct
Symbol	00991672
Operating pressure	1 bar … 10 bar
C value	38.47 l/sbar
b-value	0.47
Normal nominal flow rate (normalized to DIN 1343)	10000 l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)	3 – High corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Temperature of medium	-10 °C … 60 °C
Ambient temperature	-10 °C … 60 °C
Type of mounting	Screw-in
Mounting position	Any
Flow direction	Non-reversible
Product weight	1000 g
Pneumatic connection 1	1 NPT
Pneumatic connection 2	1 NPT
Pneumatic connection 3	1 NPT
Seals material	NBR \| TPE-U(PU)
Housing material	Die-cast aluminum
