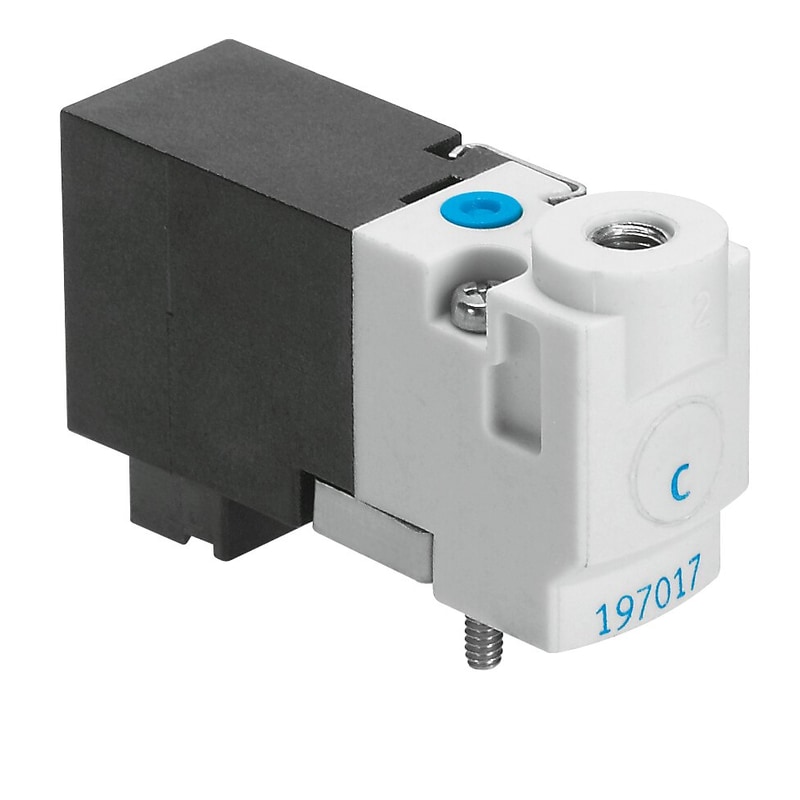

solenoid valve MHP1-M1H-3/2O-M3-PI Semi in-line valve for individual and manifold mounting, very compact, with plug connector on bottom (plug-in) Valve function=3/2 open, monostable, Type of actuation=electrical, Width=10 mm, Standard nominal flow rate=10 l/min, Operating pressure=0 – 6 bar
| Valve function | 3/2 open, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 10 mm |
| Standard nominal flow rate | 10 l/min |
| Operating pressure | 0 … 6 bar |
| Design structure | Poppet valve with spring return |
| Type of reset | mechanical spring |
| Protection class | IP40 |
| Authorisation | c CSA us – Recognized (OL)c UL us – Recognized (OL) |
| Nominal size | 0.7 mm |
| Grid dimension | 10 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
