VN-07-M-I3-PQ2-VQ2

Name: VN-07-M-I3-PQ2-VQ2
Brand: Festo
SKU: 193553
Availability: InStock

$54.65

SKU: 193553 Category: VN Tag: 2021u

Brand: Festo

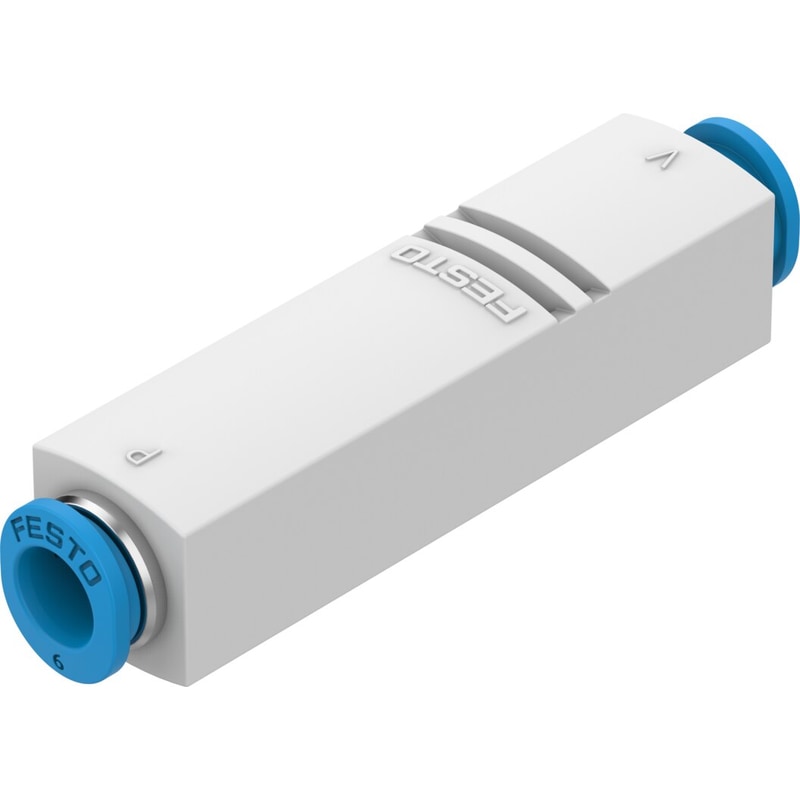

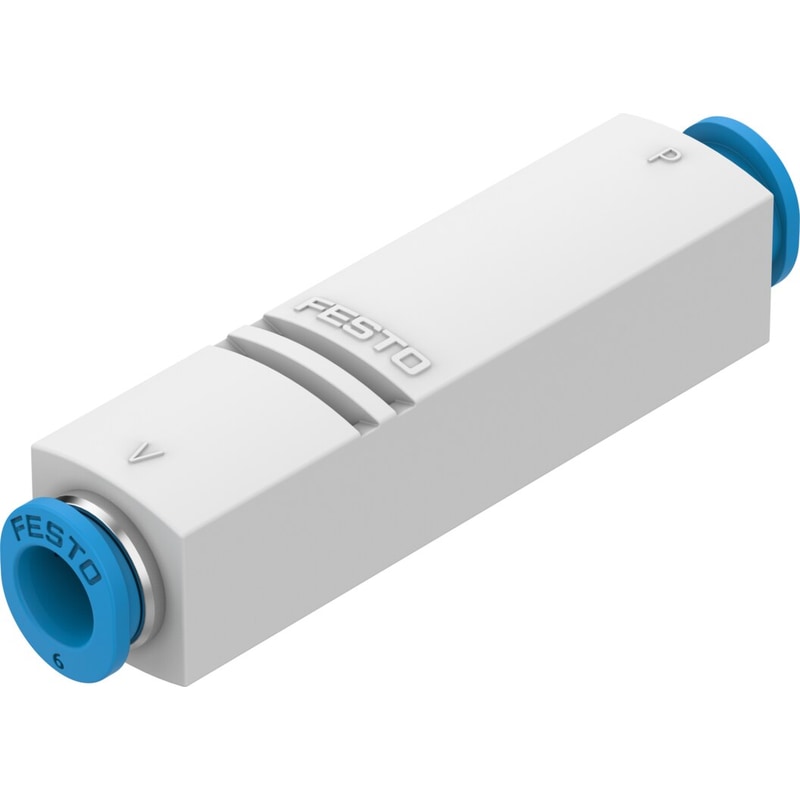

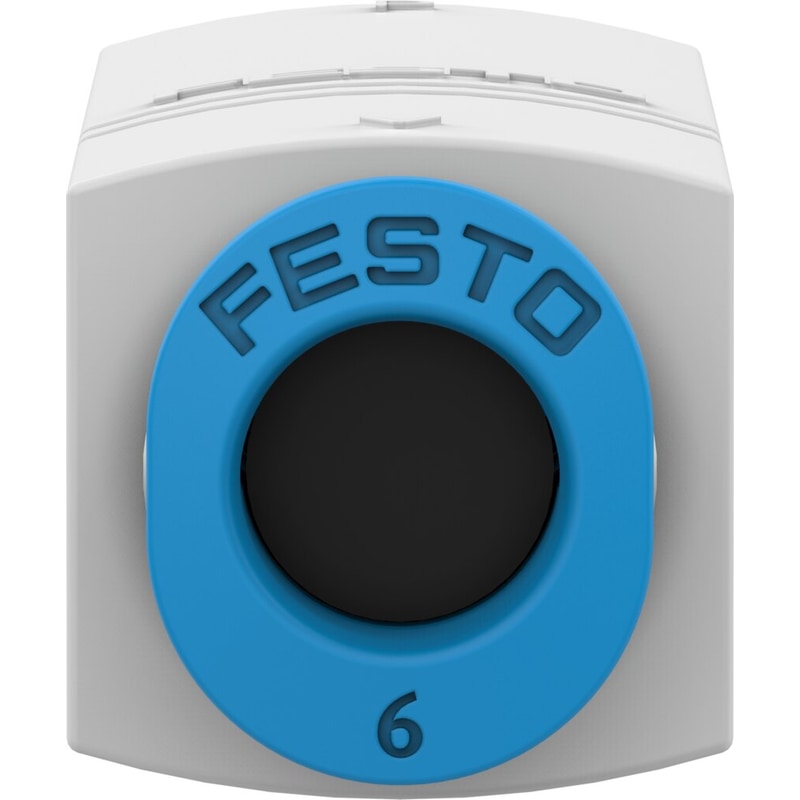

vacuum generator
VN-07-M-I3-PQ2-VQ2
Part number: 193553

☆ Core product range

In-line, high vacuum, width 10 mm, with plug connector.

Nominal size, Laval nozzle	0.7 mm
Grid dimension	13 mm
Assembly position	Any
Ejector characteristic	High vacuumInline
Design structure	Straight design
Operating pressure for max. suction rate	7 bar
Operating pressure	1 … 8 bar
Operating pressure for max. vacuum	5.8 bar
Max. vacuum	0.86
Nominal operating pressure	6 bar
Max. suction rate with respect to atmosphere	13.5 l/min
Air supply time at nominal operating pressure	2 s
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Nominal size, Laval nozzle	0.7 mm
Max. vacuum	0.86
Max. suction flow rate against atmosphere	13.5 l/min
