VN-05-H-T3-PQ2-VA4-RO1

Name: VN-05-H-T3-PQ2-VA4-RO1
Brand: Festo
SKU: 193526
Availability: InStock

$74.02

SKU: 193526 Category: VN Tag: 2021u

Brand: Festo

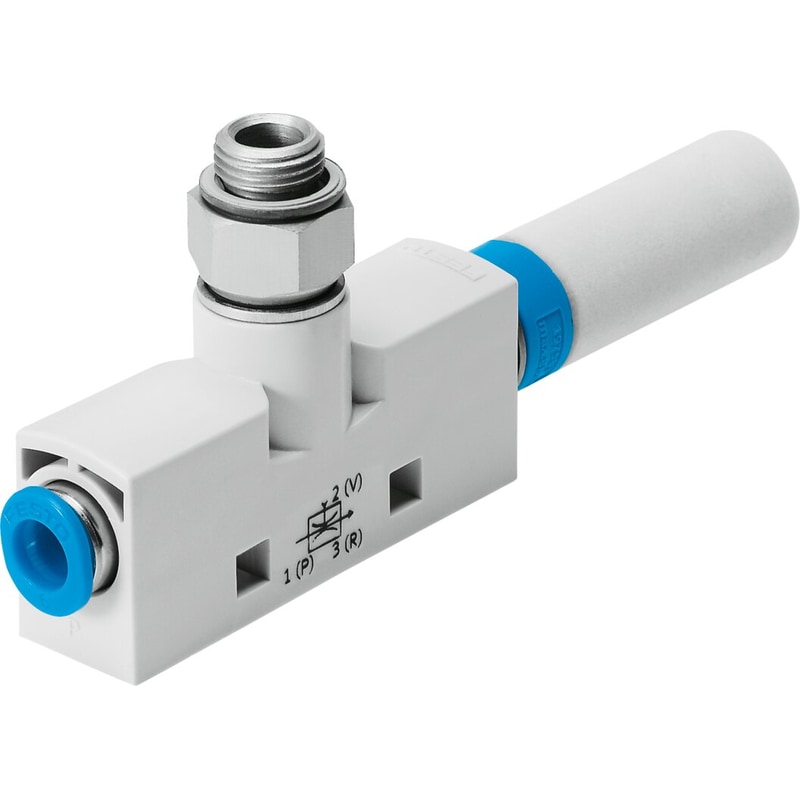

vacuum generator
VN-05-H-T3-PQ2-VA4-RO1
Part number: 193526

Standard, high vacuum, width 14 mm, T shape with plug connector and open silencer. Vacuum connection with male thread.

Nominal size, Laval nozzle	0.45 mm
Grid dimension	14 mm
Design, silencer	open
Assembly position	Any
Ejector characteristic	High vacuumStandard
Integrated function	Open silencer
Design structure	T-shaped
Operating pressure for max. suction rate	2.1 bar
Operating pressure	1 … 8 bar
Operating pressure for max. vacuum	4.5 bar
Max. vacuum	0.88
Nominal operating pressure	6 bar
Max. suction rate with respect to atmosphere	6.2 l/min

Weight	0.058599 lbs
Dimensions	3.346457 × 1.692913 × 0.551181 in
Nominal size, Laval nozzle	0.45 mm
Max. vacuum	0.88
Max. suction flow rate against atmosphere	6.2 l/min
