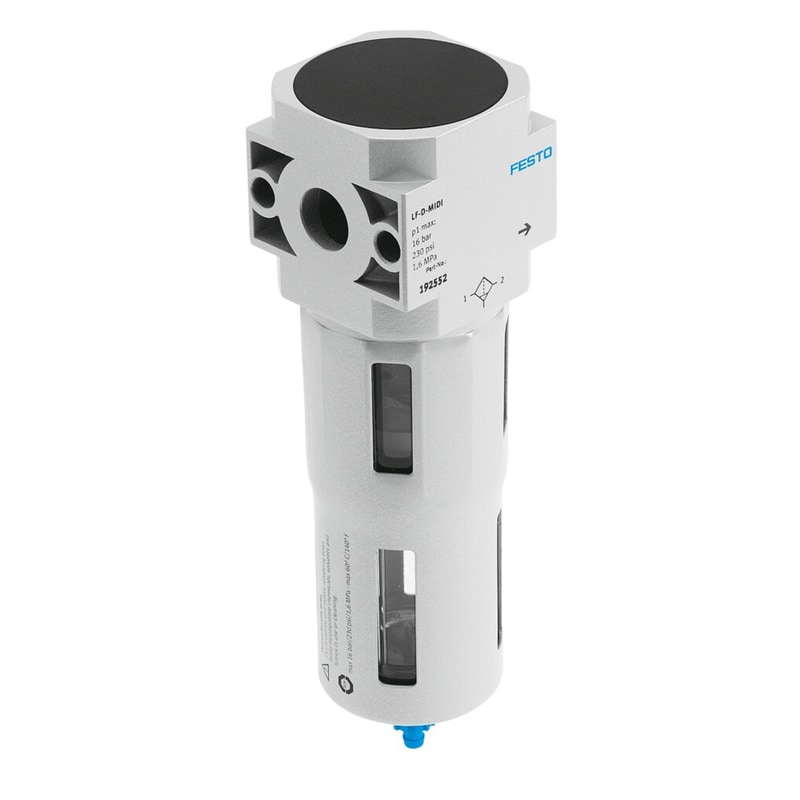

Name: LF-D-MIDI
Brand: Festo
SKU: 192552
Availability: InStock

filter
LF-D-MIDI
Part number: 192552

Classic

Without threaded connection plates with FRB threaded pin. Degree of filtration: 40 µm, with bowl guard and manual condensate drain.

Modern alternatives can be found by entering the first four characters of the type code in the search field.

Size	Midi
Series	D
Assembly position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	manual rotary
Design structure	Sintered filter with centrifugal separator
Max. condensate volume	43 cm3
Bowl guard	Metal bowl guard
Operating pressure	0 … 16 bar
Operating medium	Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases
Corrosion resistance classification CRC	2 – Moderate corrosion stress
Storage temperature	‘-10 … 60 °C
Air purity class at output	Compressed air in accordance with ISO8573-1:2010 [7:8:4]Inert gases

Weight	1.390455 lbs
Dimensions	8.267717 × 2.165354 × 3.543307 in
Size	Midi
Series	D
Mounting position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	Manually rotating
Structural design	Sinter filter with centrifugal separator
Bowl guard	Metal bowl guard
Symbol	00991519
Operating pressure	0 bar … 16 bar
Operating medium	Inert gas
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-10 °C … 60 °C
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [7:8:4], Inert gas
Temperature of medium	-10 °C … 60 °C
Ambient temperature	-10 °C … 60 °C
Product weight	700 g
Type of mounting	With accessories
Pneumatic connection 1	Sub-base
Pneumatic connection 2	Sub-base
Note on materials	RoHS-compliant
Compressed air filter material	PE
Housing material	Die-cast zinc
Material of bowl	PC
