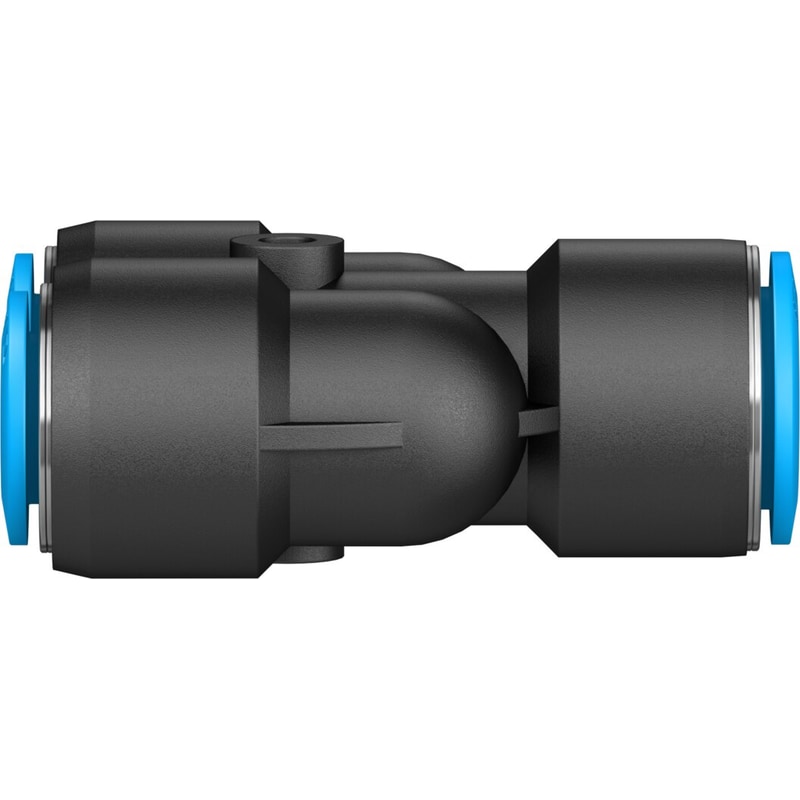

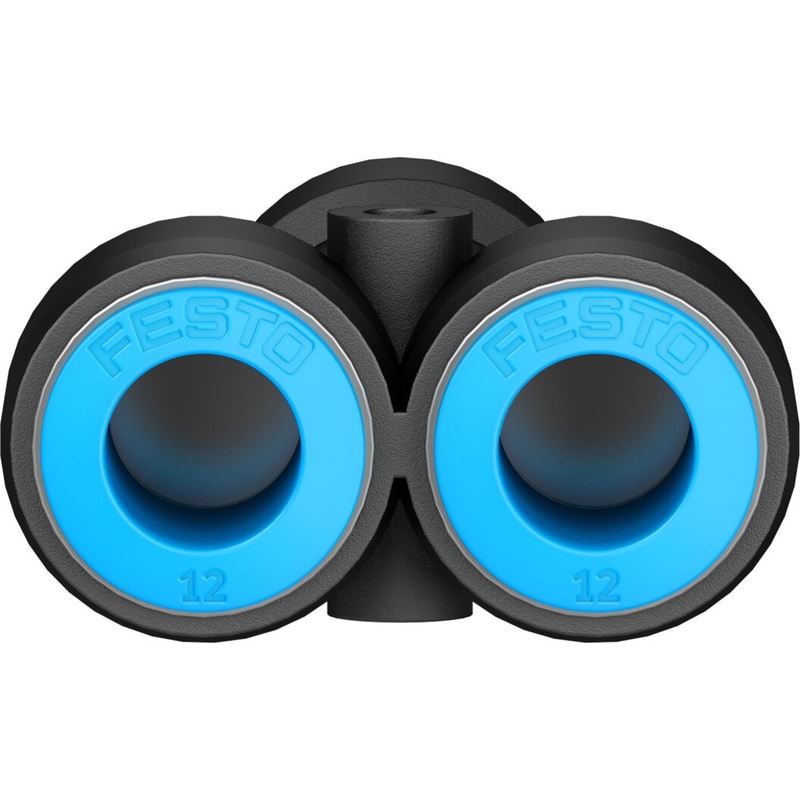

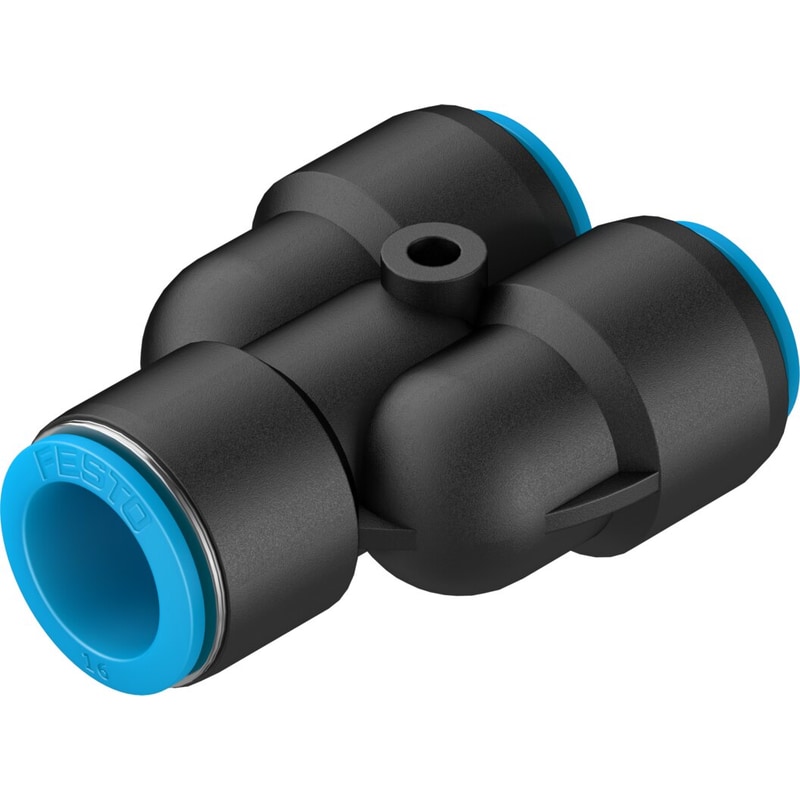

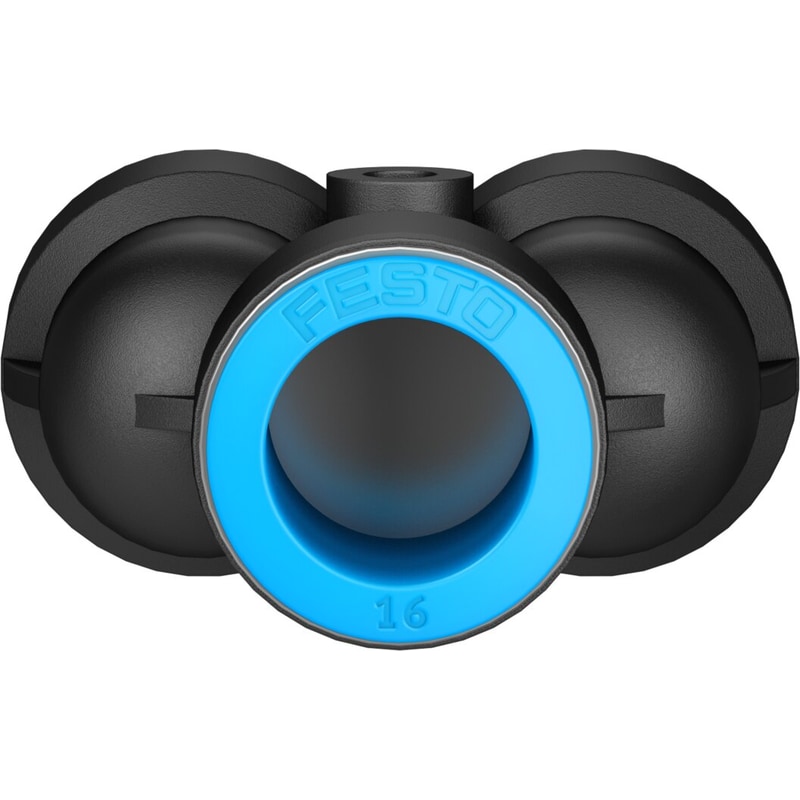

push-in Y-connector
QSY-16-12
Part number:Â 190708
★ Core product rangeÂ
reducing.
| Fitting Type | Union Y Reducer |
|---|---|
| Size | Standard |
| Nominal size | 7 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-0.95 … 6 bar |
| Temperature dependent operating pressure | ‘-0.95 … 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-10 … 80 °C |
| Maritime classification | see certificate |
| Product weight | 48 g |
| Number of outputs | 2 |
| Number of supply lines | 1 |
| connection 1Â | 16mm outside diameter, for tubing |
| connection 2Â | 12mm outside diameter, for tubing |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
