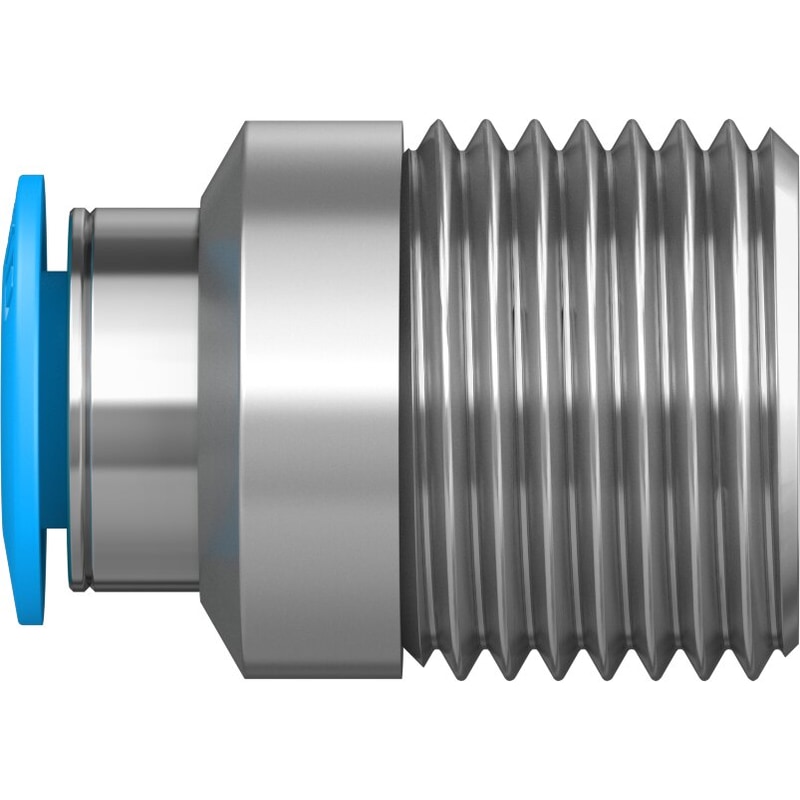

push-in fitting
QS-1/2-10-I
Part number: 190648
★ Core product range

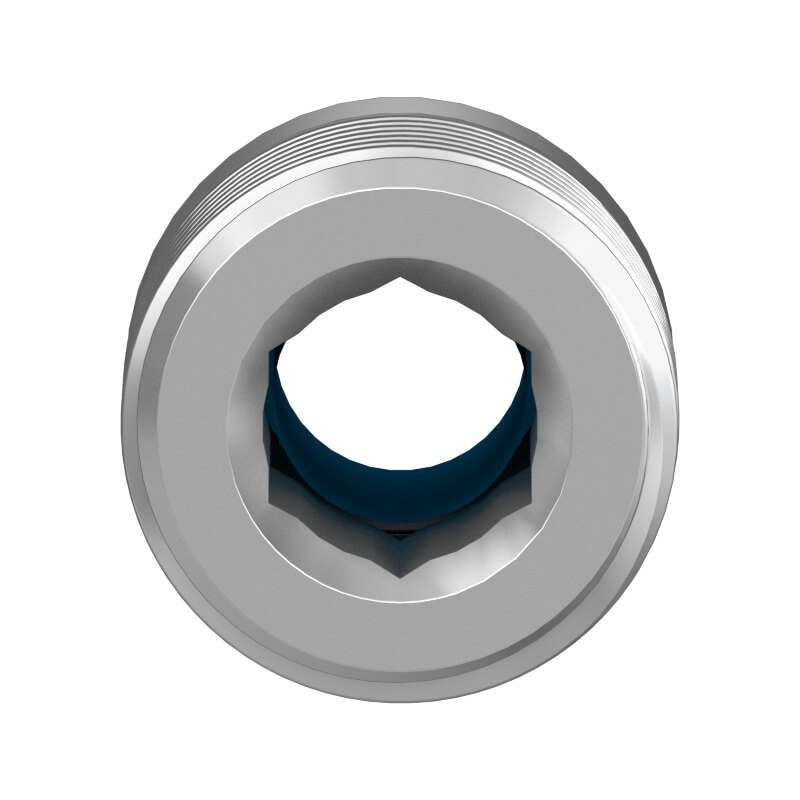

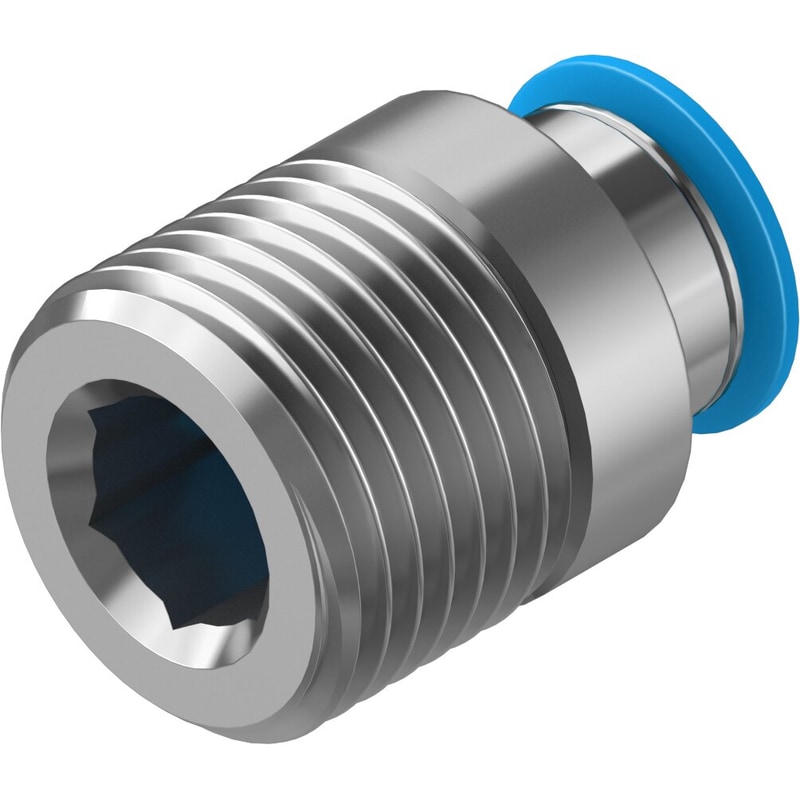

male thread with internal hexagon socket.
| Fitting Type | Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 6.3 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-0.95 … 6 bar |
| Temperature dependent operating pressure | ‘-0.95 … 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 – Low corrosion stress |
| Ambient temperature | ‘-10 … 80 °C |
| Maritime classification | see certificate |
| Product weight | 45 g |
| connection 1 | Male thread R1/2 |
| connection 2 | For tubing outside diameter 10 mm |

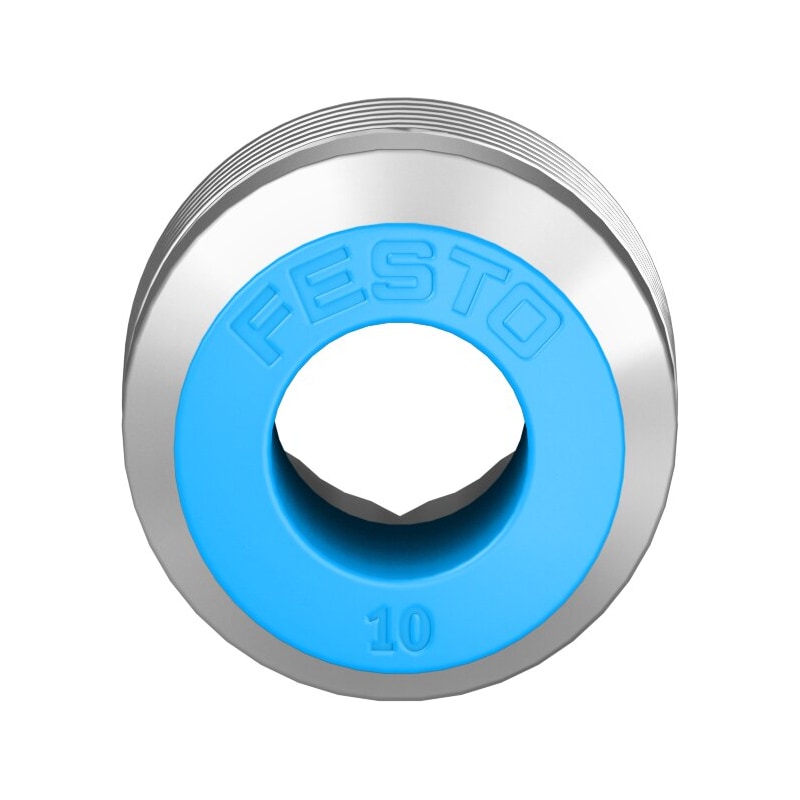

| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
| Material housing | BrassNickel plated |
