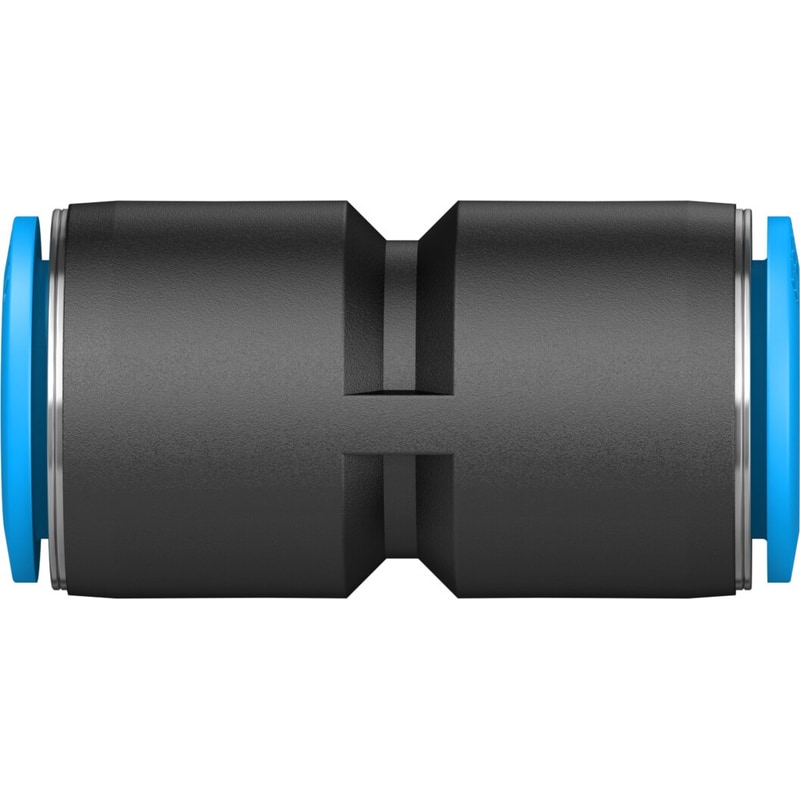

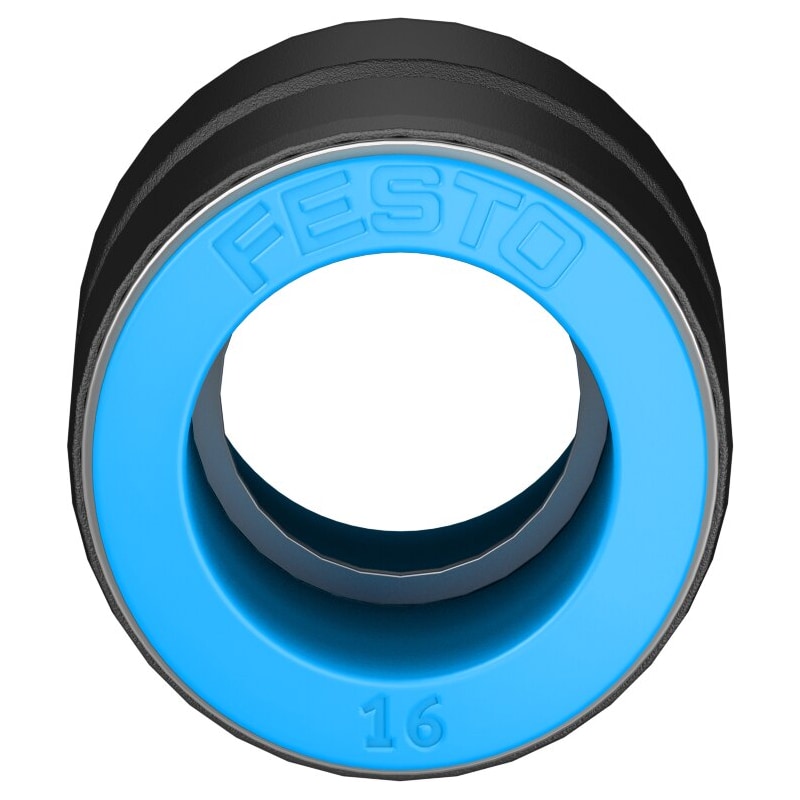

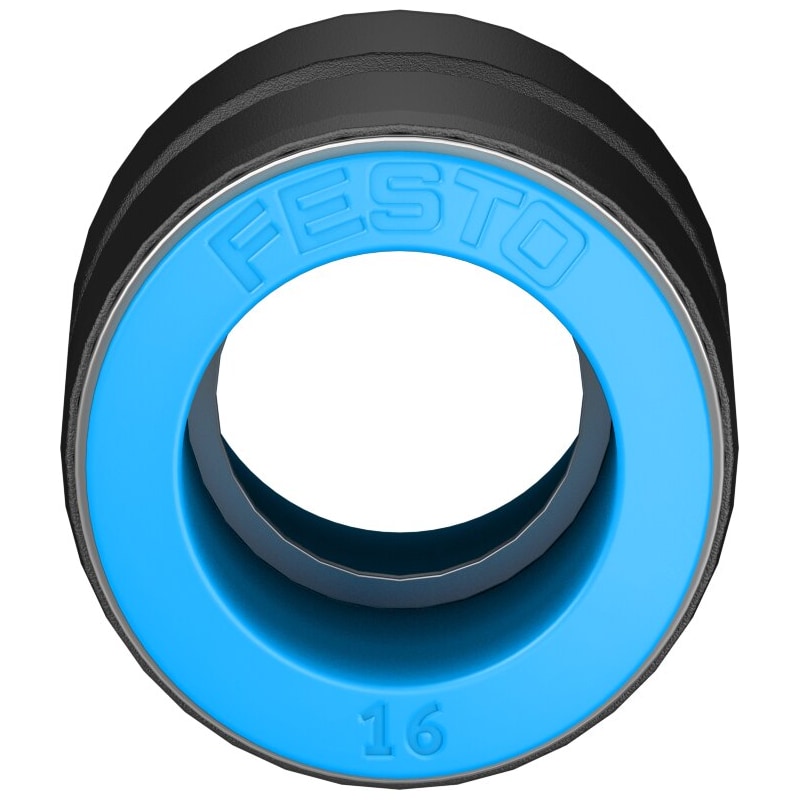

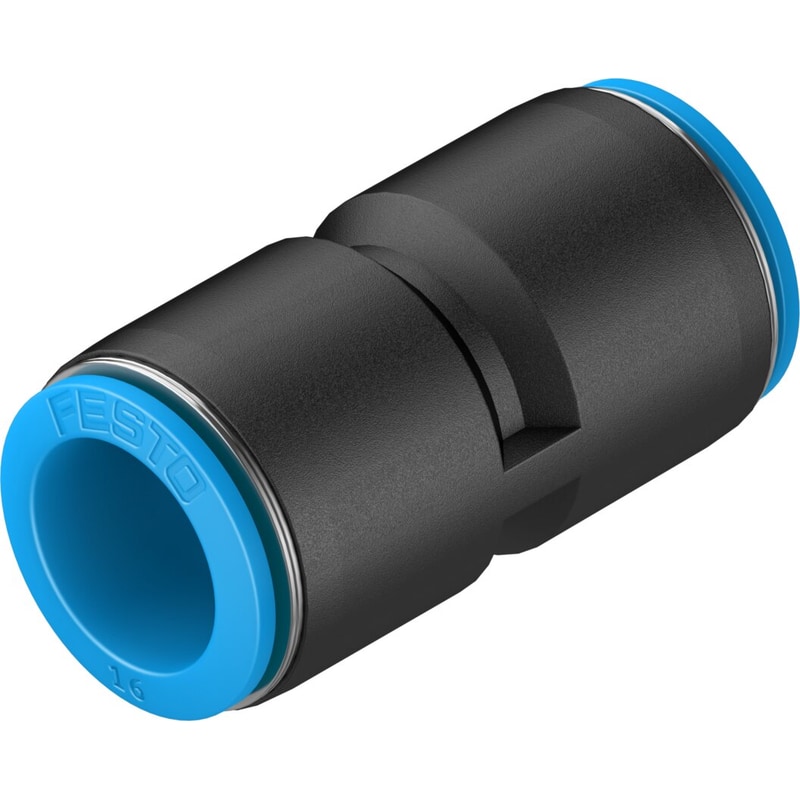

push-in connector
QS-5/8T-U
Part number: 190589
| Fitting Type | Union Straight |
|---|---|
| Size | Standard |
| Nominal size | 13.7 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-0.95 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 – Low corrosion stress |
| Ambient temperature | ‘-10 … 60 °C |
| Maritime classification | see certificate |
| Product weight | 25 g |
| connection 1 | For hose external diameter 5/8” |
| connection 2 | For hose external diameter 5/8” |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material release ring | POM |
| Material of tubing seal | NBR |
