Name: DFC-10-15-P-A-GF
Brand: Festo
SKU: 189469
Availability: InStock

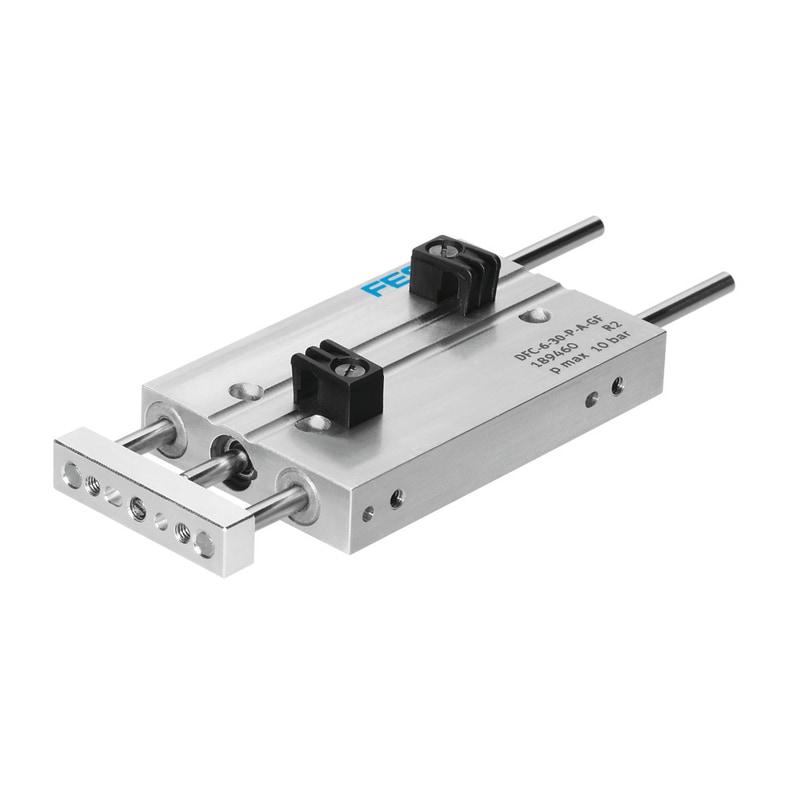

mini guided drive
DFC-10-15-P-A-GF
Part number: 189469

For position sensing with plain-bearing guide.

Sensor bracket is included in scope of delivery

Centre of gravity distance from working load to yoke plate	15 mm
Stroke	15 mm
Piston diameter	10 mm
Operating mode of drive unit	Yoke
Cushioning	P: Flexible cushioning rings/plates at both ends
Assembly position	Any
Guide	Plain-bearing guide
Design structure	Guide
Position detection	For proximity sensor
Operating pressure	1 … 10 bar
Max. speed	1 m/s
Mode of operation	double-acting
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Weight	0.305164 lbs
Dimensions	4.330709 × 1.771654 × 2.165354 in
Piston diameter	10 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	47 N
Stroke	15 mm
Cushioning	Elastic cushioning rings/plates at both ends
Position detection	Via proximity switch
