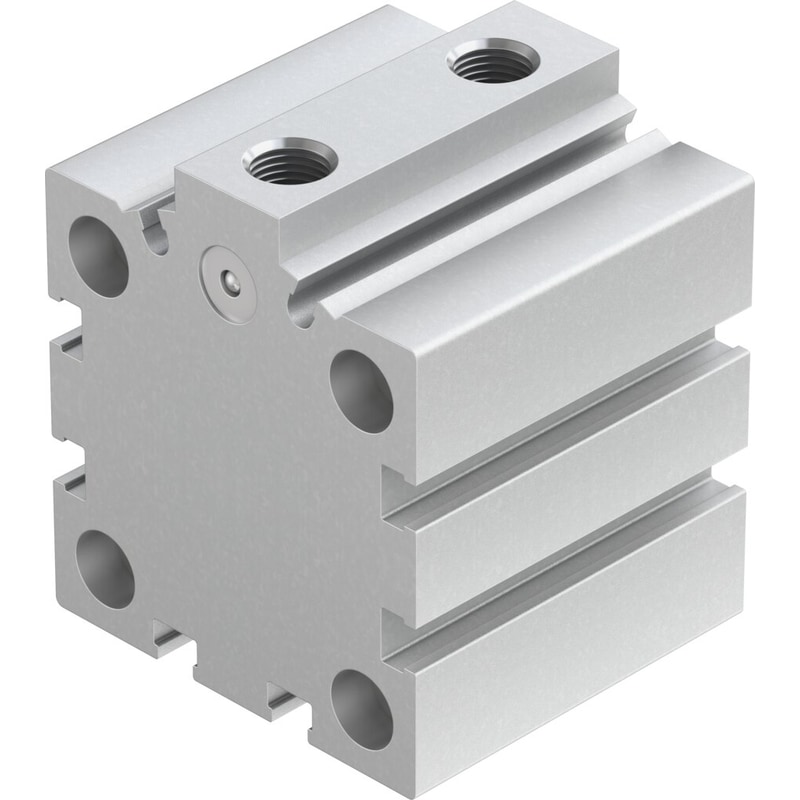

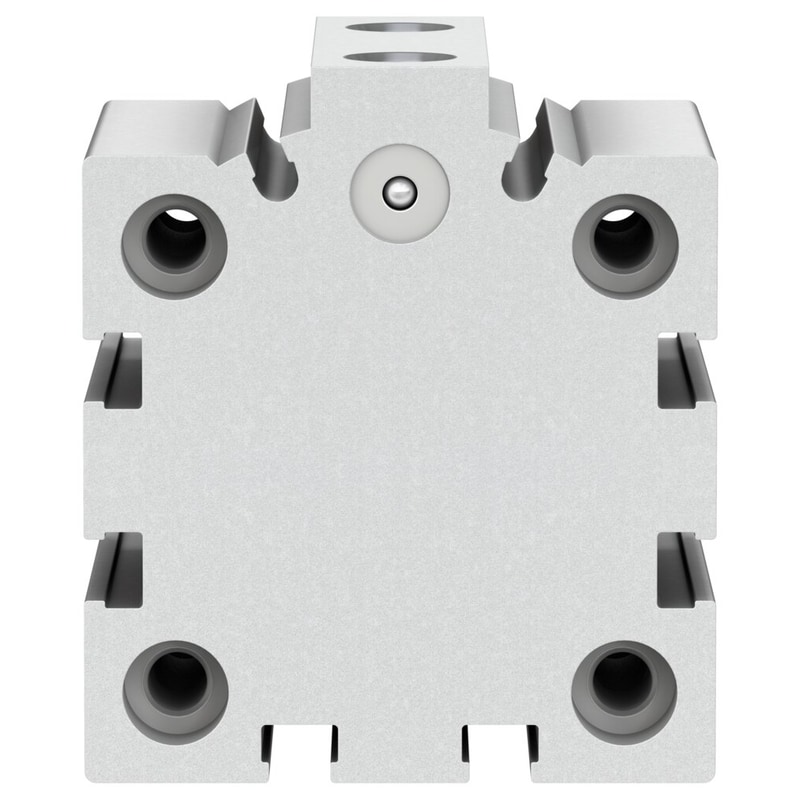

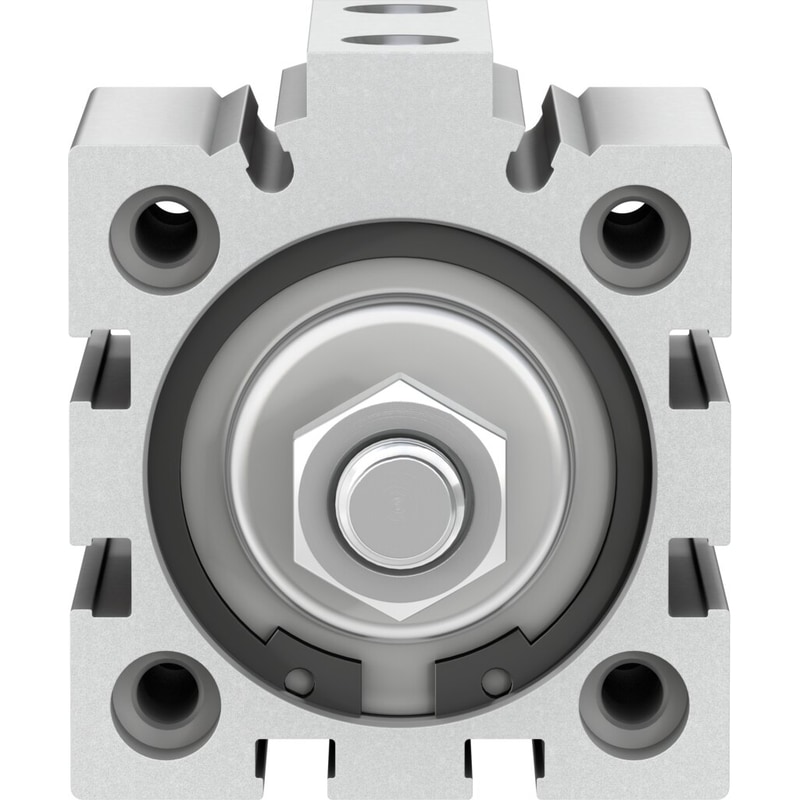

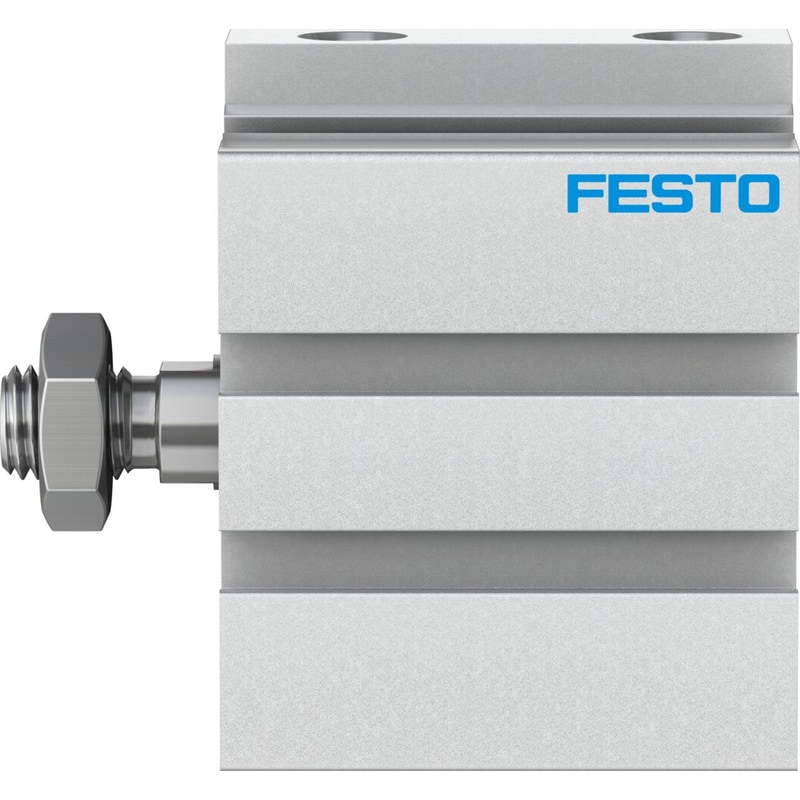

short-stroke cylinder ADVC-40-20-A-P No facility for sensing, piston-rod end with male thread. Stroke=20 mm, Piston diameter=40 mm, Based on the standard=(* ISO 6431, * Hole pattern, * VDMA 24562), Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
Stroke | 20 mm |
---|---|
Piston diameter | 40 mm |
Based on the standard | ISO 6431Hole patternVDMA 24562 |
Cushioning | P: Flexible cushioning rings/plates at both ends |
Assembly position | Any |
Mode of operation | double-acting |
Design structure | PistonPiston rod |
Position detection | No |
Operating pressure | 1 … 10 bar |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
Ambient temperature | ‘-20 … 80 °C |
