Name: AEVC-32-10-A-P-A
Brand: Festo
SKU: 188199
Availability: InStock

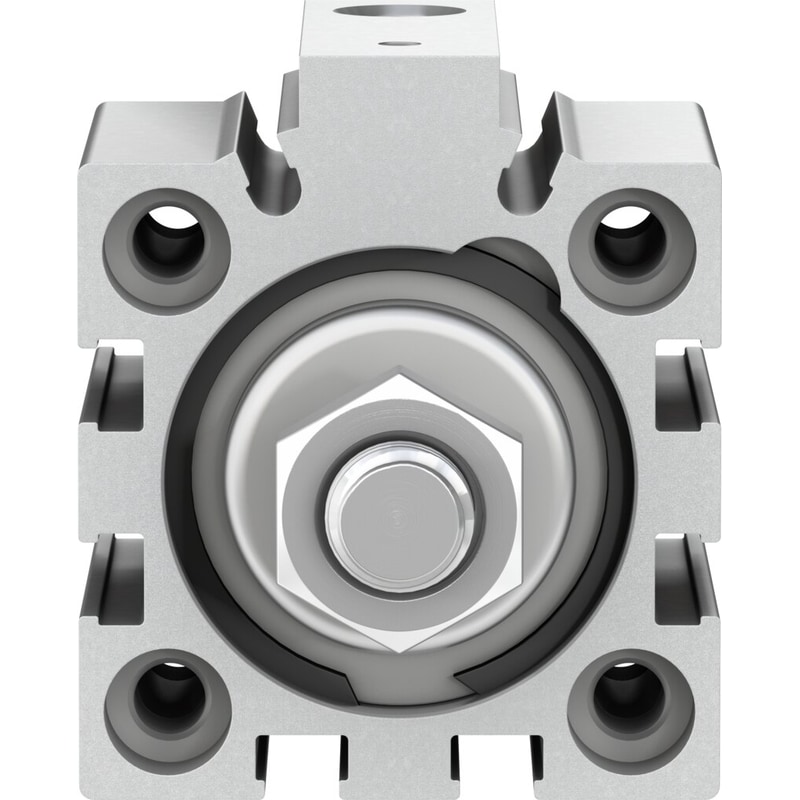

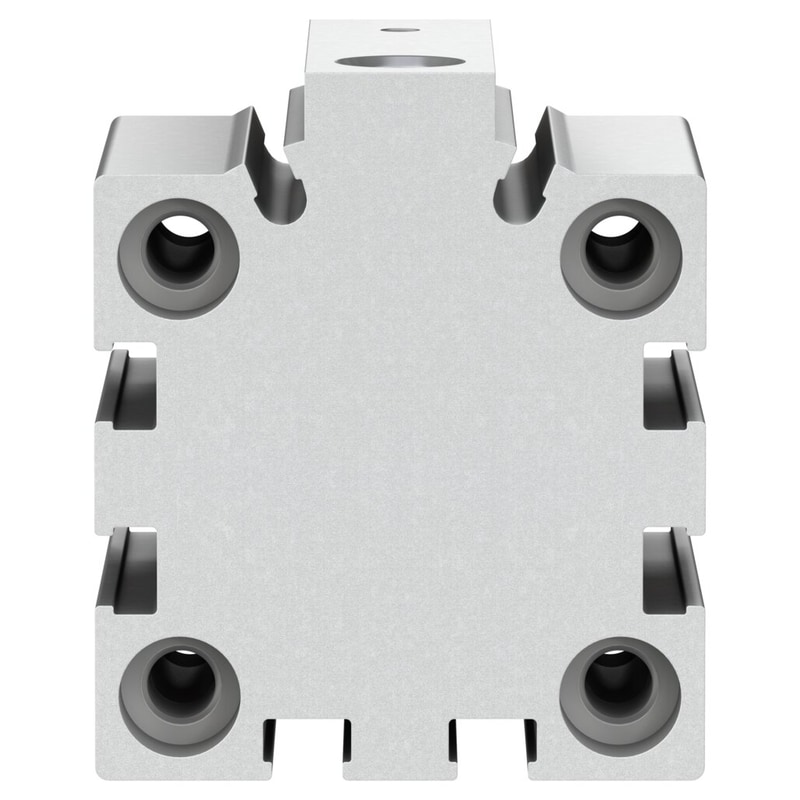

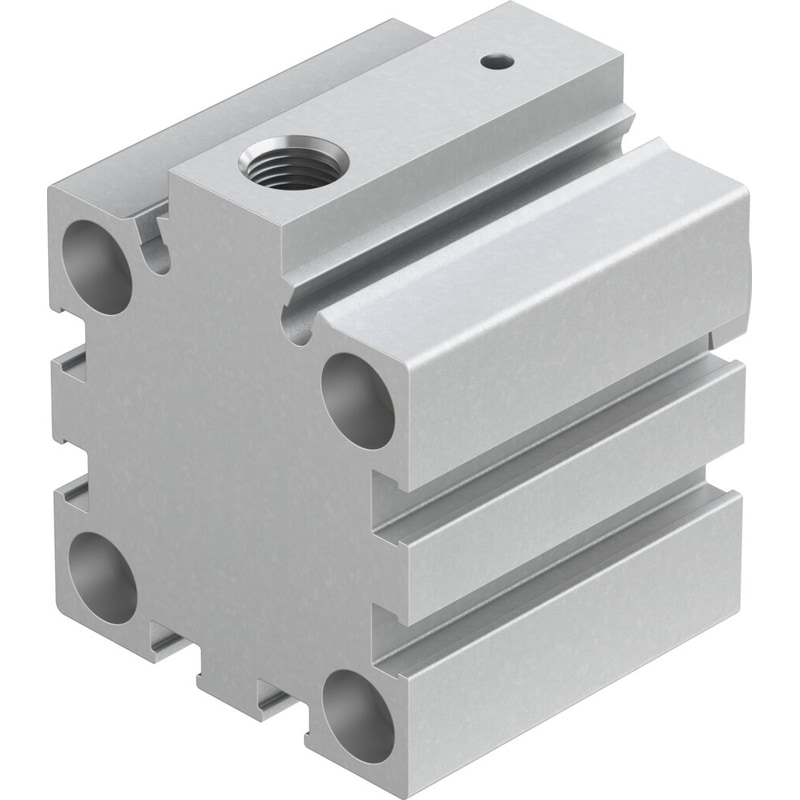

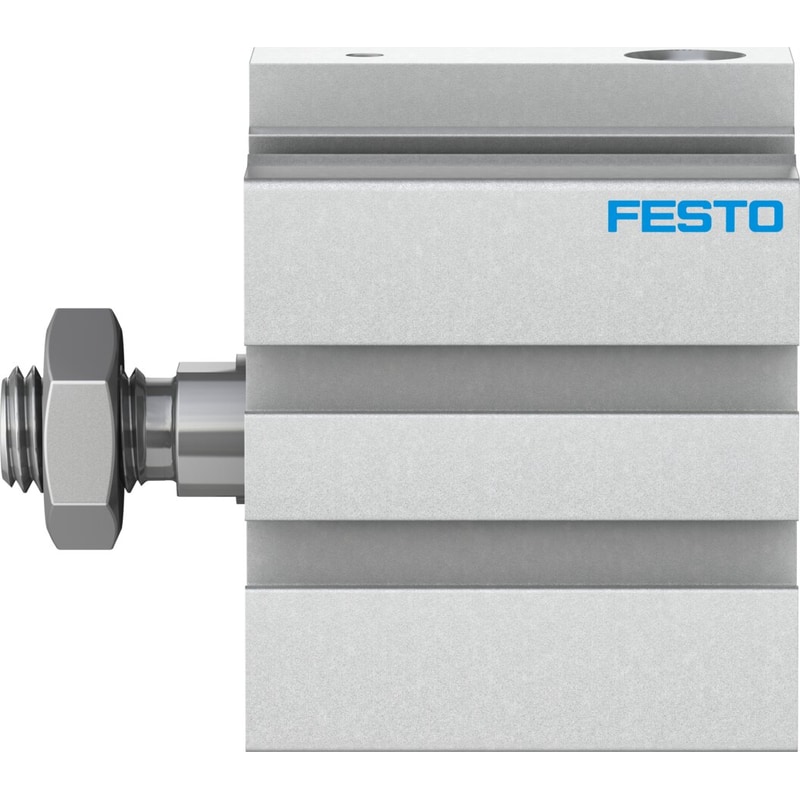

short-stroke cylinder
AEVC-32-10-A-P-A
Part number: 188199

For proximity sensing, piston-rod end with male thread.

Stroke	10 mm
Piston diameter	32 mm
Spring return force, retracted	22 N
Based on the standard	ISO 6431Hole patternVDMA 24562
Cushioning	P: Flexible cushioning rings/plates at both ends
Assembly position	Any
Mode of operation	single-actingpushing action
Design structure	PistonPiston rod
Position detection	For proximity sensor
Operating pressure	1 … 10 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	1 – Low corrosion stress

Weight	0.451551 lbs
Dimensions	2.559055 × 1.771654 × 2.165354 in
Mode of operation	Pushing – Single-acting
Piston diameter	32 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	450 N
Stroke	10 mm
Cushioning	Elastic cushioning rings/plates at both ends
