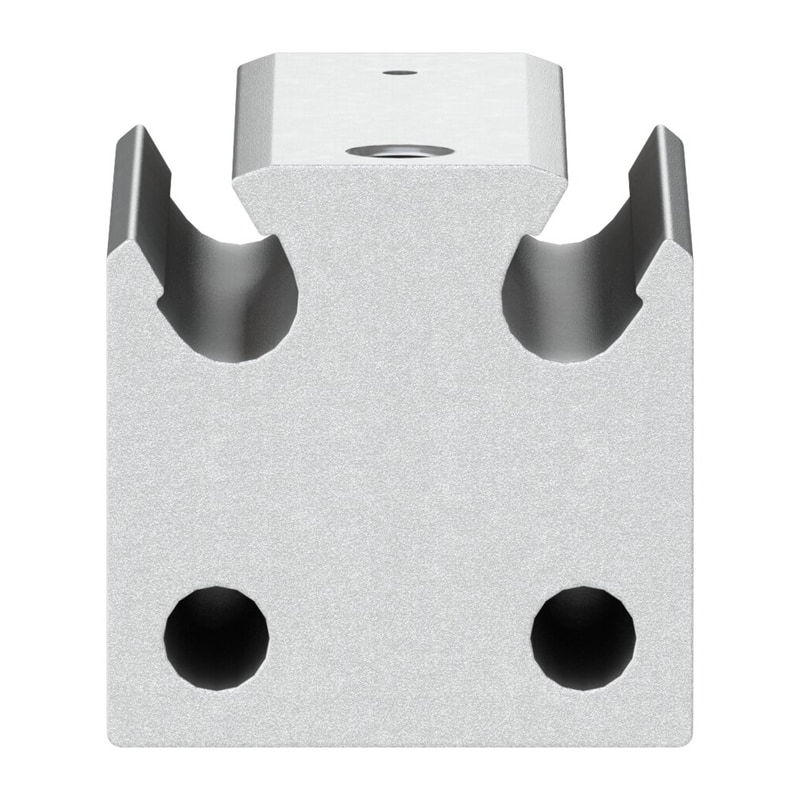

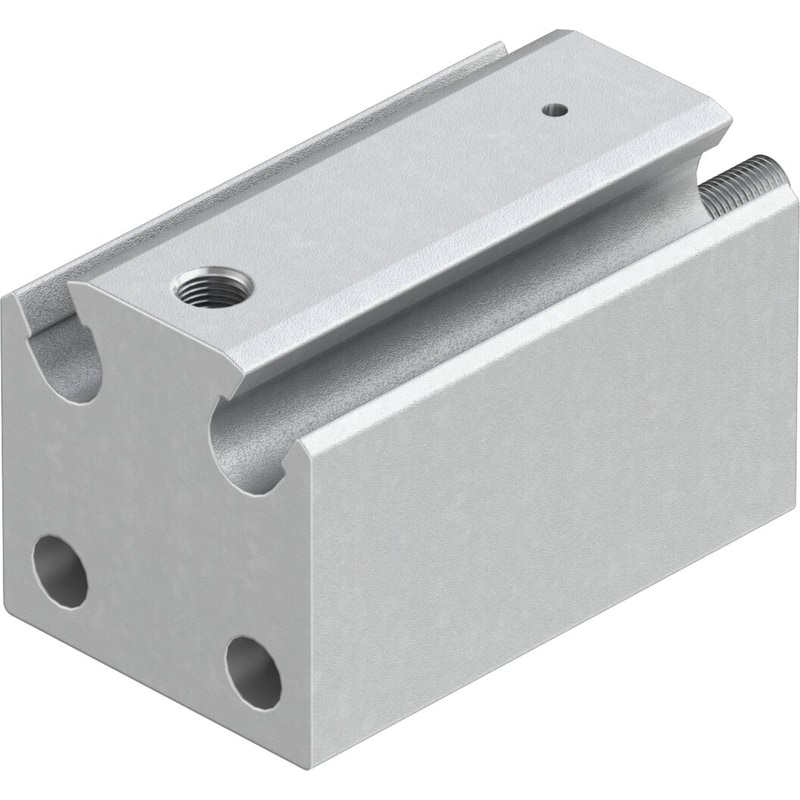

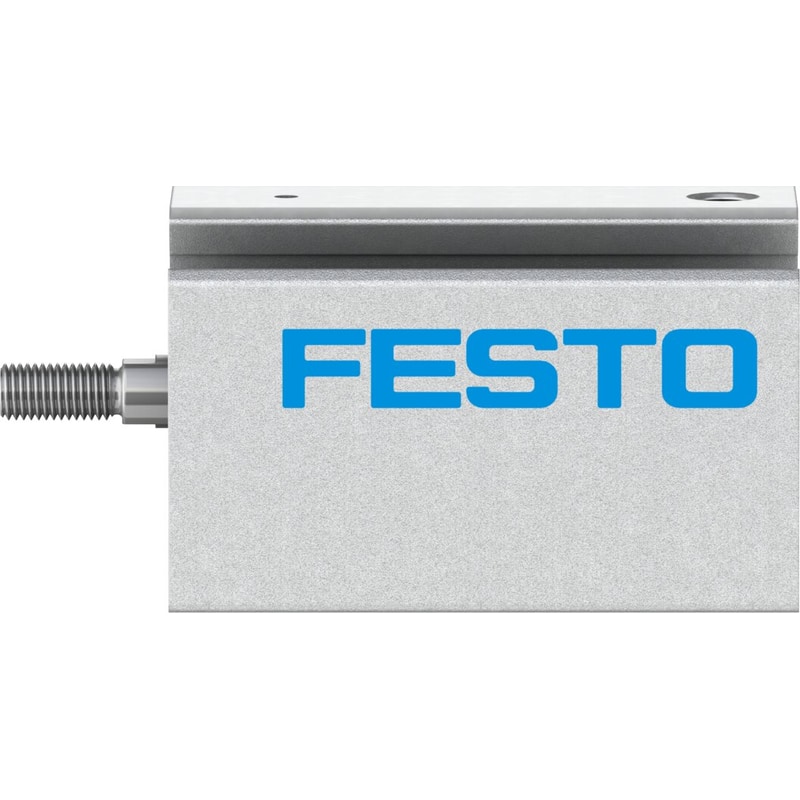

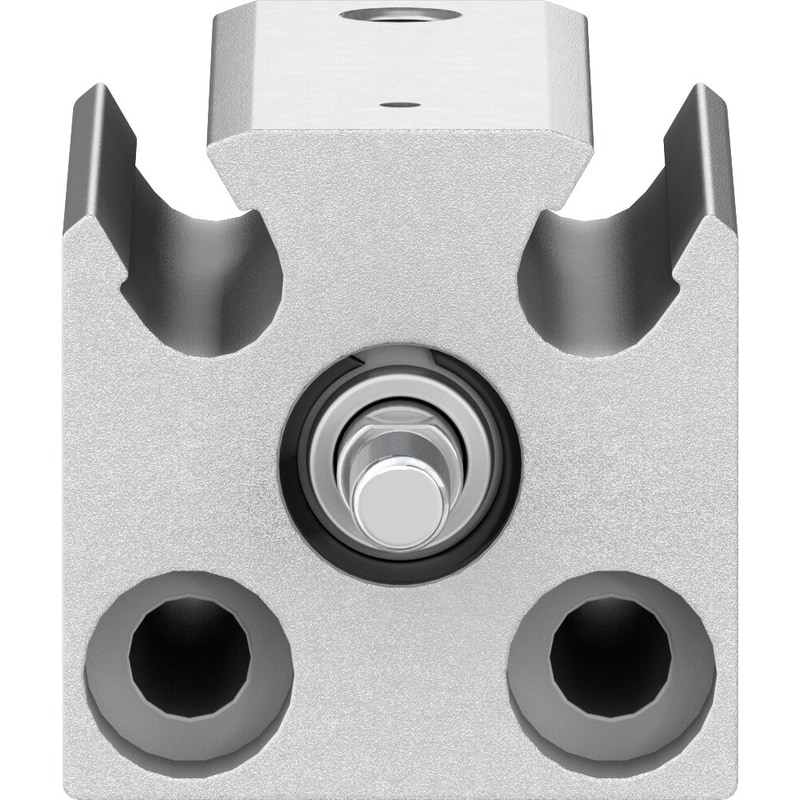

short-stroke cylinder AEVC-6-5-A-P-A For proximity sensing, piston-rod end with male thread. Stroke=5 mm, Piston diameter=6 mm, Spring return force, retracted=3 N, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 5 mm |
|---|---|
| Piston diameter | 6 mm |
| Spring return force, retracted | 3 N |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | single-actingpushing action |
| Design structure | PistonPiston rod |
| Position detection | For proximity sensor |
| Operating pressure | 2.5 … 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-20 … 80 °C |
