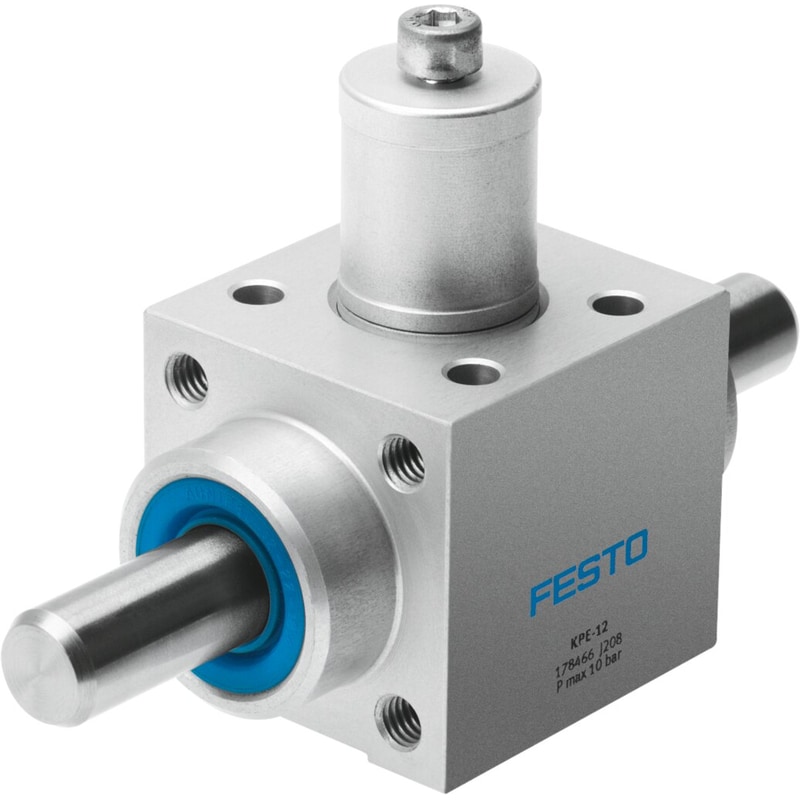

| Type code | KPE |
|---|---|
| Mounting position | Any |
| Clamping type with active direction | Both sidesClamped by spring, released by compressed air |
| Design | Hinge-down panes |
| Variants | Piston rod at one end |
| Operating pressure | ≤ 10 bar |
| Min. release pressure | 3 bar |
| Round material to be clamped | 20 mm |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -10 °C … 80 °C |
| Static holding force | 2000 N |
| Product weight | 930 g |
| Seals material | TPE-U(PU)NBR |
| Material of spring | Spring steel |
| Housing material | AluminumAnodized |
| Clamping jaws material | Brass |
| Material of piston | POM |
| Weight | 1.884952 lbs |
|---|---|
| Dimensions | 8.503937 × 4.251969 × 7.992126 in |
