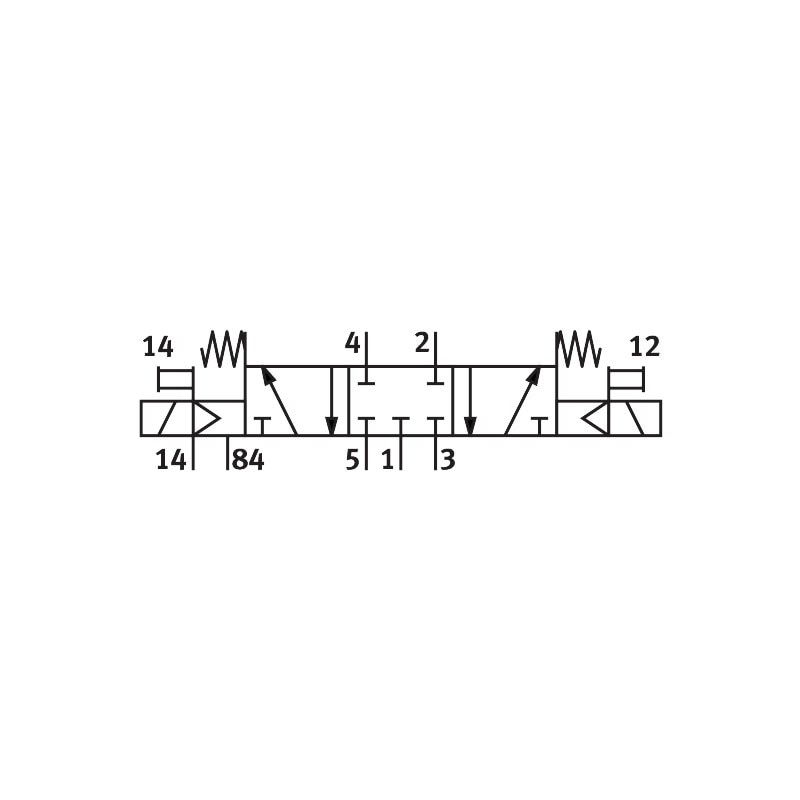

solenoid valve CPV18-M1H-5/3GS-1/4 For valve terminal CPV. The valve housing contains one 5/3-way valve, which is normally closed. Valve function=5/3 closed, Type of actuation=electrical, Valve size=18 mm, Standard nominal flow rate=1400 l/min, Operating pressure=-0,9 – 10 bar
| Valve function | 5/3 closed |
|---|---|
| Type of actuation | electrical |
| Valve size | 18 mm |
| Standard nominal flow rate | 1,400 l/min |
| Operating pressure | ‘-0.9 … 10 bar |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Authorisation | C-Tick |
| Nominal size | 8 mm |
| Exhaust-air function | not throttleable |
| Sealing principle | soft |
| Assembly position | Any |
