| Width dimension | 40 mm |
|---|---|

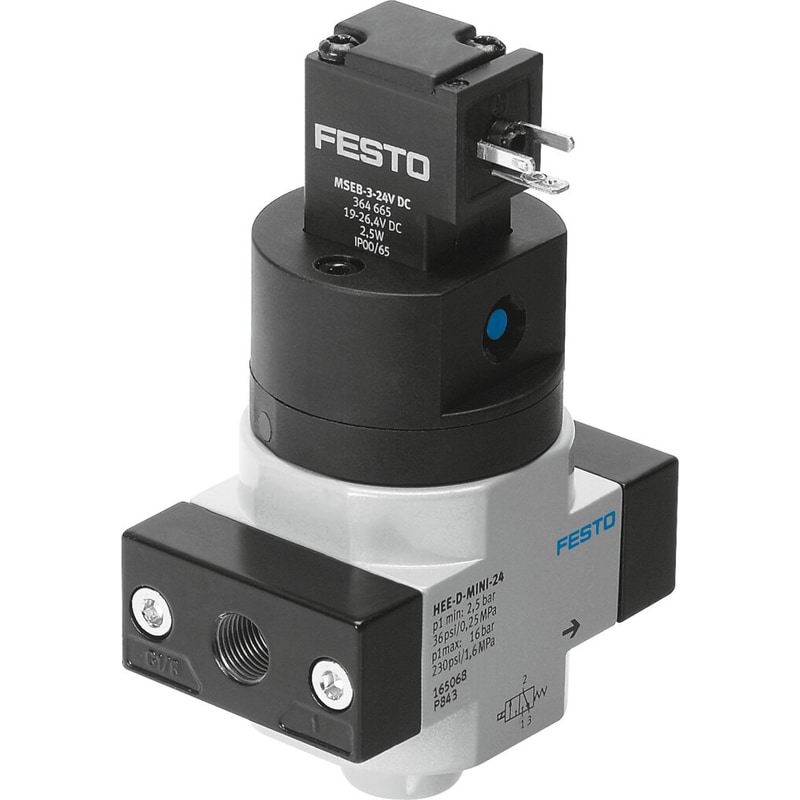

| Type code | HEE |
| Design | Piston gate valve |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Exhaust air function | Without flow control option |
| Manual override | Detenting |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Symbol | 991008 |
| Valve function | 3/2, closed, monostable |
| Operating pressure | 2.5 bar … 16 bar |
| C value | 7 l/sbar |
| b-value | 0.31 |
| Standard nominal flow rate | 1500 l/min |
| Duty cycle | 1 |
| Coil characteristics | 24 V DC: 3.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| Temperature of medium | -10 °C … 60 °C |
| Type of mounting | Line installationWith accessories |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Product weight | 223 g |
| Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT |
| Pneumatic connection 3 | G1/8 |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Pilot air supply port | Internal |
| Electrical connection | Form Cas per DIN EN 175301-803Plug |
| Signal status display | With accessories |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
| Width dimension | 40 mm |
|---|---|
| Structural design | Piston gate valve |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Exhaust air function | Without flow control option |
| Manual override | Detenting |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Symbol | 00991008 |
| Valve Function | 3/2, closed, monostable |
| Operating pressure | 2.5 bar … 16 bar |
| Lap | Overlap |
| C value | 7 l/sbar |
| b-value | 0.31 |
| Normal nominal flow rate (normalized to DIN 1343) | 1500 l/min |
| Duty cycle | 100% |
| Coil characteristics | 24 V DC: 2.5 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Type of mounting | With accessories |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Product weight | 223 g |
| Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT |
| Pneumatic connection 3 | G1/8 |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4], Inert gas |
| Pilot air supply port | Internal |
| Electrical connection | Form C | Plug | as per DIN EN 175301-803 |
| Signal status display | With accessories |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
