| Size | Mini |
|---|---|

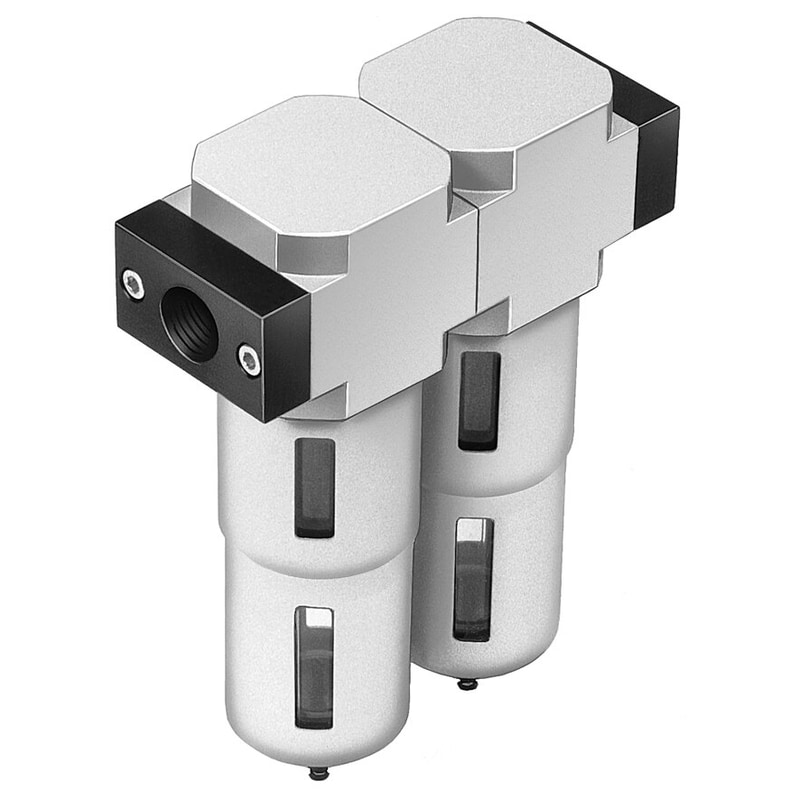

| Type code | LFMBA |
| Series | D |
| Mounting position | Vertical |
| Grade of filtration | 0.01 µm |
| Filter efficiency | 0.999999 |
| Condensate drain | Fully automatic |
| Bowl guard | Metal bowl guard |
| Symbol | 991551 |
| Operating pressure | 1.5 bar … 12 bar |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [6:8:4] |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2]Inert gas |
| Temperature of medium | 1.5 °C … 60 °C |
| Residual oil content | 0.01 mg/m³ |
| Ambient temperature | -10 °C … 60 °C |
| Type of mounting | Line installationWith accessories |
| Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Compressed air filter material | Borosilicate fiber |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
| Size | Mini |
|---|---|
| Series | D |
| Mounting position | Vertical |
| Grade of filtration | 0.01 µm |
| Filter efficiency | 99.9999 % |
| Condensate drain | Fully automatic |
| Bowl guard | Metal bowl guard |
| Symbol | 00991551 |
| Operating pressure | 1.5 bar … 12 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4], Inert gas |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2], Inert gas |
| Temperature of medium | 1.5 °C … 60 °C |
| Residual oil content | 0.01 mg/m³ |
| Ambient temperature | -10 °C … 60 °C |
| Type of mounting | With accessories |
| Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT |
| Note on materials | RoHS-compliant |
| Compressed air filter material | Borosilicate fiber |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
