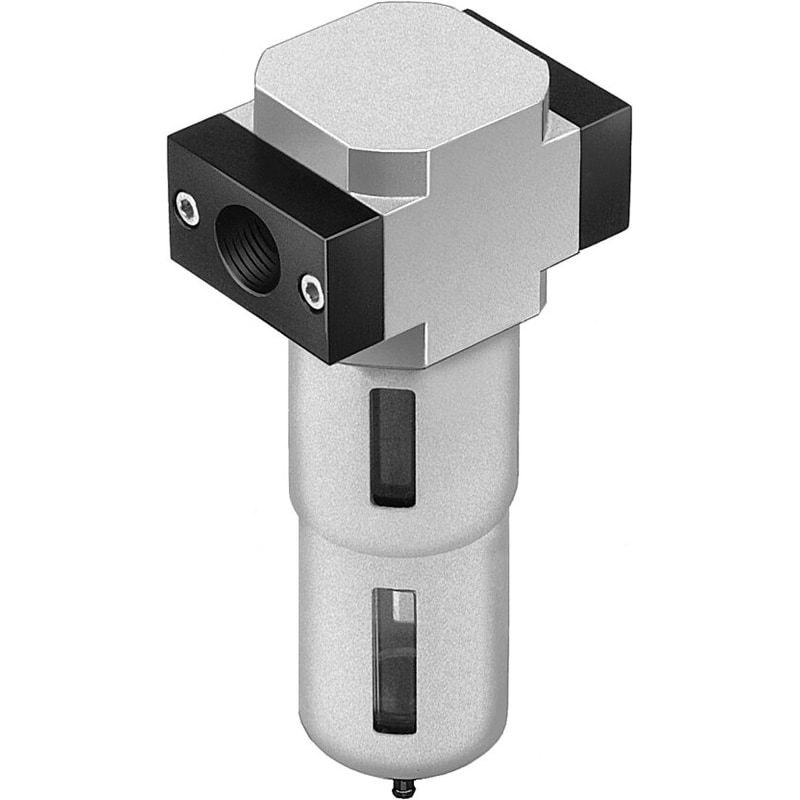

filter LF-3/8-D-5M-MINI-NPT Degree of filtration 5 µm, with bowl guard and manual condensate drain. Size=Mini, Series=D, Assembly position=Vertical, Grade of filtration=5 µm, Condensate drain=manual momentary-contact
| Size | Mini |
|---|---|
| Series | D |
| Assembly position | Vertical |
| Grade of filtration | 5 µm |
| Condensate drain | manual momentary-contact |
| Max. condensate volume | 22 cm3 |
| Bowl guard | Metal bowl guard |
| Operating pressure | 0 … 16 bar |
| Standard nominal flow rate | 1,100 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [6:8:4]Inert gases |
| Medium temperature | ‘-10 … 60 °C |
